Abrites - AVDI Plus Vehicle Diagnostics Interface
€1100.00
- NP4629
- Diagnostic Tools, Programming Tools, Keys, Abrites
Abrites - AVDI Plus Vehicle Diagnostics Interface

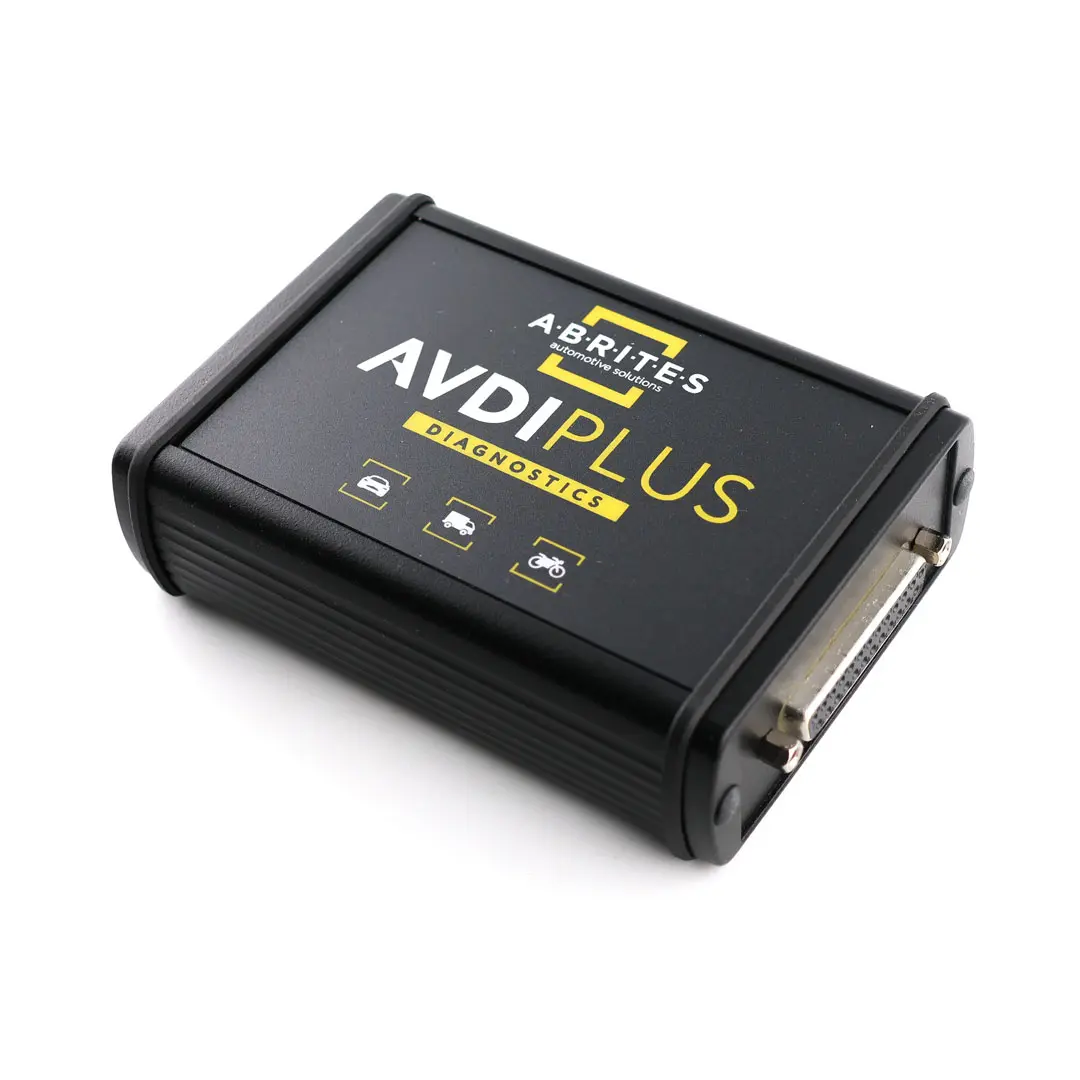

The Abrites Vehicle Diagnostics Interface (AVDI Plus) is the next-generation hardware platform from Abrites, designed for advanced vehicle diagnostics, programming, and module adaptation. As the upgraded version of the renowned AVDI interface, AVDI Plus delivers faster performance, enhanced durability, and expanded connectivity to meet the demands of modern vehicles.

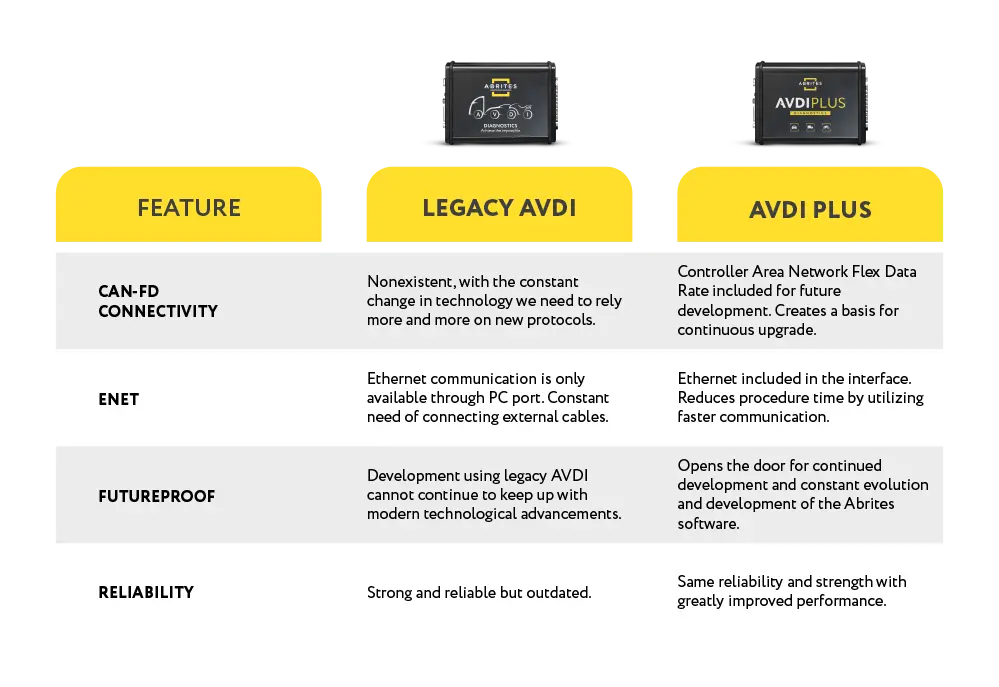

What’s New in AVDI Plus?
-
Support for CAN-FD and Ethernet (ENET): Enables communication with vehicles manufactured after 2018, while retaining legacy interfaces for compatibility with older models.
-
Multi-Channel Communication: Work seamlessly across CAN, K-Line, CAN-FD, and Ethernet simultaneously.
-
Improved Design & Reliability: More robust hardware ensures stable performance under intensive professional use.
Versatile Diagnostic Capabilities:
AVDI Plus serves as the core platform of the Abrites ecosystem, supporting standard and advanced diagnostics for cars, motorcycles, trucks, ATVs, marine, agricultural, and heavy-duty machinery. It offers:
-
Full vehicle scan and module identification
-
Reading/clearing of diagnostic trouble codes (DTCs)
-
Live data monitoring and actuator testing
-
Coding, configuration, and guided functions
-
Advanced brand-specific features, including key programming, ECU and module adaptation, instrument cluster calibration, and airbag renewal
PassThru J2534 Support:
With an integrated SAE J2534 PassThru driver, AVDI Plus can run OEM and third-party diagnostic software such as ODIS, ISTA, Techstream, Xentry, JLR SDD, and more, eliminating the need for multiple tools.
Brand Coverage:
Compatible with over 40+ brands, including:
-
VAG Group (VW, Audi, Skoda, Porsche, Lamborghini)
-
BMW, Mini, Rolls-Royce
-
Mercedes-Benz, Smart, Maybach
-
Toyota, Lexus, Peugeot, Citroën, Renault, Dacia
-
Ford, Mazda, Hyundai, Kia, Tesla, Volvo, Subaru, and many others
Software Functions:
- BR002 - VCINPL B.U.D.S
- BK002 Advanced bike diagnostics, BMW bikes key programming
- BN007 - EBridge tool
- CR007 - Engine Control Unit Flash Manager
- Read/write Data Flash and Program Flash for EDC15C2 and EDC16CP31 ECUs
- DF002 - Key Programming
- EP001 - Bosch EDC17/MED17, Delphi, SIMxx
- EP003 - ECU and TCU Manager
- FN007 - Transponder Maker
- FN008 - Key Learning
- FN011 - BCM Read/Update
- FN012 - BCM and Key Manager
- FN013 - Instrument Cluster Data Manager
- FN014 - Engine Control Unit Flash Manager
- FN017 - PIN and Key Manager for FCA vehicles
- FR005 - Instrument Cluster Module Recalibration
- FR008 – Key Manager, Advanced Diagnostic Functionality
- FR009 – Airbag
- Airbag clear crash data and renew - RCM module with the following processor: XC23xx data flash for FORD/Mazda/JLR and Volvo, as well as TMS470 + EEPROM 25320/25640 for Ford/JLR
- MZ001 - Key programming for Mazda 3/CX-30 2020+
- MZ002 - PATS initialization for Mazda 3/CX-30 2020+
- HK007 - Instrument Cluster, Engine Control Data Manager
- JL002 - Key Learning
- JL003 - Cluster Calibration
- JL004 - Key Learning (DPLA, FK72, HPLA)
- JL005 - Key learning (2018-2020)
- Mercedes Online- CPC modifications by OBDII - VMAX limiter removal/ Exhaust flaps adjustment/ Torque limiter adjustment
- SCN coding is completely done by OBDII by using Mercedes Online (no Xentry online account is required)
- MN002 - Cluster Calibration by OBD (K-Line), Assyst Plus ( Mileage calibration – both SAM module and instrument cluster)
- MN003 – Airbag (Clear crash data from Bosch/Temic/TRW airbags up to 2010)
- MN004 - TV/AUX, Seatbelt, Reverse warning, Gulf states (Enable Video in Motion – either by using Mercedes Offline or Mercedes Online)
- MN005 - Key Programming, Immo read/update (Key programming by dump (DAS 2/2a/2b)
- MN006 - ECU Read/Update Flash
- MN007 - CGW (Central Gateway) Read/Update ConfData (SOFTOUCH activation - switching from semi-automatic to automatic transmission), Gearbox adaptation
- MN008 - SMART Key Learning, Emergency start – models 451, 454 ( Key programming – models 450, 451, 452, 454 ), Cruise control activation
- MN009 - Cluster Calibration for SMART after 2007
- MN010 - Cluster Calibration for S-Class W221/CL W216 and Sprinter, Vito, Viano (after 2006)
- MN011 - CAN Dash Cluster Calibration - W211, W219, W164, W251, W203...
- MN012 - Cluster Calibration - Mercedes, Smart
- MN013 – Airbag – clear crash data
- MN014 - Cluster Calibration in Dash in SMART 2007+ and in SAM module (451)
- MN015 - Cluster Calibration - Mercedes
- MN016 - Cluster Calibration for W204/W212/W207/W197/X204/w218
- MN017 - Cluster Calibration for W220/W215; Read/Update ConfData of W220/W215/W169/W245/W221/W216 (Reflashing and renewal of SAM module and SAM/ECM synchronisation), Cluster calibration and adaptation for vehicles up to 2014
- MN018 - Key Learning (DAS2, DAS2A, DAS2B, DAS3), Virgin ECU, SBC Repair (SBC counter reset), Repair Start Error
- MN019 - Electronic Transmission Control (722.9) and ISM renew ( 7-G Tronic Databse for TCU reflashing)
- MN020 - Instrument Cluster Data Manager ( Mileage calibration )
- MN021 - TV (TV In Motion), ECU, Airbag Manager
- MN026 - Key Programming, EIS/ESL/DAS Manager/7-Gear ETC/ISM/Infra Red and password reader/Personalization/Activation/Coding
- MN028 - Instrument Cluster Data Manager, TV (TV In Motion), ECU, Airbag Manager
- MI002 - Key Learning
- MI003 - ECU Read/Update Flash - Reading of EDC15 engine control units (ECU)
- MI005 - Electronic Control Unit reprogramming ( EDC15 engine control units (ECU) reprogramming)
- MI006 - PIN and Key Manager
- MI007 - PIN and Key Manager
- ON007 - Tech2Win Driver
- ON010 - Engine Control Unit Flash Manager
- RR002 - Key learning
- RR003 - ClioIII, Modus, MasterIII, Logan, Traffic
- RR005 - Key learning
- RR006 - Megane III key learning
- RR007 - Updated SW key learning
- RR008 - Clio IV key learning
- RR010 - Clio IV key learning
- RR012 - Twingo III key learning
- RR015 - Smart 453 key learning
- SB001 - Subaru Key learning and smart system reset
- KT001 - Tag Key Tool programmer 55105509
- KT002 - Key Maker Q7/A6/Allroad
- KT003 - Key Maker Passat B6/CC
- KT004 - Key Maker ClioIII/Duster
- KT005 - VAG Tp22/Tp23/Tp24/Tp25 production
- KT006 - Key Maker Passat B6/CC Keyless
- KT010 - Tag Key Tool
- KT012 - Porsche key learning
- TN004 - Key Programming
- TN005 - Advanced diagnostic functionality. Key programming (Immo Box – mechanical keys – requires ZN039-2)
- TN006 - Advanced key programming by diagnostics (Smart Key programming – requires ZN039-2)
- TN007 - Advanced diagnostic functionality and key programming (Smart Keys programming for models up to 2016/2017)
- TN008 - Advanced diagnostics and key programming
- TN010 - Mileage recalibration
- TS001 - Key Learning Models S/X
- TS002 - Bosch Airbags Read/Write EEPROM/Clear Crash
- VL003 - Instrument Cluster Data Manager
- VL004 - HITAG 2 Key Learning and Central Car Configuration
- BSI Functions: Service interval reset, Clear faults log, Verify/set PIN, Virginize
- Change ID in BSI, Telematics, Airbag, MDS
- Clear crash data in some Airbag modules by dump
- AN002 - Cluster CAN - Calibration
- AN003 - Cluster PIN-CAN - Calibration
- AN004 - Immo panel – Read PIN
- AN005 - Immo panel EDC16 - Read PIN\&CS
- AN006 - Cluster K-Line - Calibration
- AN007 - ECU ConfData – Read ECU EEPROM
- AN008 - Flash Counters
- AN010 - Airbag ConfData – Airbag reset
- AN011 - TV Configuration – TV in motion
- AN012 - EDC16 calibration – mileage in ECU
- AN014 - EDC17 PIN – Read Immo Data PIN\&CS from ECU
- AN015 - Flash Memory ECU – by OBD
- AN018 - Dealer key learning Q7- spare key (2006 - 2008)
- AN019 - Prepare Dealer Key Q7 – spare key (2006 - 2008)
- AN021 - ME7 ConfData – read and write ECU EEPROM all by OBD
- AN023 - VW Crafter – Read/Write ECU ConfData, Key learning, ECU and Immobilizer Diagnostics, Remote Control Diagnostic, ECU ConfData in Direct Mode, ECU Adaptation (Autodetect/Manually enter ECU PIN/CS)
- AN024 - Key learning for EDC16 models – If PIN and CS are known
- AN025 - EDC16/MED9/Simos PIN/CS – Read Immo Data
- AN026 - Dealer key learning
- AN027 - Q7 2008+
- AN028 - Cluster CAN UDS
- AN029 - IMMO Data Immobiliser/ECU
- AN030 - Key Adaptation (All VAG Models)
- AN031 - Dealer Key Preparation – Models up to 2012
- AN032 - Security code by CAN
- AN033 - ECU ConfData (EDC15, ME7.x.x) – Read ECU EEPROM by OBD
- AN034 - Cluster - PIN/Calibration – K-Line – Mileage for all Models up to MY 2006
- AN036 - Airbag (K-Line/CAN) – Airbag reset for models up to MY 2008
- VN003 VAG key learning special function
- VN012 - Security data extraction for VAG vehicles with Magneti Marelli 9GV ECU
- VN013 - ECU authorization for all Immo 3 and Immo 4 vehicles
- VN015 – Odometer recalibration for VAG vehicles
- VN018 – Advanced diagnostics for VAG vehicles
Hardware & Connectivity:
-
Dimensions: 13 x 5 x 25 cm
-
Weight: 0.6 kg
-
Power Supply: 8–30V DC via OBDII
-
Protocols: K-Line ISO9141, ISO14230, SAE J1850, CAN, CAN-FD, ENET, J1939, RP1210
-
USB PC Interface with firmware updates
-
TÜV Rheinland certified, GS certified, and compliant with EU standards

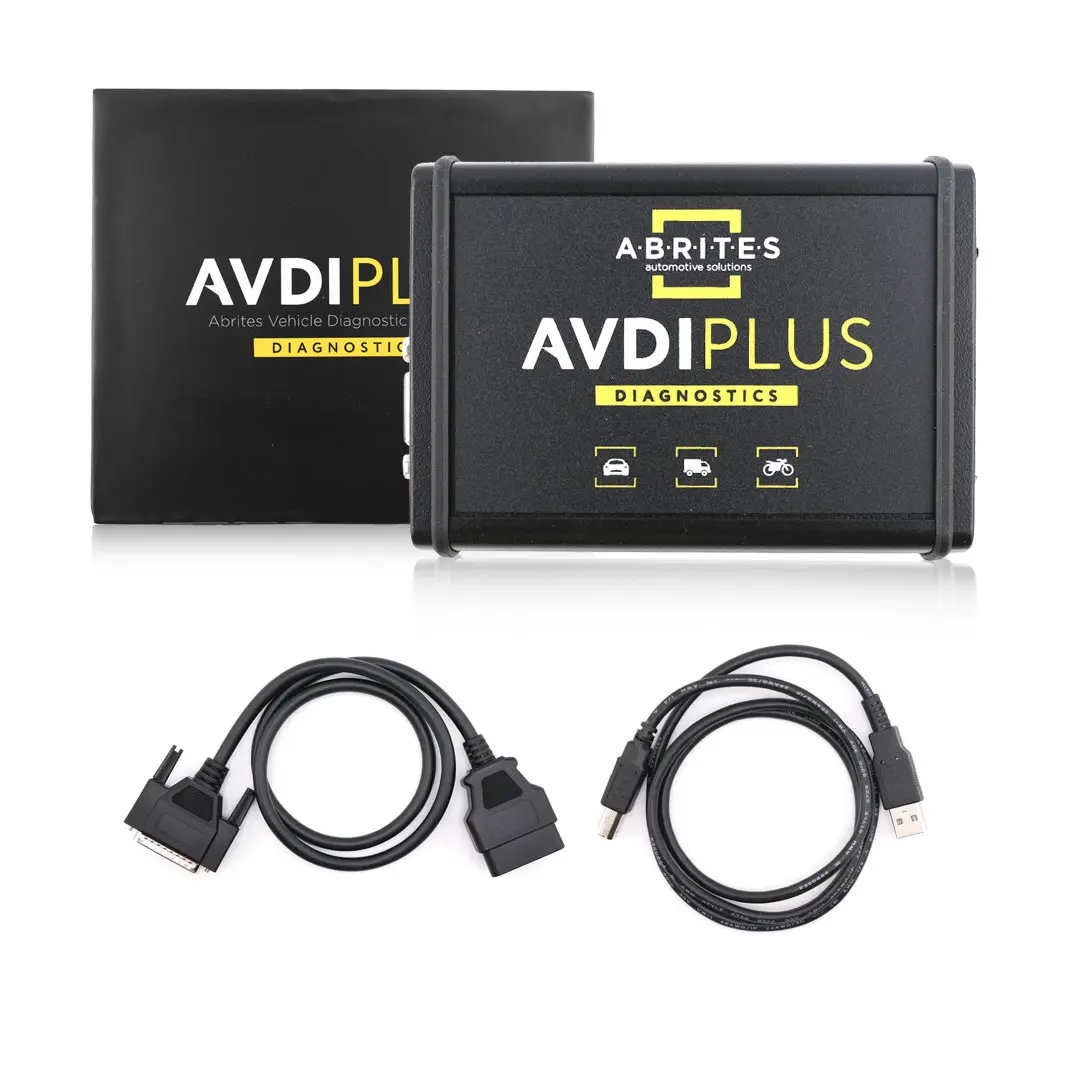

Included in the Package:
-
Base Software
-

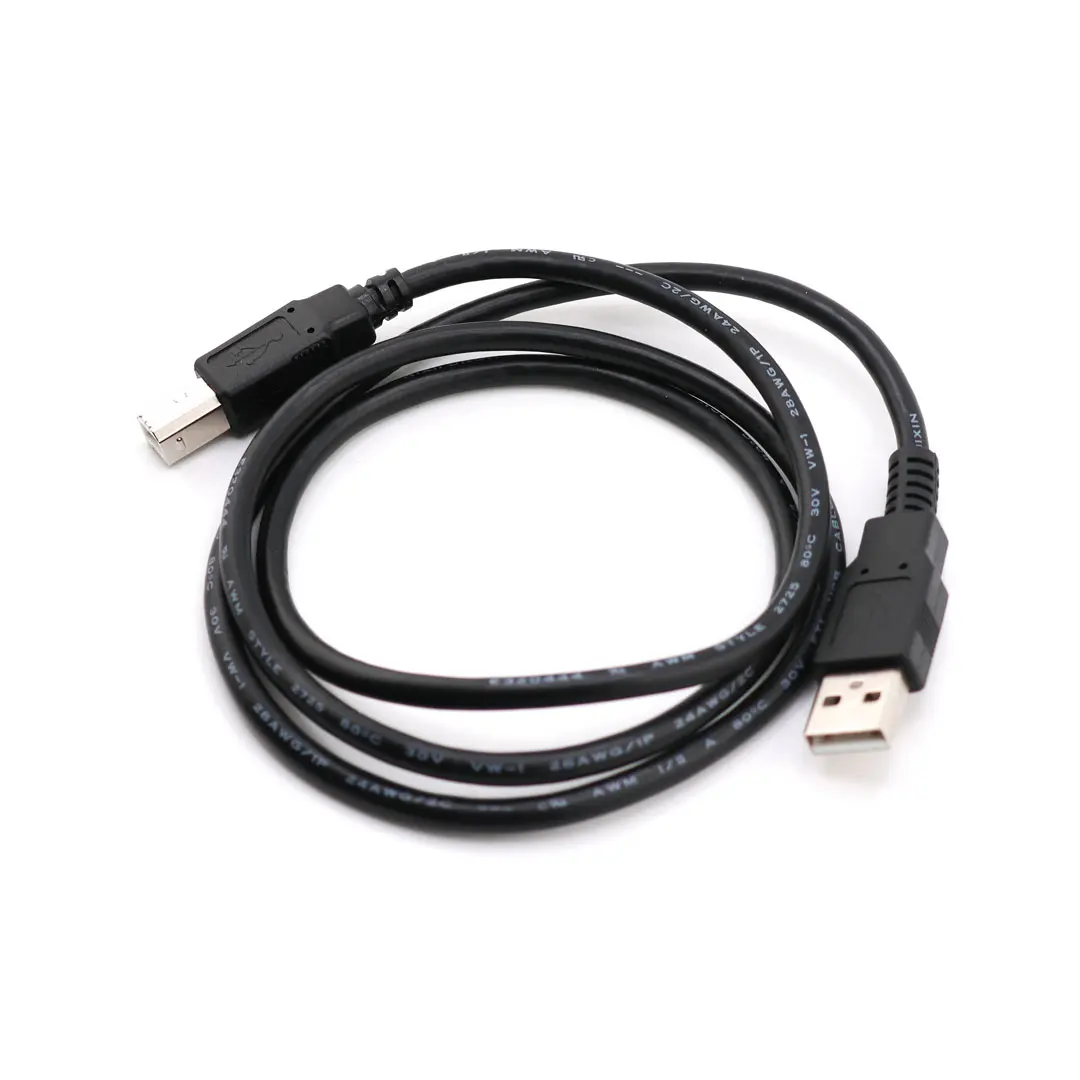

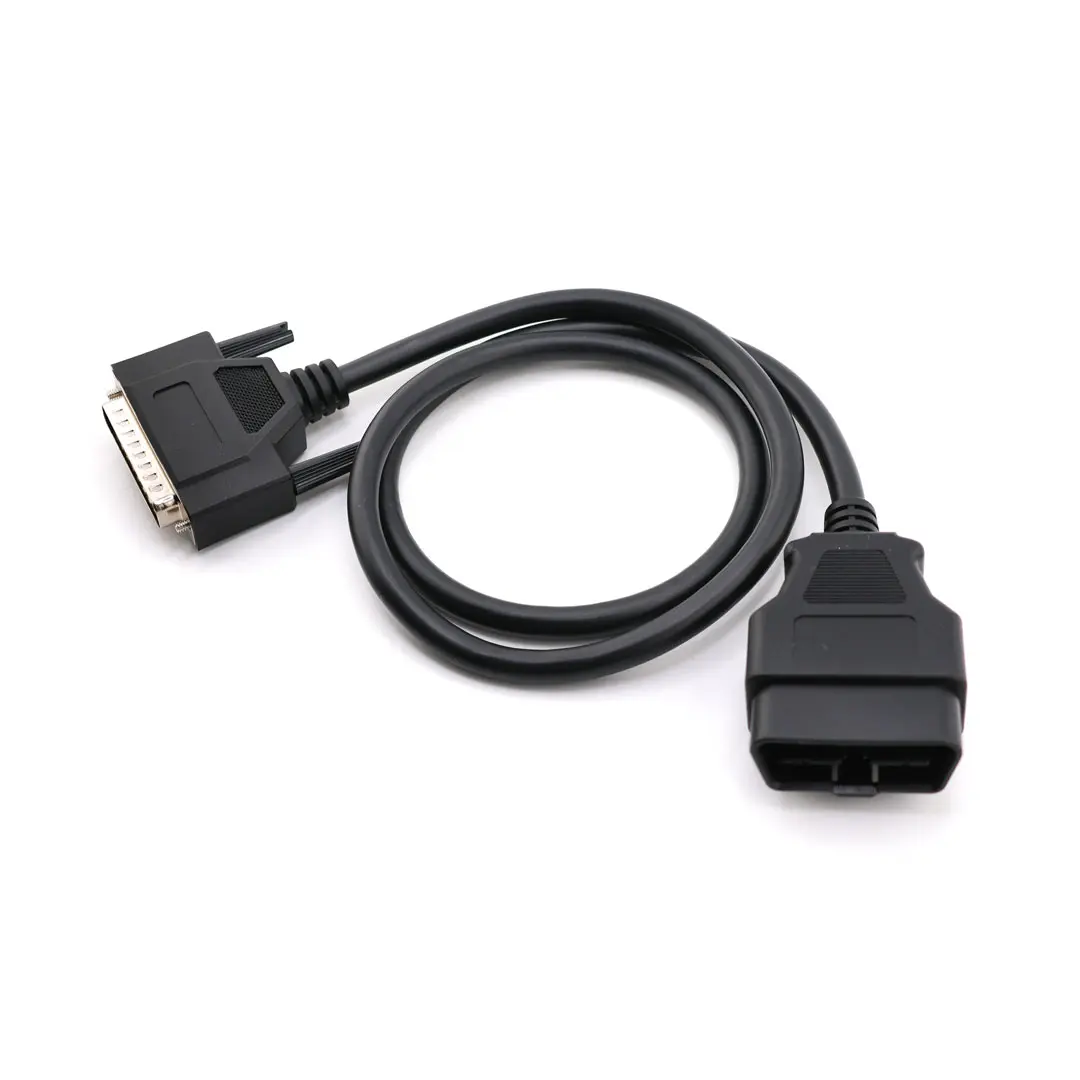

USB Interface with OBDII and USB cables
-
Annual Support Plan+ & Interface Replacement Subscription
Warranty:
2-year warranty covering defects in materials and workmanship under normal use.
AVDI Plus is a powerful all-in-one diagnostic solution, future-proofed for modern vehicle technologies while maintaining backward compatibility.
