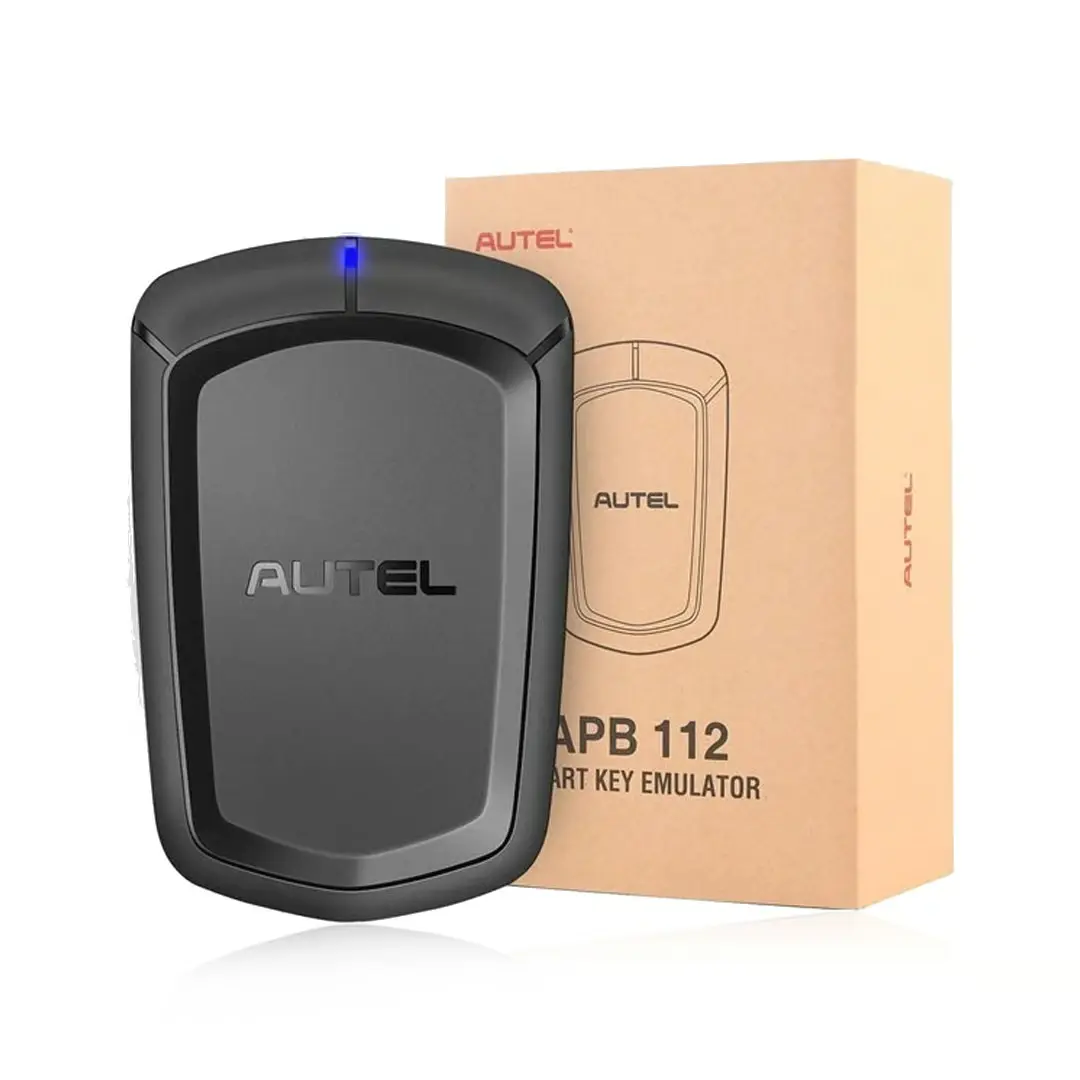

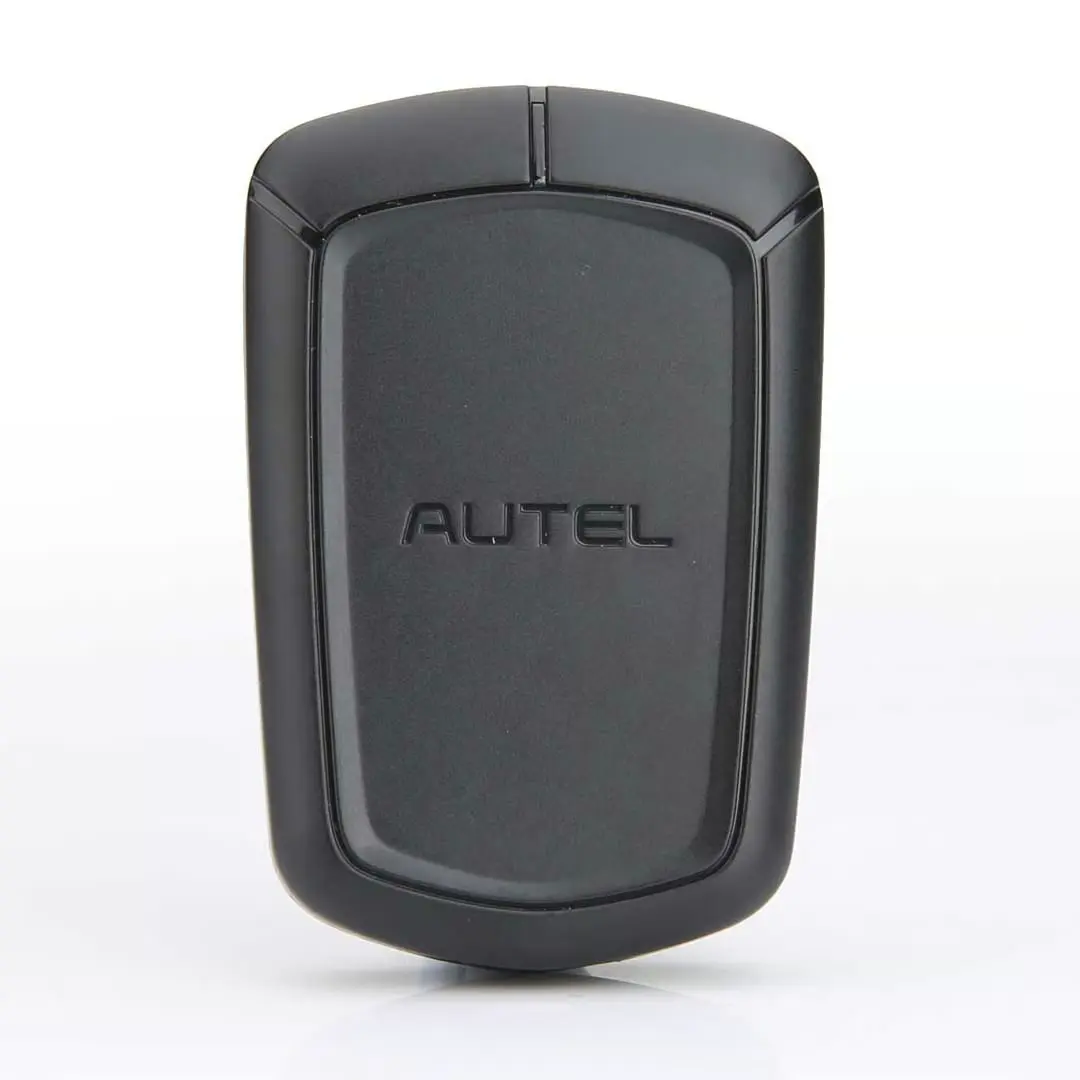

Autel APB112 Toyota Smart Key Simulator

Autel APB112 Toyota Smart Key Simulator

The Autel APB112 Smart Key Simulator is an original AUTEL key emulation device designed to work with Autel MaxiIM diagnostic platforms. It is mainly used for smart key data collection, chip decoding, password calculation, and key chip simulation, especially for Toyota and Lexus smart key systems. The APB112 collects data from the vehicle’s ignition coil, helps identify ignition coil issues, decodes key chip data, and simulates various transponder chips to assist in key programming and all-key-lost situations.

Key Features:

• Original AUTEL APB112 Smart Key Simulator Emulator

• Must be used with Autel Diagnostic Devices

• Not compatible with XP200

• Do not disconnect USB cable during operation

• Compact design, works together with XP400

• Compatible with MaxiIM IM608, IM508, MX808IM

IM508 requires XP400 to work with APB112

What the Autel APB112 Can Do:

• Smart key simulation and emulation

• Collects data from the ignition coil

• Identifies ignition coil faults

• Decodes vehicle key chip data

• Simulates vehicle key chips (e.g. 4D chip)

• Supports 46 / 4D data collection

• 46 smart key password calculation

• 46 chip simulation

• Toyota 4D (94/D4, 98) smart key simulation

• Toyota H (88/A8, A9, 39) smart key simulation

• Toyota / Lexus smart key all keys lost solutions

• Chip decoding (Hyundai 46)

• Must be used with an Autel diagnostic tool

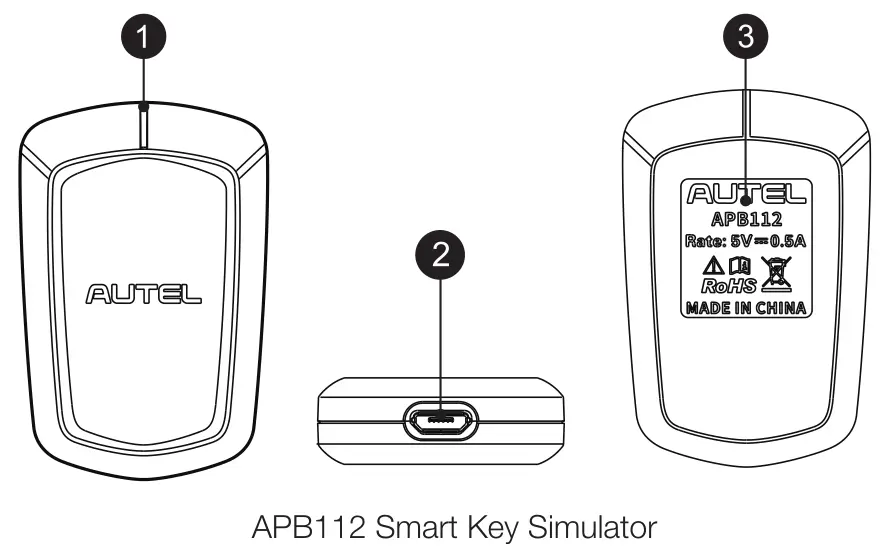

Product Display:

1. Status Indicator

• Solid Blue: Power supply working normally (default state)

• Flashing Green: Data communication in progress

• Flashing Red: Upgrading status

• Solid Red: Boot status

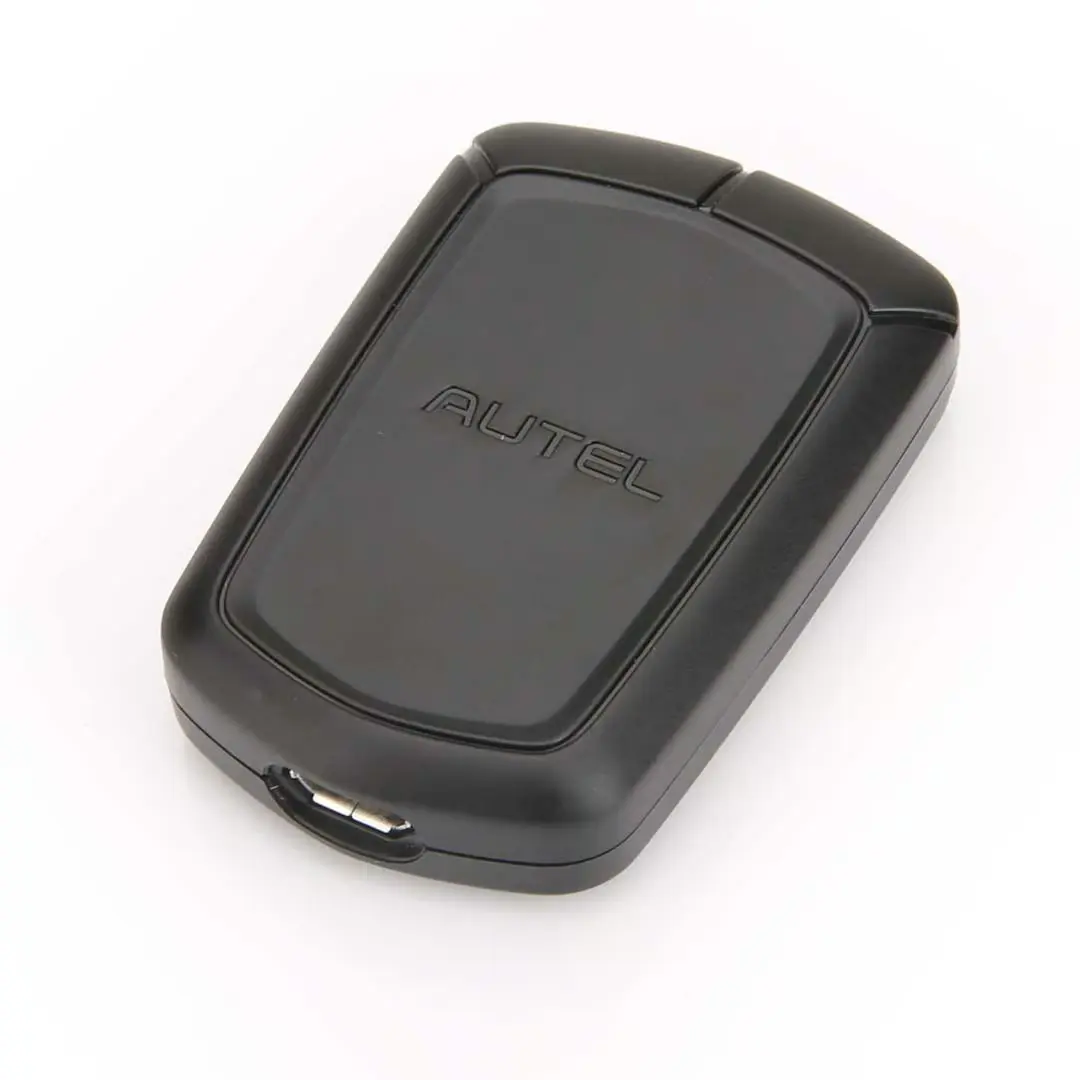

2. USB Interface

• Provides power supply and data communication

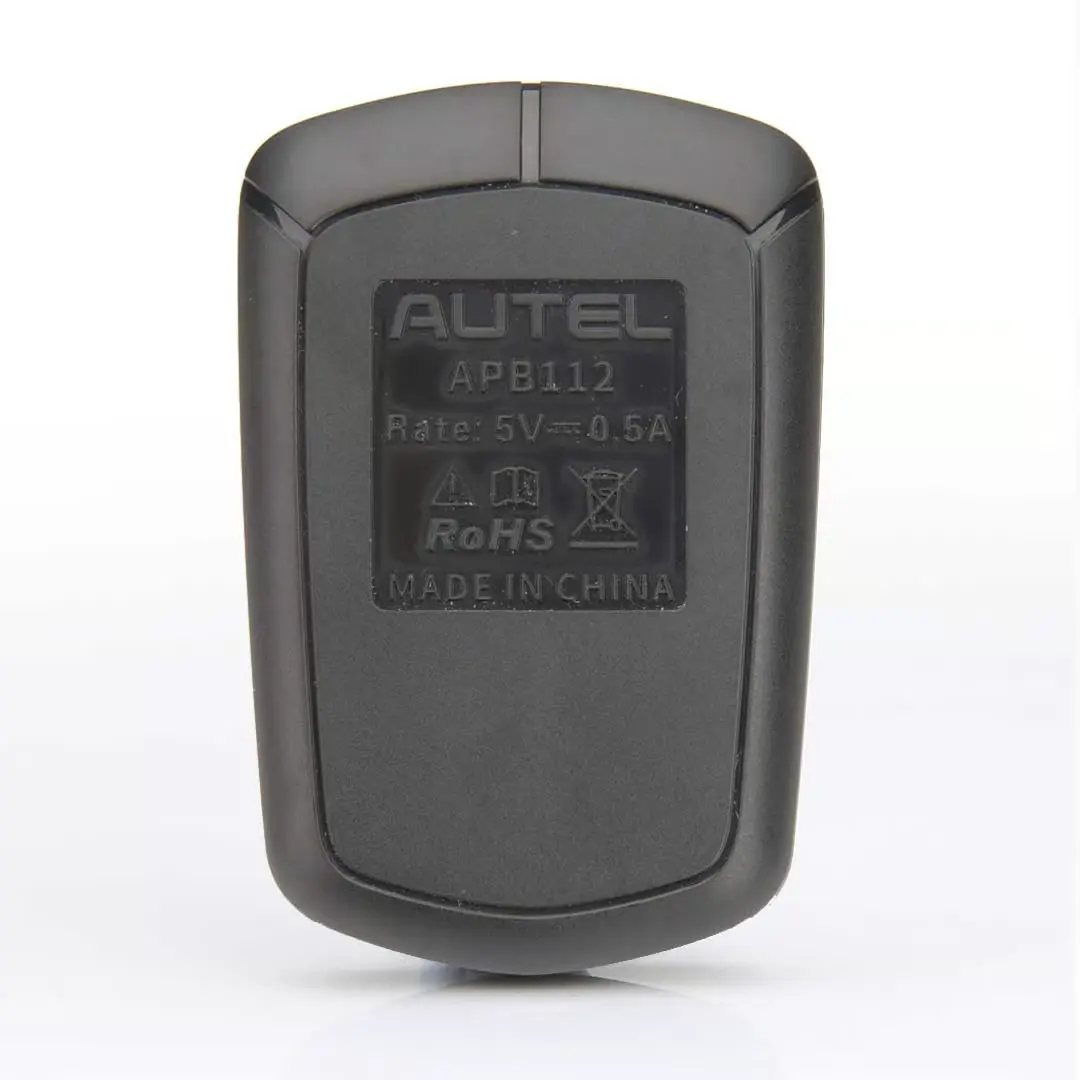

3. Product Information Label

How the Autel APB112 Works:

1. Connect the APB112 to a compatible Autel diagnostic device using the supplied USB cable.

2. The status indicator will light solid blue, confirming normal operation.

3. The device automatically communicates with the diagnostic tool.

4. The APB112 application upgrades automatically based on the selected vehicle system.

5. Place the simulator close to the ignition coil to collect data and decode the chip.

6. After decoding, original vehicle chip data can be copied and simulated.

7. Emulator chip types can be expanded through future upgrades.

Precautions:

• The APB112 Smart Key Simulator needs to be used together with the Autel Diagnostic Device.

• Do not disconnect the USB Cable when using

Package Contents:

• 1 × AUTEL APB112 Smart Key Simulator

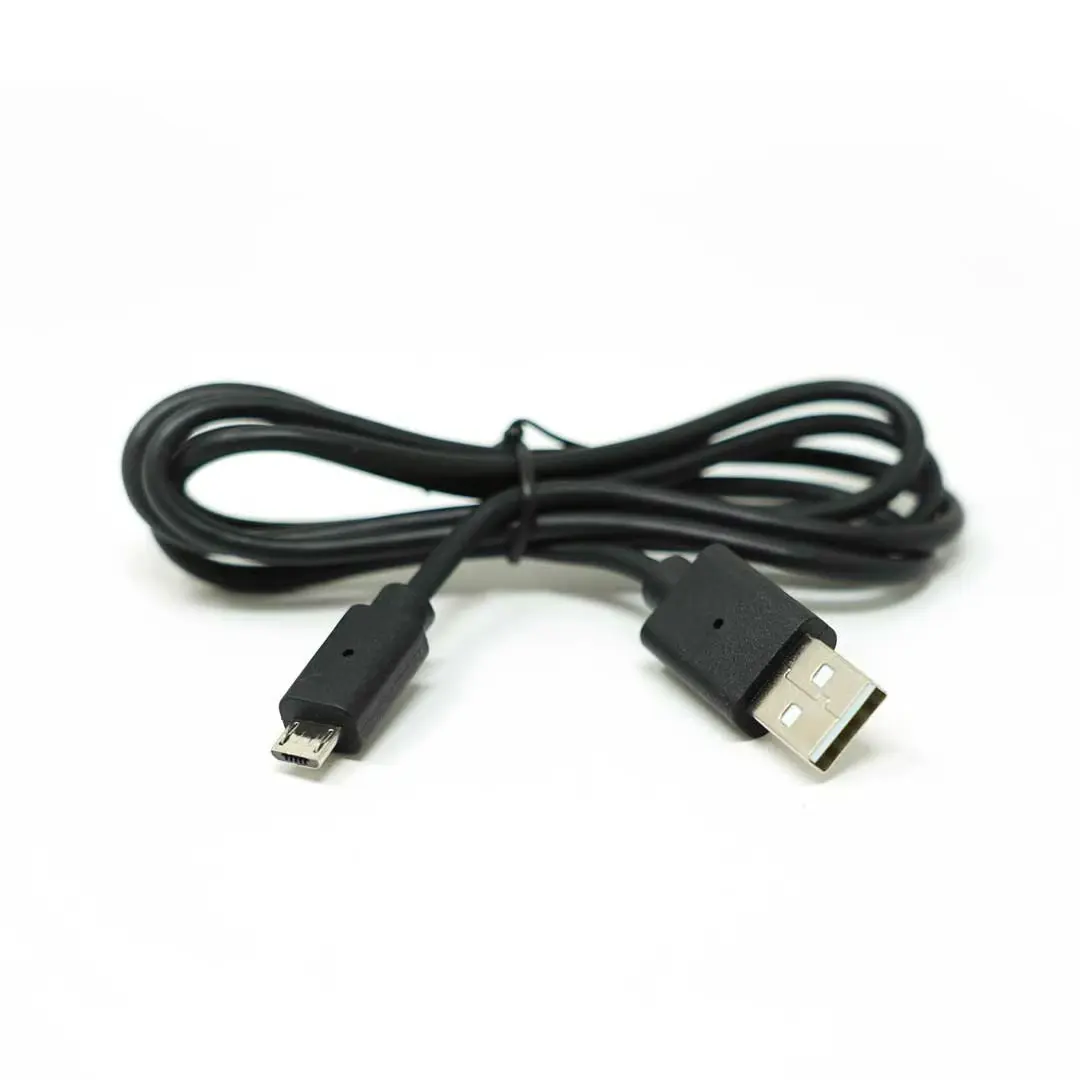

• 1 × USB Cable

• 1 × Quick Reference Guide
