Autel - MaxiSys MS906S

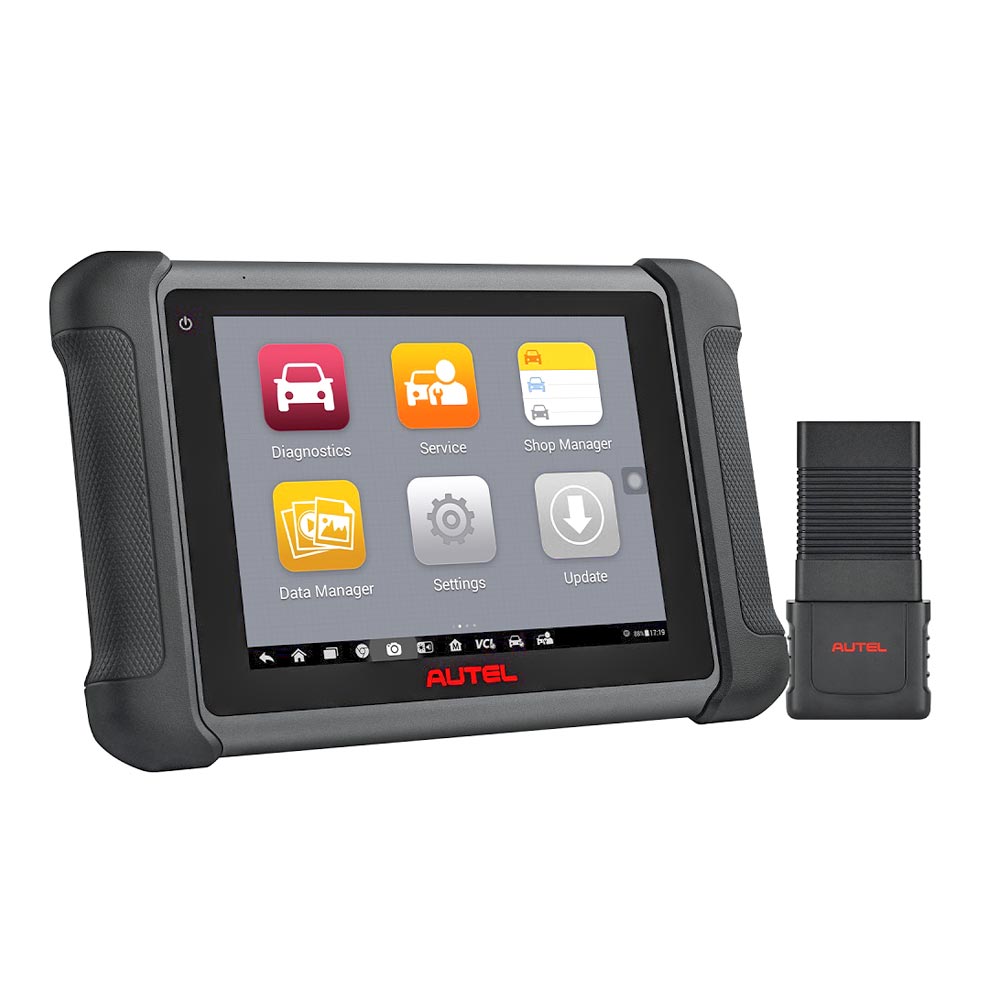

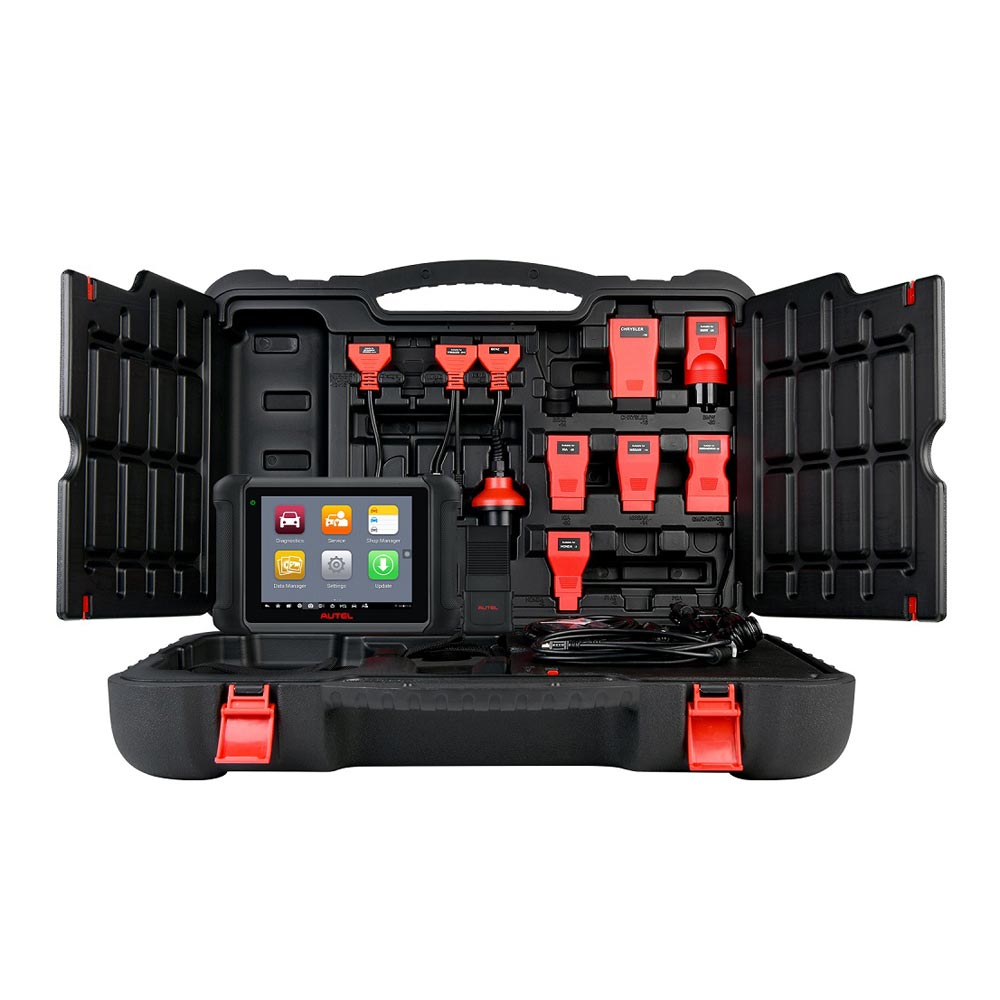

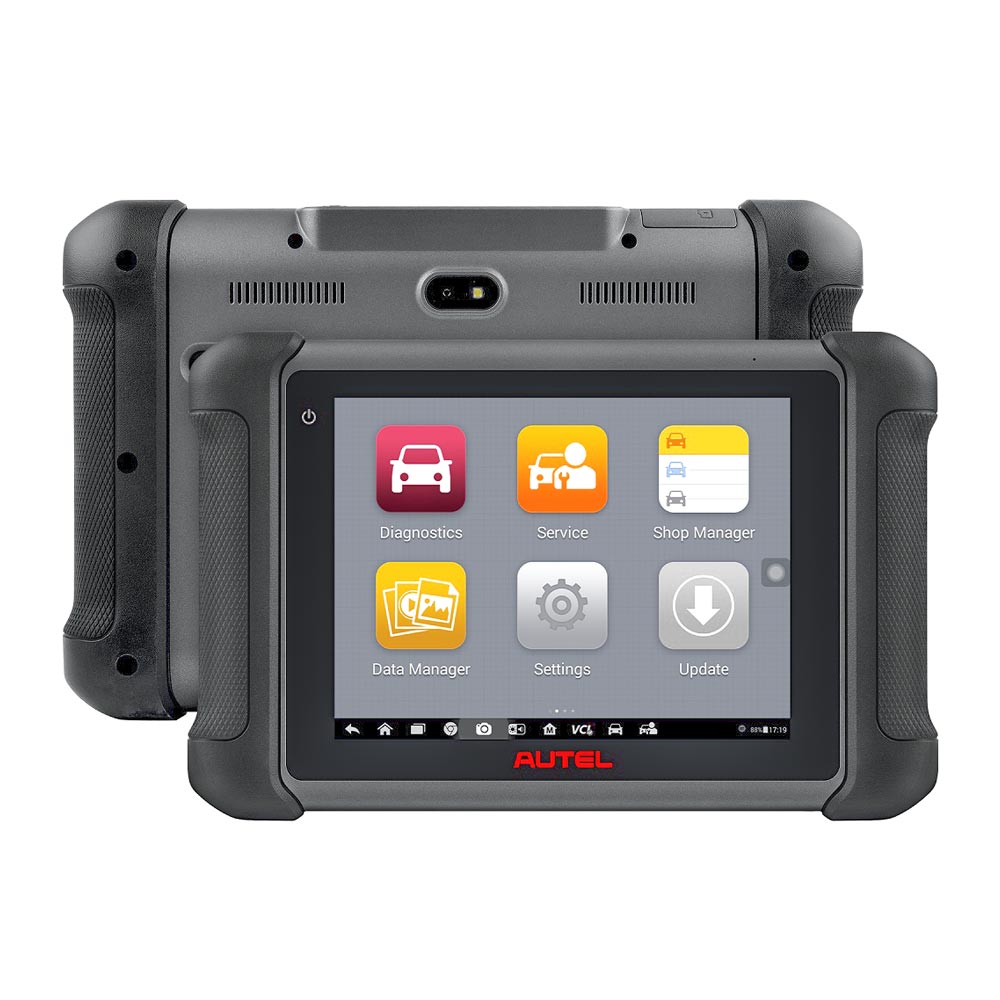

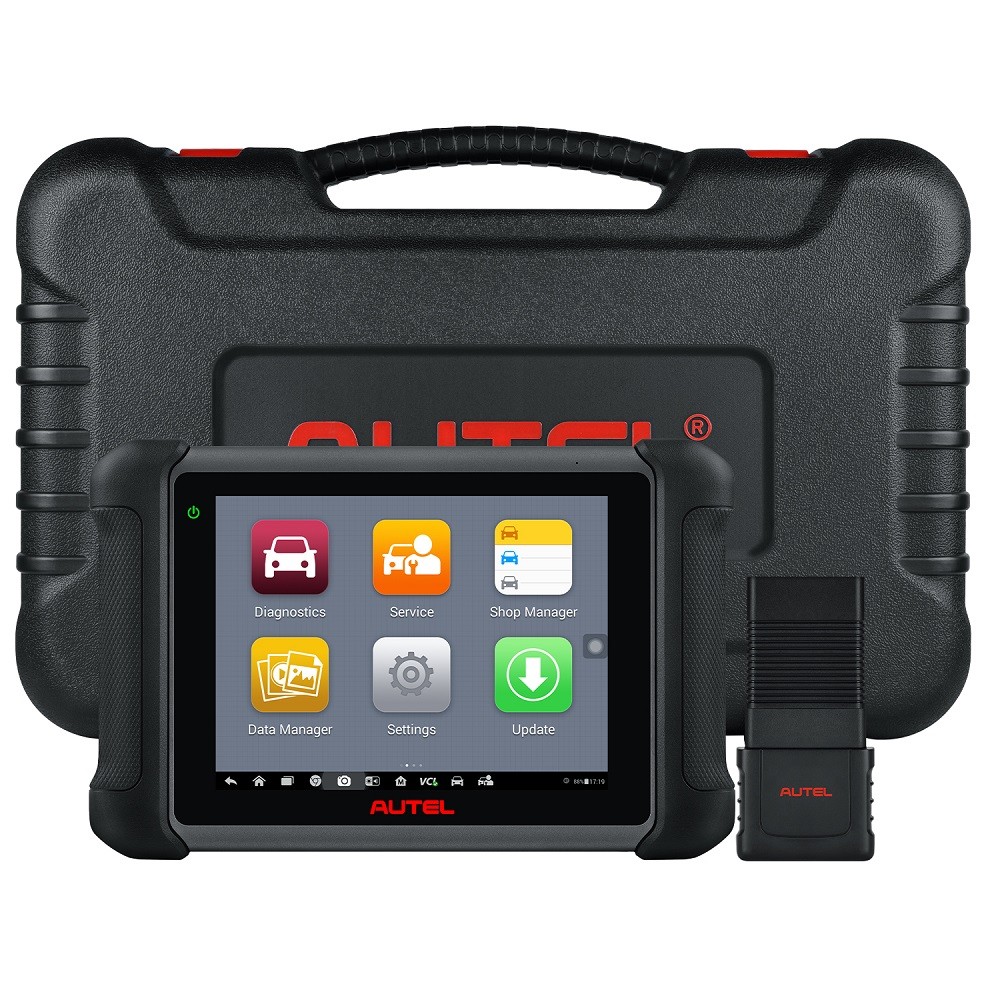

The Autel MaxiSYS MS906S is an 8-inch touchscreen Android-based advanced diagnostic tablet powered by a Hexa-core processor. It features 64GB memory and the Bluetooth-enabled VCI Mini with an extension for easier OBDII port attachment. The MS906S features advanced diagnostics including active tests and bi-directional controls. Features include Scan VIN optical VIN/barcode recognition for quick vehicle identification, FCA Secure Gateway Access with AutoAuth subscription, Pre/Post-SCAN customizable reports, and forthcoming Cloud Data management and Repair & Diagnostic Database. The MS906S is packaged in a blow-molded case and includes free technical support and one-year free software updates with a one-year limited warranty.

Autel MaxiSYS MS906S OBDII Diagnostic Scan Tool Supports ADAS:

Autel MaxiSys MS906S is an advanced diagnostic tool developed for mechanics looking for a scanner with an ultra-convenient and modern design while delivering ultimate performance. Featuring the Samsung 6-core processor, an 8.0 inch LED capacitive touch screen, an Android multitasking operating system, and exceptional OE-level diagnostics, this diagnostic scanner MS906 is absolutely an ideal solution to manage your repair jobs smartly and conveniently with greater integration.

The MS906S features advanced diagnostics including active tests and bi-directional controls.

Features include Scan VIN optical VIN/barcode recognition for quick vehicle identification, FCA Secure Gateway Access with AutoAuth subscription, Pre/Post-SCAN customizable reports, and forthcoming Cloud Data management and Repair & Diagnostic Database. The MS906S is packaged in a blow-molded case and includes free technical support and one-year free software updates with a limited warranty.

They will have similar diagnostic functionality to the MS906BT and MS906TS. But they have the below addons that will make the difference with the new line of tools Autel has been releasing:

• Upgraded Hardware and Software
• ADAS Calibration Capability and Adas Identification in scans
• Ability to connect with a variety of our new battery testing equipment.
• Text or Barcode Recognition with the camera.
• As well as access to our Cloud Services that will be released in the future.

Functions:

• OE-Level All System Diagnosis

  With a wide range of capabilities, the MS906 will let you do more repair work quickly and easily. Look what this diagnostic scan tool will bring to you.

  1). Retrieve ECU information of tested control units including unit type, version numbers, and other specifications;
  2). Read all kinds of DTCs from the vehicle's control systems to locate problem areas, and offer possible solutions;
  3). Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
  4). Live data of each parameter item displayed in analog, text, waveform graph, digital, or full-screen display modes;
  5). Active test used to access vehicle-specific subsystem and component tests.

• Advanced ECU Coding: Powerful & Cost-Effective

  Autel MaxiSys MS906S allows you to enjoy the same ECU coding functions

  ECU Coding: Compatible with Volkswagen, BMW, Seat, Porsche, Renault, etc.
  Reprogram the adaptive data for certain components after repair or replacement.
  Flash the hidden features(auto start-stop, reverse tilt mirrors, foldable mirrors, customizing interior lights, etc.).
  Customize the OE settings(setting alarms, doors locking, etc.).
  Enhance the vehicle performance(provide a solution for power loss, fuel efficiency, etc.).
  Online ECU Coding: Compatible with Volkswagen, BMW, Seat, Porsche, etc.
  Obtain the online data from the server and no need to match ECU manually.
  Code your car fast and easily via the Internet to solve your car’s problems.
  Restore the vehicle's functional status after replacing the onboard modules.
  ECU Module Replacement: Compatible with Asian cars like Honda, Nissan, Toyota, Hyundai, Kia, etc.
  Introduce the new ECU module replacement to the car system and make the cars run smoothly.

• Various Maintenance & Reset Services: Win You More Business

  As one of the newest Autel scanners in 2022, Autel MS906S has gone through thousands of tests on various car models including some of the latest models in 2021. Autel MaxiSys MS906S features comprehensive vehicle maintenance options like Reset, Relearns, Adaptations, Initialization, and Matching to help mechanics, technicians, and repair workshops to win more business.

  1). Oil Reset: Turns off the oil light reset and service mileage as well.
  2). EPB: Finds fault in the brake pad system.
  3). SAS: Performs steering angle adjustment and clears steering sensor fault memory.
  4). BMS: Perform battery management reset in case of a new battery.
  5). DPF: Diagnoses the exhaust system to stabilize the filter performance.
  6). Throttle Adaptation: Adjusts the throttle position to control the intake air volume.
  7). EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
  8). Suspension: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
  * VW & Audi Guided Functions: Even a DIYer can perform some complicated functions according to the prompt of the scanner step by step via this function.
  * VW & Audi Customization: You can use this function to fold the rearview mirror, get a multi-function steering wheel and atmosphere lamp, etc.

• User-friendly Functions & Tech Support APP

  1) Remote Desk: What if I have some issues operating the MS906S? No worries, Autel MS906S allows remote desk help. By working with TeamViewer, a mechanic or an Autel Support can operate your tablet by remote control to help troubleshoot the question.
  2) Data Logging: Keep records of all sent and unsent data logs in the diagnostic system
  3) MaxiFix: Gives you access to a vast database of repair and diagnostic tips along with proven field fixes
  4) Data Printing & Sharing: Convenient diagnostic report generation, storage, print & sharing (Via E-mail)
  5) Academy: Autel provides tutorials and technical bulletins written by top-notch technicians and product experts
  6) Remote Expert Services: support remote expert service with which you can get high stability and low latency expert guidance without additional equipment and with software upgrades

Autel MS906S Features

[ 2022 Newest Version Autel MaxiSys MS906S ]:

Updated from MS906, with the same function as MS906BT but a more advanced configuration, Autel MaxiSys MS906S diagnostic tool comes with Bluetooth diagnoses, 10,000mAh battery, 64G memory, advanced ECU coding, 10,000+ car models worldwide, bi-directional control, 31+ reset functions, and more to rival Autel scan tool MS906BT yet being much cheaper! Providing 24*7 technology support & online reply, to remove all your doubts.

[ 31+ Special Functions, Comprehensive Scan Tool] :

Autel MS906S Bluetooth scanner is loaded with 31+ reset functions for in-depth and comprehensive repairing & maintenance (oil reset, TPMS, ABS, EPB, SAS, injector coding, BMS, suspension, etc ). Autel diagnostic scanner MS906S can be involved in 99% of auto maintenance matters, mainly due to its 99% of vehicle coverage worldwide and vehicle-specific 12 adapters for non-OBD2 models. Best for repair shops, techs, garages, etc.

[ Updated Coding Functions, Top Auto Scanner ]:

As an upgraded version of the MS906 car diagnostic scanner, the Autel MS906S OBD2 scanner features ECU coding that allows you to reprogram the new ECU, unlock hidden functions, customize car OE settings, enhance vehicle performance, etc. It has foldable mirrors, reverse tilt mirrors, auto start-stop, seat belt warning sounds, and more in one. Note: Function menus vary by vehicle’s make, model, and year.

[ All System Diagnostics Scanner + Bi-Directional Control Scanner ]:

Provides you with one-stop diagnoses, read/clear codes, view live data, troubleshoot hidden problems, and restore vehicle performance. MS906S automotive scanner scans all the systems and offers OE-level diagnostic instructions (comparable with snap-on tools). Its bi-directional control function, is widely used on windows & doors, headlamps, and windscreens to quickly pinpoint problems and save diagnostic time.

[ 2022 Newly-added Functions + 100% Original Product ]:

2022 version Autel OBD1&OBD2 scanner MS906S has added some practical functions to optimize the products and user experience:

1) Bluetooth Diagnostics;
2) Component Matching;
3) Online Account Login Service;
4) Guided Functions;
5) Anti-theft IMMO;
6) Power Balance;
7) Flash Hidden Functions.

Parameters:

• 8-inch Wireless Touchscreen Diagnostics Tablet
• Compatible with US, Asian, and European Vehicles, 1996 and newer
• Advanced Diagnostics, Bi-Directional Control, and Active Tests
• Bluetooth VCI Mini with extension for easier OBDII port connection
• Android 4.4, Hexa-core Processor, 64 GB Memory
• Expansive Service Function Menu
• Scan VIN optical VIN/barcode recognition for quick vehicle identification
• FCA Secure Gateway Access with AutoAuth subscription
• Pre/Post Scan Reports
• One-year free software updates with a one-year limited warranty
• Support Multi-languages.

Please note:

- The ms906s does not display Topology.
- Nissan 16+32 ByPass Cable adapter required for Nissan Sentra 2020 and newer models.
- CAN FD Adapter required for GM and Ford vehicles using the CAN FD.

Coverage

The MS906s covers domestic, Asian, and European vehicles (1996 to present) and includes a 1-year update subscription. Coverage details for vehicle diagnostics (select "MaxiSys ms906s" from the list.)

Specifications:

Comparison:
