Autel - MaxiSYS MS908CV OBD2 Heavy Duty Diagnostic Scanner

MaxiSYS MS908CV OBD2 Heavy Duty Diagnostic Scanner

As a new member of Autel’s MaxiSys family, the MaxiSys MS908CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe, and Asia. Offering advanced features and extreme ease-of-use, MaxiSys MS908CV is the ideal solution for independent repair shops, owner-operators, and various-sized fleets seeking a single scan tool for all their professional heavy-duty needs.

Scanner Hardware:

• Extraordinarily powerful Cortex-A9 quad-core processor
• 9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
• Internal reliable and fast 32GB Solid State Drive for better performance
• Built-in 5-megapixel rear camera with autofocus and flashlight
• Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
• Unique shop tough ergonomic design features strong rubber protection and housing
• Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
• USB, audio, and auxiliary ports make it easy to connect accessories
• The VCI connects to the main unit wirelessly with up to 230 metersof  working range

Scanner Software:

• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Extensive vehicle coverage for more than 80 US, Asian, and European commercial vehicle makes and machines
• Complete capabilities for codes, live data, actuation tests, and  adaptations
• Displays live data in text, graph, analog, and digital gauge for easy data review and analysis
• Configures display options, sets triggers, records, and playback results with one touch
• Records and plays back live data to pinpoint troubles of sensors and components
• Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes
• Remote technical support for convenient demonstration, training, and increased customer satisfaction
• Prints out recorded data anytime and anywhere with Wi-Fi technology
• Automatic Wi-Fi updates available in new software releases

Scanner Functions:

• Oil Maintenance Light Reset: Re-calculate the optimal oil life change interval.
• Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
• Injector Coding: Write the new injector code into the car system for the correct cylinder injection quantity.
• Electronic Parking Brake Reset: Help replace and reset the brake pad.
• ABS Bleeding: Help exhaust the air in ABS in an easy way.
• Throttle Matching: Initialize the throttle actuators to the default state.
• Battery Matching: Register the battery after replacement
• D-P-F Regeneration: Help remove the particulate matter to keep the trap stable.
• Tire Pressure Reset: Reset the tire pressure.
• Suspension Level Calibration: Adjust the vehicle body height sensor for level calibration.
• Headlight Matching: Initialize the adaptive headlamp system.
• Gearbox Matching: Help complete the gearbox self-learning to improve gear shifting quality
• Sunroof Initialization: Initialize the sunroof to be locked off or closed.

What You Can Do with MS908CV???

For example, you can activate and pressurize the fuel pump by merely sending a command from the scanner to the car’s computer. Using an actuator test, a technician can actuate a variable valve timing solenoid and observe a change in the audible note of the engine and/or a change in engine speed. The active test or bi-directional control can be used to see if all the warning lights are still functioning, if all solenoids are still working, and if all the functions of your car are still up to par (e.g. interval of windshield wipers).

OE-Level Systems Diagnoses for 80+ Makes Around the World:

Professional auto scan tool Autel CV is one of the most versatile diagnostic scanners that you will ever come across. It is compatible with more than 150 US, Asian, and European light trucks, medium trucks, heavy-duty truck makes, and 150+ brands. In addition, it can access all available systems in these vehicles. So, if you’ve got a busy car repair shop that deals with all kinds of vehicles, this will be a good investment for you. Through real-time push and automatic system updates, the covered models will be continuously updated and expanded. Below are the systems for your reference:

• PCM (Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more…
• Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS, and more…
• BCM (Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head-up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition. Electric Windows, Telephone, and more…
• Electrical System: Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information/entertainment system
• Supported Protocols: SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL

Specifications:

Comparison MaxiSys Elite - MaxiSys CV - MaxiSys MS908S Pro - MaxiSys MS908S - MaxiSys MS908TS - MaxiSys MS908BT - MaxiSys MS906 :

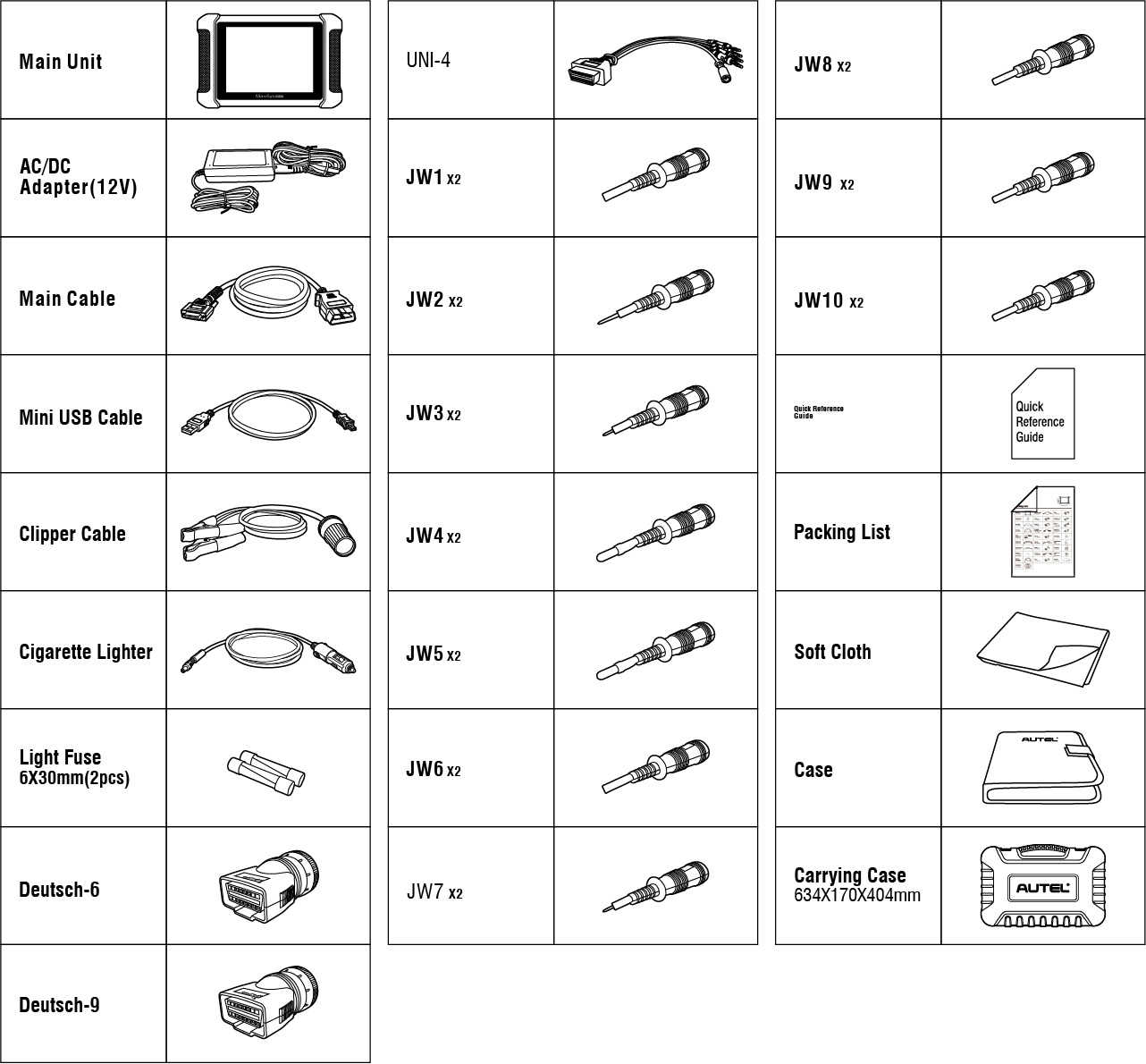

Accessories:
