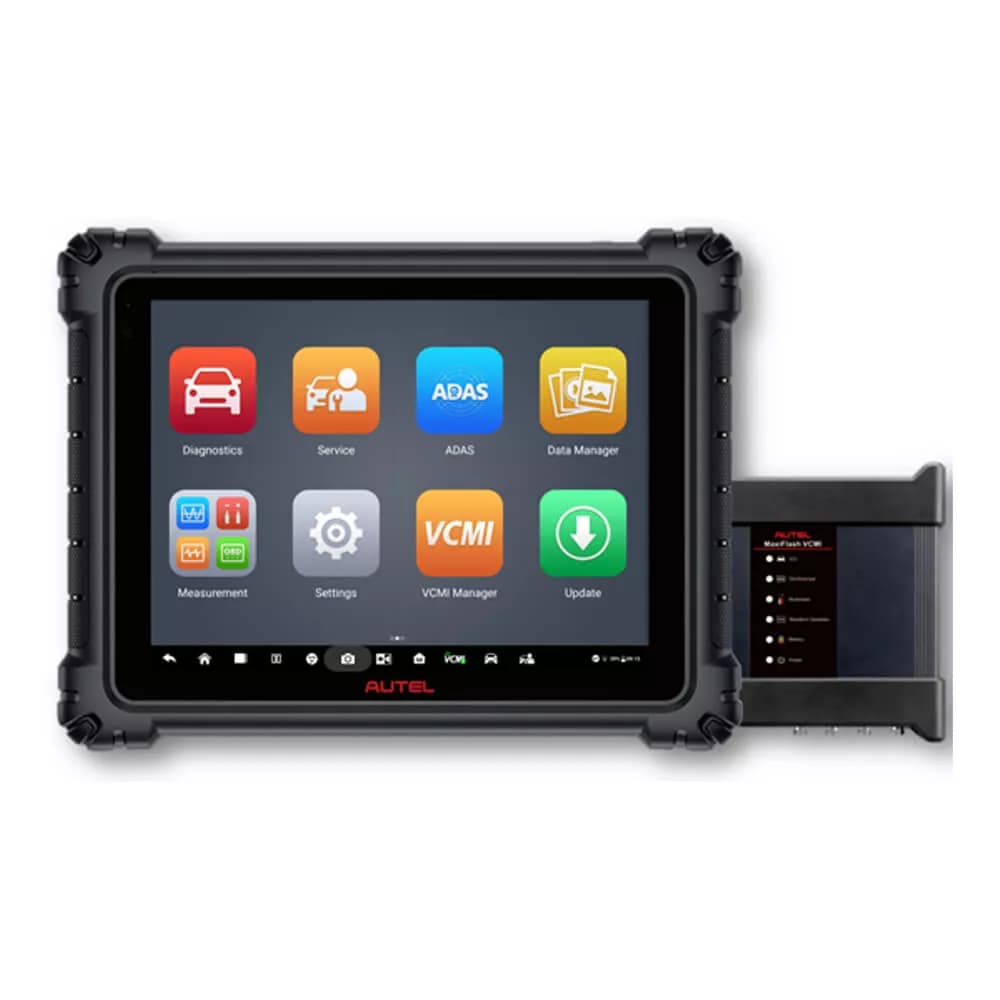

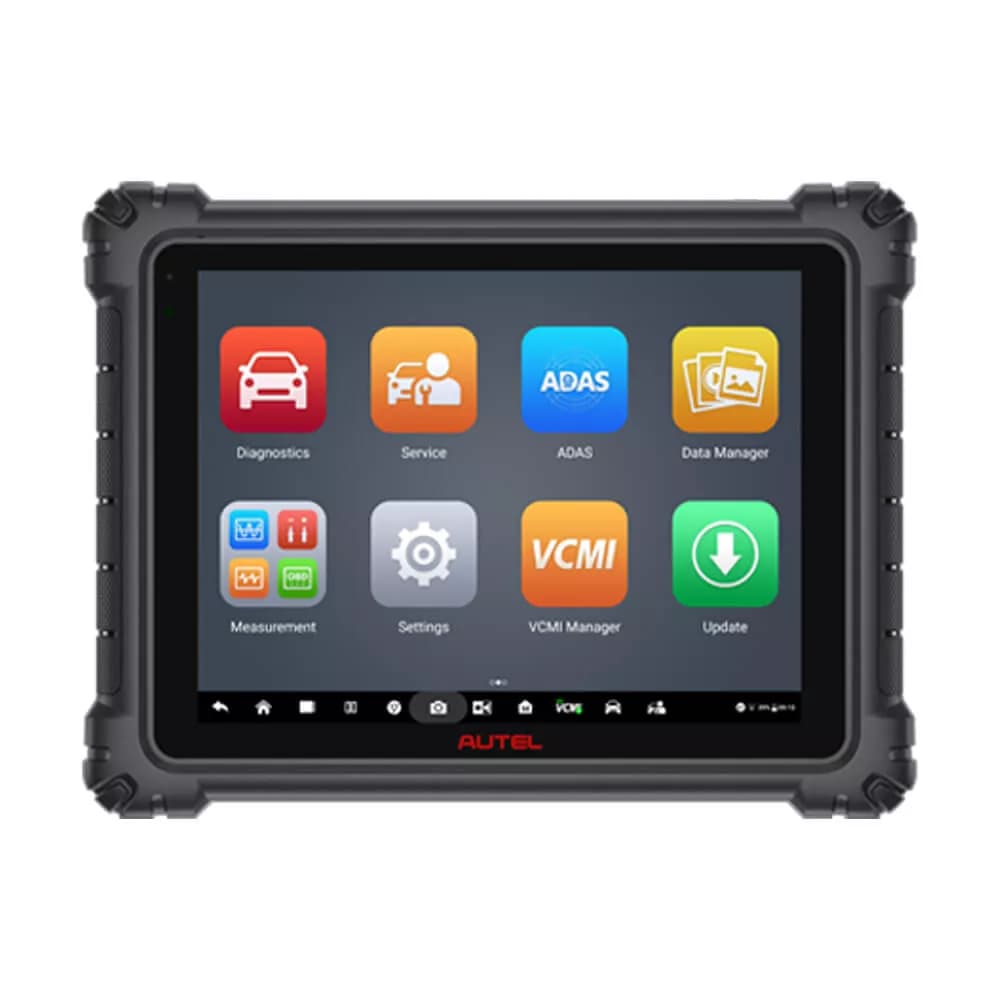

Autel MaxiSys Ultra
The Autel MaxiSys Ultra stands at the top of Autel’s diagnostic lineup, designed for automotive professionals who demand unmatched speed, accuracy, and intelligent workflow integration. Built to streamline even the most complex diagnostic procedures, the Ultra combines powerful hardware, advanced software features, and an intuitive user interface to deliver a truly premium experience.
- 1. Autel updates provide latest OE-level coverage for more than 80 US Domestic, Asian, and European vehicles, including supercars
- 2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- 3. Automatic system and software updates with real-time push message notifications via internet
- 4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- 5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- 6. Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes
Specifications:
|
Operating System |
Android 7.0 |
|
Processor |
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
|
Memory |
4GB RAM & 256GB On-board Memory |
|
Display |
12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
|
Connectivity |
|
|
Camera |
|
|
Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
|
Audio Input/Output |
|
|
Power and Battery |
|
|
Input Voltage |
12V/3A Adapter |
|
Operating Temp. |
0 to 50°C (32 to 122°F) |
|
Storage Temperature |
-20 to 60°C (-4 to 140°F) |
|
Dimensions (WxHxD) |
366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
|
Weight |
2.18kg (4.81 lb.) |
|
Protocols |
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |

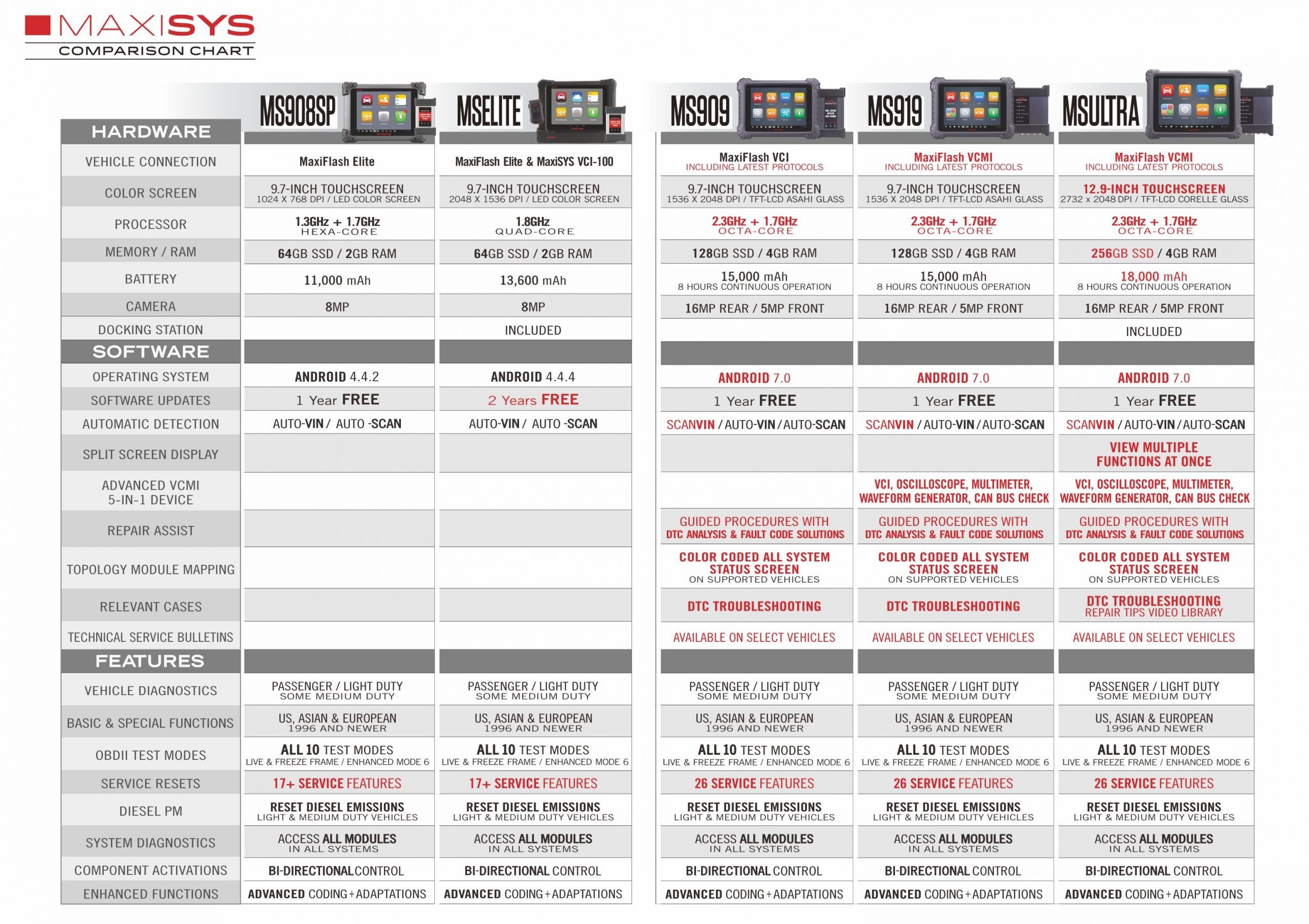

Comparison:

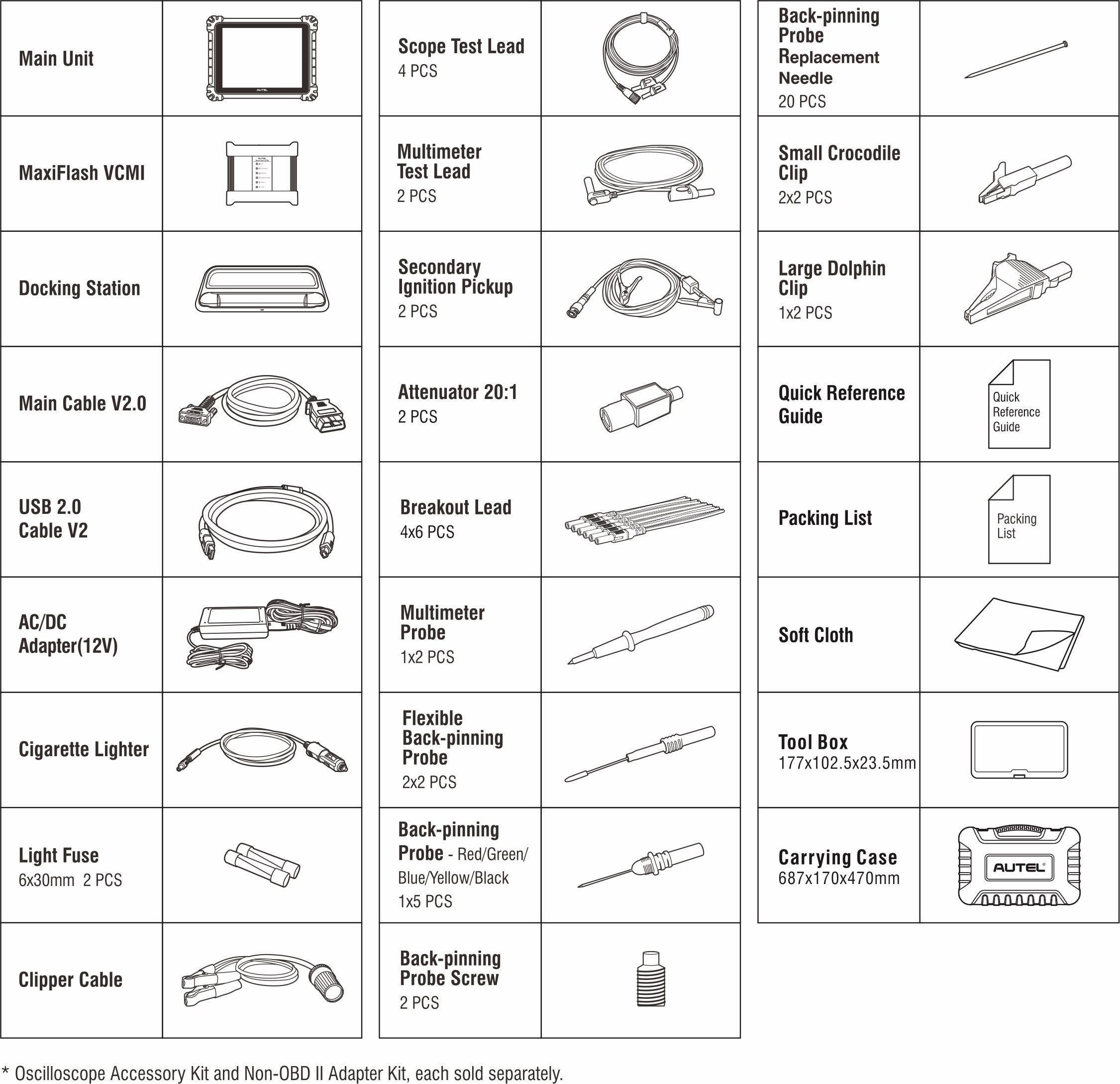

Accessories:
Main
- Autel
- China
Product Specifications
- New
