Autel - MaxiTPMS TBE200

Autel - MaxiTPMS TBE200

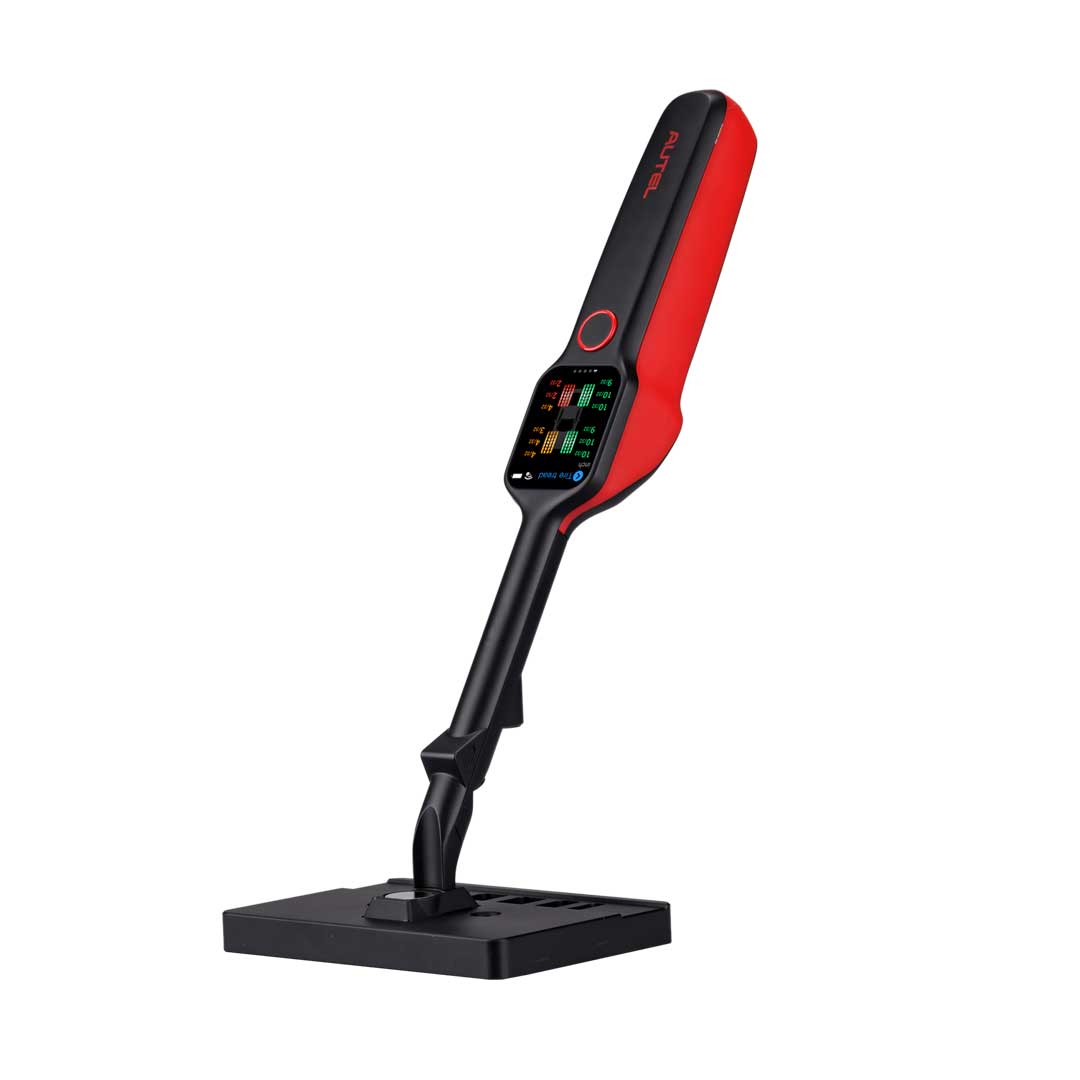

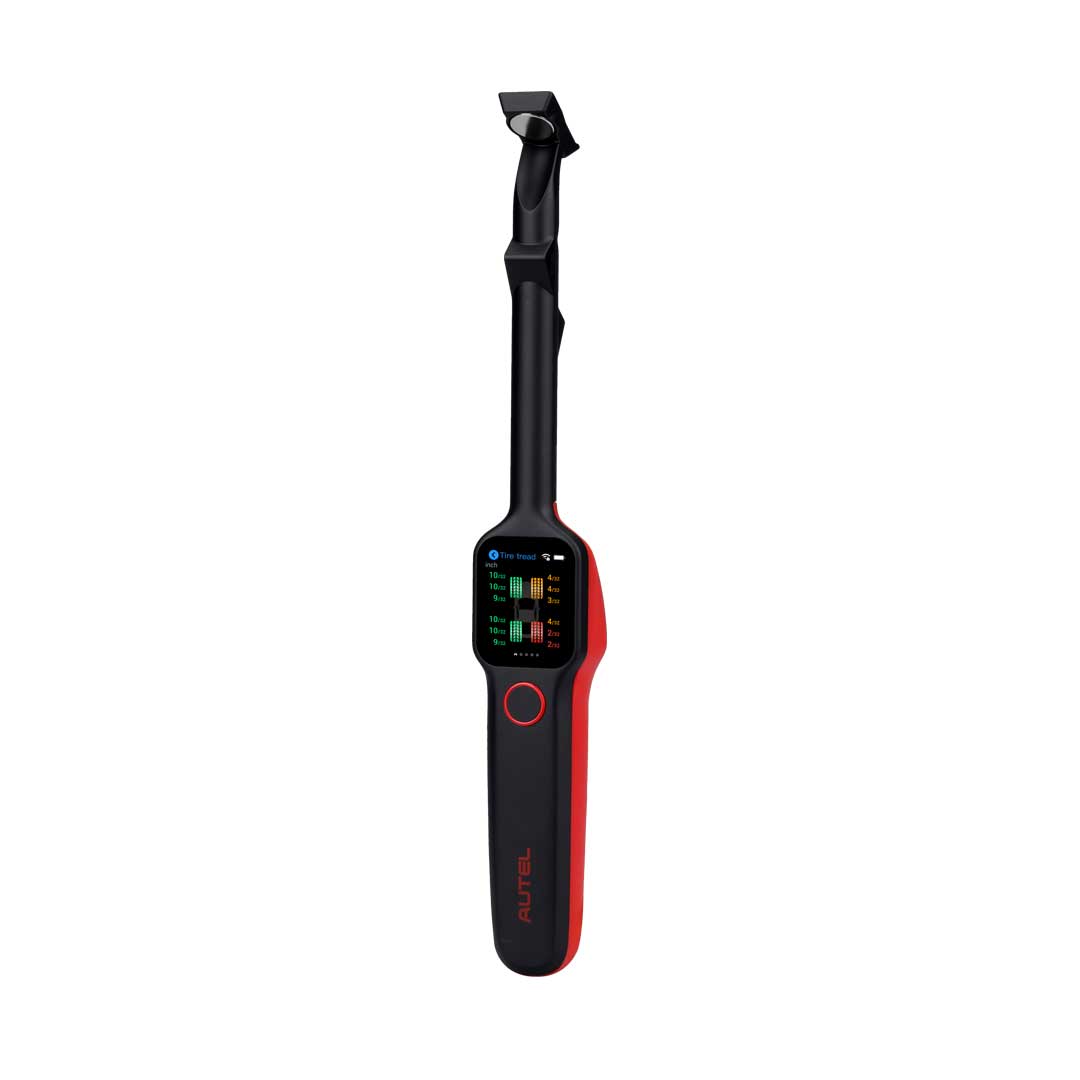

The MaxiTPMS TBE200 is a laser-based tool for measuring tire tread depth and brake disc wear, delivering fast and precise results. It allows brake disc wear measurement without tire removal and features a 1.65” AMOLED retina touchscreen that shows real-time data curves. The TBE200 also provides uneven wear analysis and offers maintenance and replacement recommendations for efficient tire servicing. Dual cameras allow for documenting tire wear, capturing damage, and scanning the Tire Identification Number (TIN). It can be used independently or paired with the ITS600 to view and print comprehensive TPMS reports.

Laser Measurement:

• Combines tire tread depth and brake disc wear inspection in a single tool—no wheel removal required for measurement.
• Laser measurement technology with 0.1mm precision.
• Complete tread depth assessment.
• Fast and easy check for both tread depth and brake disc wear.

Live Tire Health Monitoring:

• Instantly displays measurement data on a touchscreen
• Shows data curves for easy analysis
• Detects uneven wear patterns
• Detailed test reports for individual tire tread and brake discs
• In-depth maintenance and replacement recommendations (including tire/brake disc replacement, tire rotation, and alignment services)
• Scans DOT codes for expiration notices and recalls
• Captures images of tire wear and potential damage

Detailed Test Report:

In-depth report covering TPMS condition, tire tread depth, brake disc wear characteristics, and repair recommendations (Requires ITS600)

Simple QR Report Download & Sharing:

Create QR codes for tire tread depth and brake disc measurements, enabling effortless report sharing and download on mobile devices or tablets.

Device Specifications:

• Processor: Quad-core ARM Cortex-A35, 1.5 GHz
• Memory: 1 GB LPDDR3 RAM, 4 GB ROM
• Display: 1.65-inch AMOLED touchscreen, 348x442 resolution
• Connectivity: Wi-Fi, USB 2.0 Type-C
• Camera: CMOS WXGA 1 MP and 8 MP, 30 fps
• Audio: Beep output
• Power & Battery: 3.7V / 3000 mAh 18650 lithium-ion battery, 5V AC/DC charging
• Battery Life: 8 hours of continuous use
• Charger Input: 5V / 1.5A
• Operating Temperature: -10 to 45°C
• Storage Temperature: -20 to 60°C
• Weight: 188 grams
• Protocols Supported: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (high, medium, low speed, single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Comparison:

Package Contents

• MaxiTPMS TBE200 Tool
• Calibration Table
• Power Adapter
• Type C USB Cable
• Carrying Case
• Packing List
• Quick Reference Guide
