Genuine Scanmatik 3 Professional Scan

Genuine Scanmatik 3 Professional Scan

The Scanmatik 3 is the latest professional diagnostic and reprogramming tool, designed to provide cutting-edge support for modern automotive protocols. The Scanmatik SM3 Pass-Thru Adapter succeeds the SM2Pro, adding compatibility with CAN-FD and DoIP protocols. It offers extensive support for SAE J2534-1/2 and TMC RP1210 standards, essential for OEM vehicle diagnostics, reprogramming, ECU flashing, and vehicle tuning software like PCMflash, BitBox, Combiloader, MDFlasher, and more. Exclusive software features such as Ignition State Emulation (VAG ODIS) and KLINE multiplexing (MB-DAS) have been implemented to enhance vehicle and function coverage. Additionally, J1850 VPW/PWM and Chrysler SCI interfaces ensure compatibility with legacy vehicles.

Note: Production of the SM2Pro ended in December 2024, but it will continue to receive software and feature updates.

Specifications:

• 13 ISO-9141-2/K-LINE/Chrysler SCI channels multiplexed to OBD pins [1,2,3,6,7,8,9,10,11,12,13,14,15].

• 1 J1850 VPW/PWM channel.

• 5 CAN2.0/CAN-FD channels multiplexed to OBD port pins.

• 1 Single Wire CAN channel (GM).

• 1 DoIP 10/100BASE-TX Ethernet channel.

• Programming Voltage (FEPS) generator (5-24V), multiplexed to OBD pins.

• Separate AUX output for programming voltage via DB-25 (requires AUX-type OBD2 cable).

• Wireless standard: IEEE 802.11b/g/n (2.4GHz frequency).

• Dimensions: 97mm (L) x 75mm (W) x 22mm (H).

Key Features:

• Supports both USB and Wi-Fi connections to a PC.

• Galvanically isolated USB port for enhanced safety.

• Stable and user-friendly Wi-Fi connection, powered by proprietary firmware (no Serial Port emulation).

• Full protection for transceiver lines (overvoltage and short-circuit).

• 24V onboard voltage support for trucks and buses.

• Protection against load dump overvoltage spikes, withstanding up to 55V.

• Complete support for SAE J2534-1 (V0404, V0202), SAE J2534-2, and TMC RP1210C (for heavy-duty vehicles).

Description:

The Scanmatik 3 works with personal computers, tablets, or smartphones. It comes with software for Windows and Android, and includes drivers for integration with third-party software compliant with SAE J2534 and RP1210 standards. It can connect to the adapter using either USB or Wi-Fi interfaces.

Package Includes:

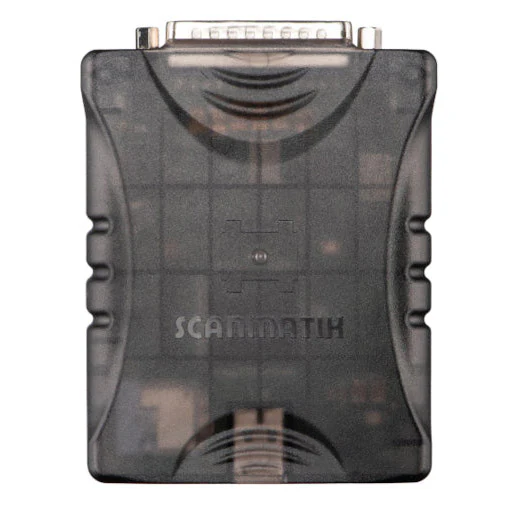

• SM3 Device

• OBDII Cable with AUX output

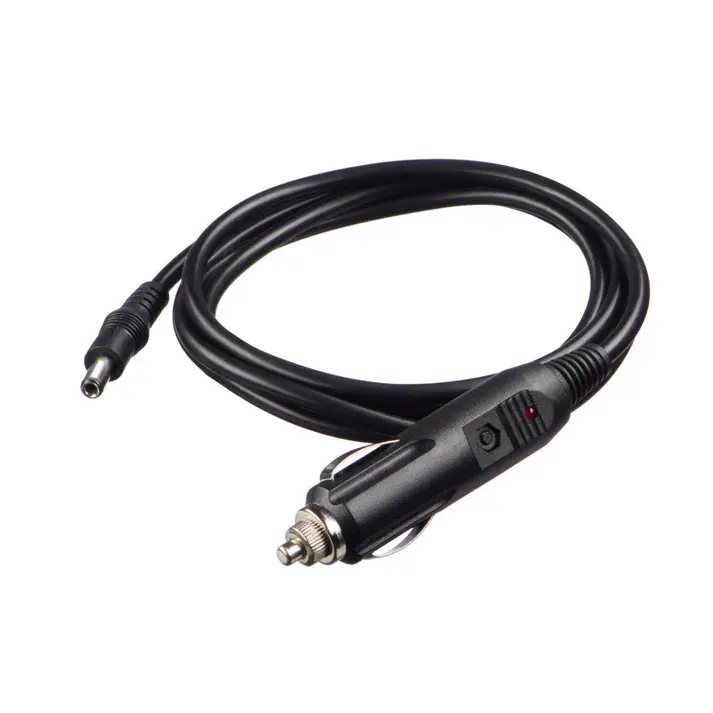

• Cigarette Lighter Power Cable

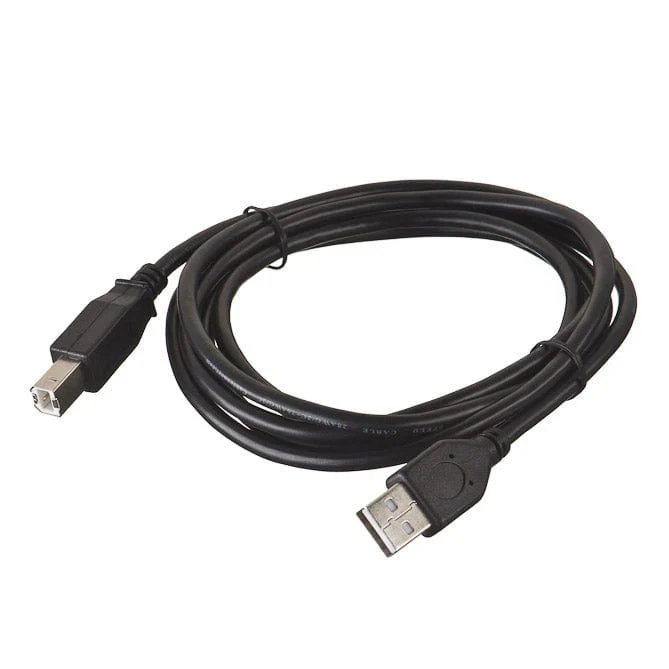

• USB A-B Cable

• Scanmatik-branded Carry Bag (vertical handle design)

Warranty:

• SM3 Adapter: 1-year warranty.

• Cable Accessories: 3-month warranty.

• Repair/Replacement: Free for manufacturing defects within the warranty period. (Shipping costs for repairs are the responsibility of the customer.)
