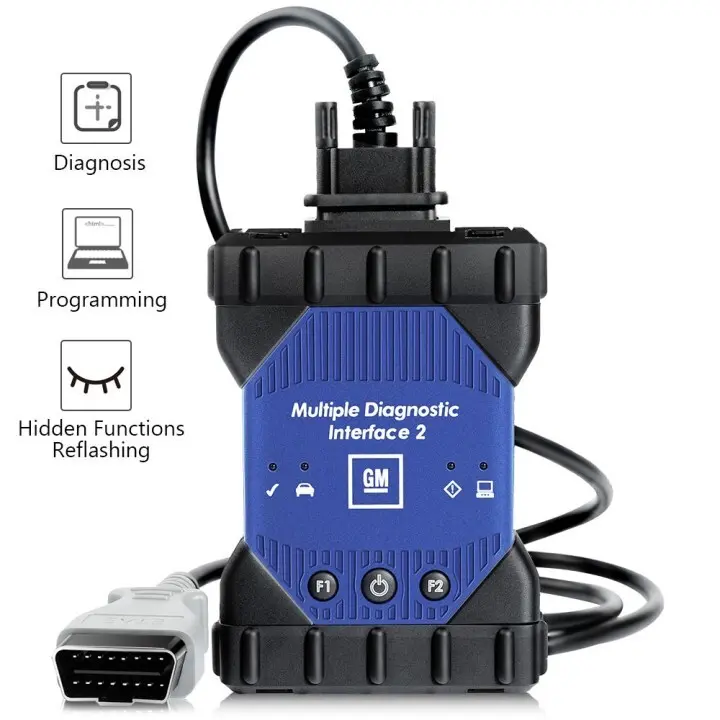

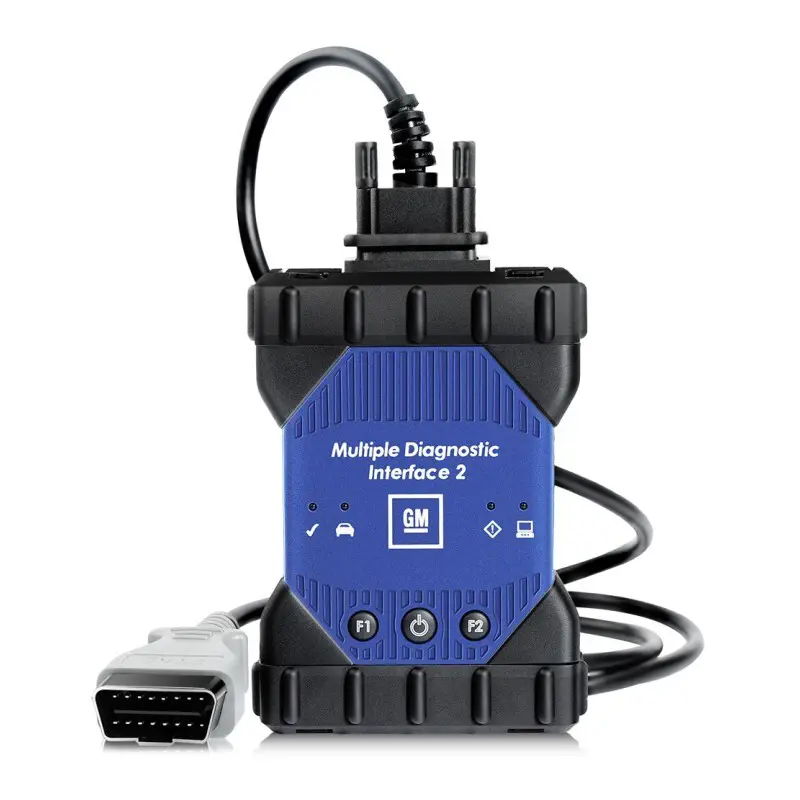

The GM MDI 2 is the Global Diagnostic Interface tool designed for both current and upcoming GM vehicles. It succeeds the original MDI released in 2007, providing a more compact communication module with enhanced processing power and security features. This enables quicker data transfer between a vehicle’s onboard ECU network and an auxiliary CAN bus.
NEXT GENERATION BENEFITS:
• Enhanced processing power for faster data transfers
• Supports Pass-Thru programming for all GM vehicles manufactured from 1996 onwards and future models
• New wireless connection option removes the need for an Access Point or IT support
• Compact design for convenient handling and storage
AFTERMARKET KIT #EL-52100-AM
• The kit contains:
- MDI 2 device
- DLC Cable
- USB Cable
- Ethernet Cable
• Two-year warranty with an exchange program for hardware issues
• Multilingual support hotline for hardware inquiries
REQUIRED DIAGNOSTIC SOFTWARE
• For GM vehicles from 1996-2013*, Tech2WIN software is needed
• For GM vehicles from 2010 onwards*, GDS2 software must be running on a local PC while the MDI 2 is connected to the vehicle. The connection between the MDI 2 and the PC can be via USB cable or the new wireless feature to thePC or the shop’s wireless network.
• The required software is licensed through ACDelco. Visit acdelcotds.com or call 1-888-212-8959.
GM MDI 2
Aftermarket Kit EL-52100-AM
MDI 2 Features
| Wireless Connection |
• Simple plug-and-play configuration • Point-to-Point, Does not require an Access Point or IT support • Upgraded wireless protocol support (includes 802.11 bgn) |
| High-Speed USB 2.0 Connection |
• Improved protection from ground offset failures • Improved USB performance (faster firmware downloads) • Reinforced USB Connector and connector housing • Device powered through USB or DLC connection (no AC adaptor required) |
| Operation During Engine Crank | • Super-Caps provide improved stability during engine crank (no batteries to leak or replace) |
| Extended Temperature Range |
• Industrial components extend the operating temperature range • Automatic power down if over temperature detected |
| Enclosure Design | • Improved enclosure design to product from exposure to fluids and drops |
| Vehicle Communication Protocol Coverage |
• Includes protocols for upcoming Global B vehicles with faster data busses • SAE J2534 and ISO–22900 Compliant |
| DLC Cable | • Longer DLC cable (2 meters) with twisted pair wire for Global B vehicles |
| New Hardware Expansion Capabilities |
• Two host USB expansion ports for future peripherals • SD Memory Card slot for future software applications • Programmable function buttons for future software features and applications |
