GODIAG ECU GPT Boot AD Connector for ECU Data Reading and Writing

Brand New GODIAG ECU GPT Boot AD Connector for ECU Data Reading and Writing—No Disassembly Required, Compatible with FC200
Additional Adapter from GODIAG
Product Weight: 330g

GODIAG ECU GPT Boot AD Connector Specifications:
Manufacturer: GODIAG
Condition: New

Overview of GODIAG ECU GPT Boot AD Connector:

The GODIAG ECU GPT Boot AD programming adapter allows users to read and write ECU data without the need for ECU disassembly. It supports both OBD2 Bench or GPT Bench methods, as well as traditional Boot methods. The adapter includes a short-circuit-resistant BOOT resistance board connection to safeguard the ECU. It is compatible with J2534 devices and PCMFlash software.

GODIAG ECU GPT Boot AD Features:

1. Dedicated ECU connection terminal.
2. Manual ignition power control supported.
3. Labeled ECU interface cable.
4. Allows ECU conversion to OBD2 mode for data reading and writing.
5. Supports RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, and GND.
6. Automatic ignition power control with PCMFlash support.
7. Enables ECU data reading and writing via the BOOT method.
8. Includes a CANbus switch for selecting the 120Ω resistor.
9. Facilitates GPT data reading and writing without ECU disassembly.

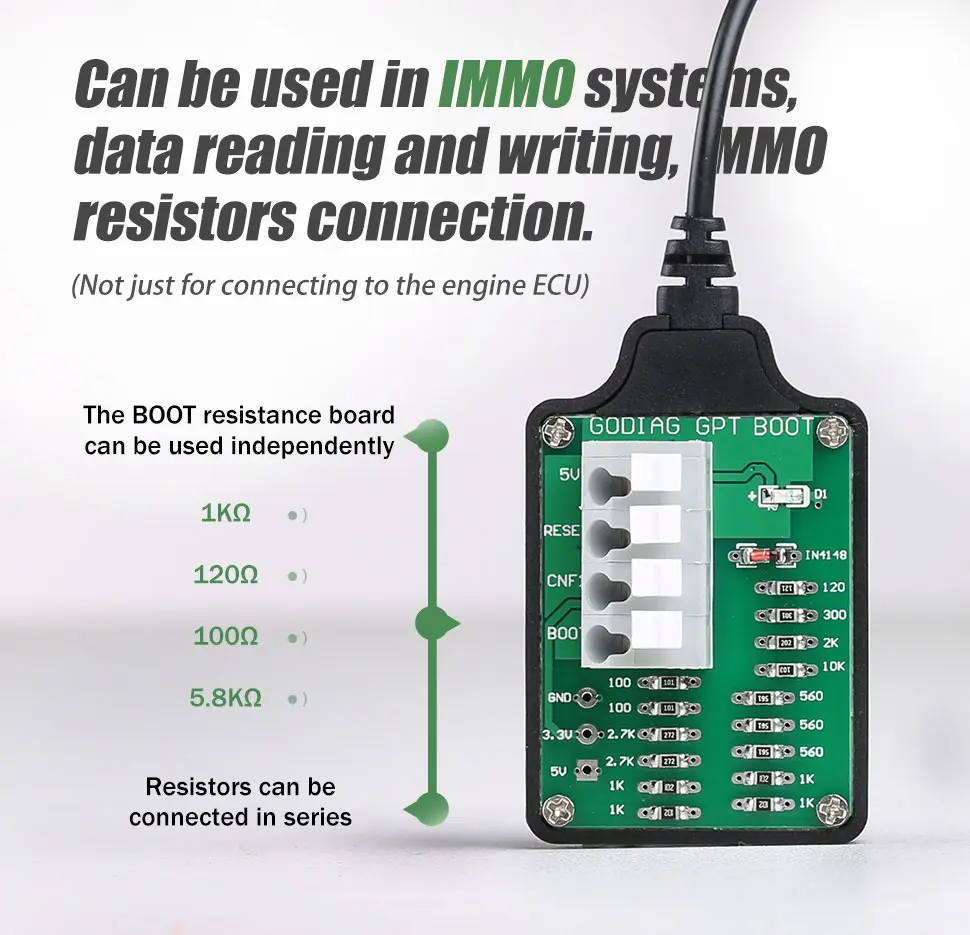

10. It comes with a BOOT resistance board connection cable designed to prevent the loss of resistors.

Functions of the GODIAG ECU GPT Boot AD Connector for ECU Reading and Writing:

1. Diagnostic functionality is compatible with standard OBD2 protocol equipment.
2. Supports both ECU data reading and writing, and is compatible with J2534 devices.
3. Only the Scanmatik 2 PRO for PCMFlash can generate GPT1 and GPT2 signals required for operation with Module 71.
4. Other devices such as Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR, and Teradyne GNA600 (VCM 1) are compatible with OBD2 or BOOT 53 modes for ECU data reading and writing.

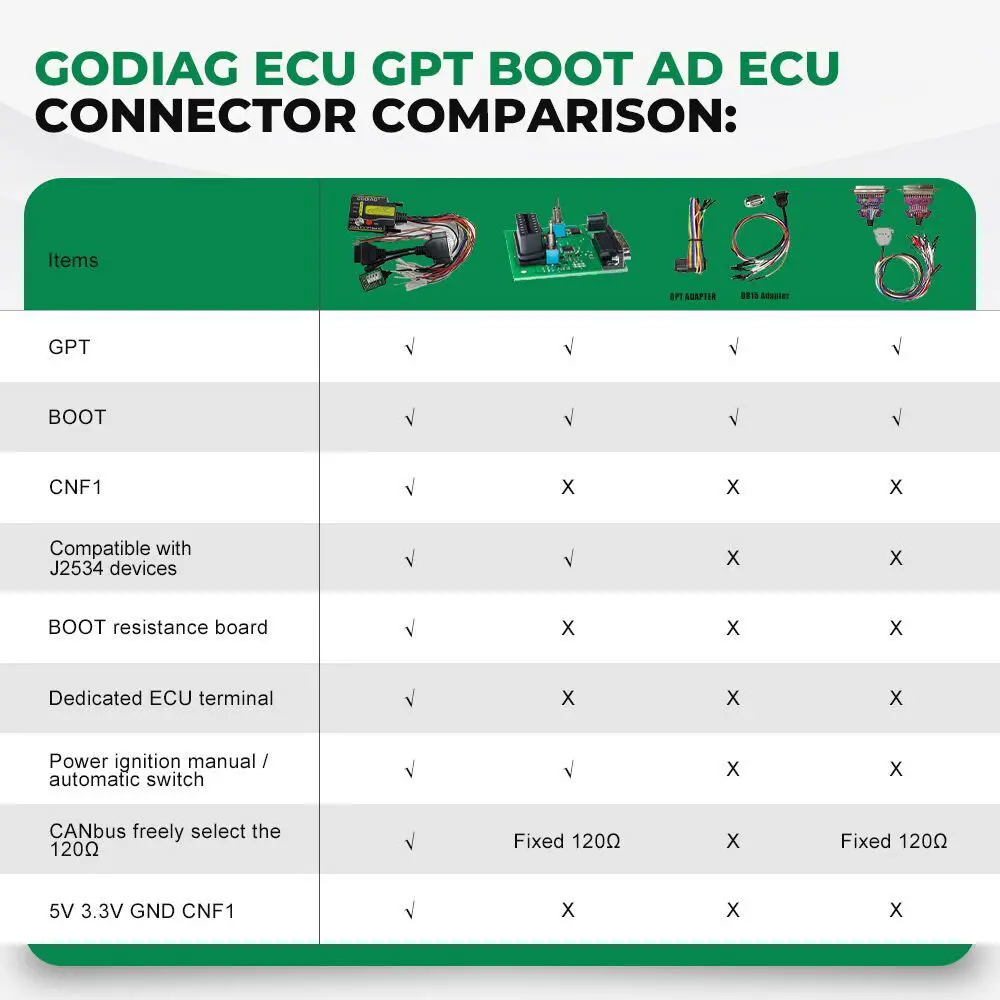

Product Comparison:

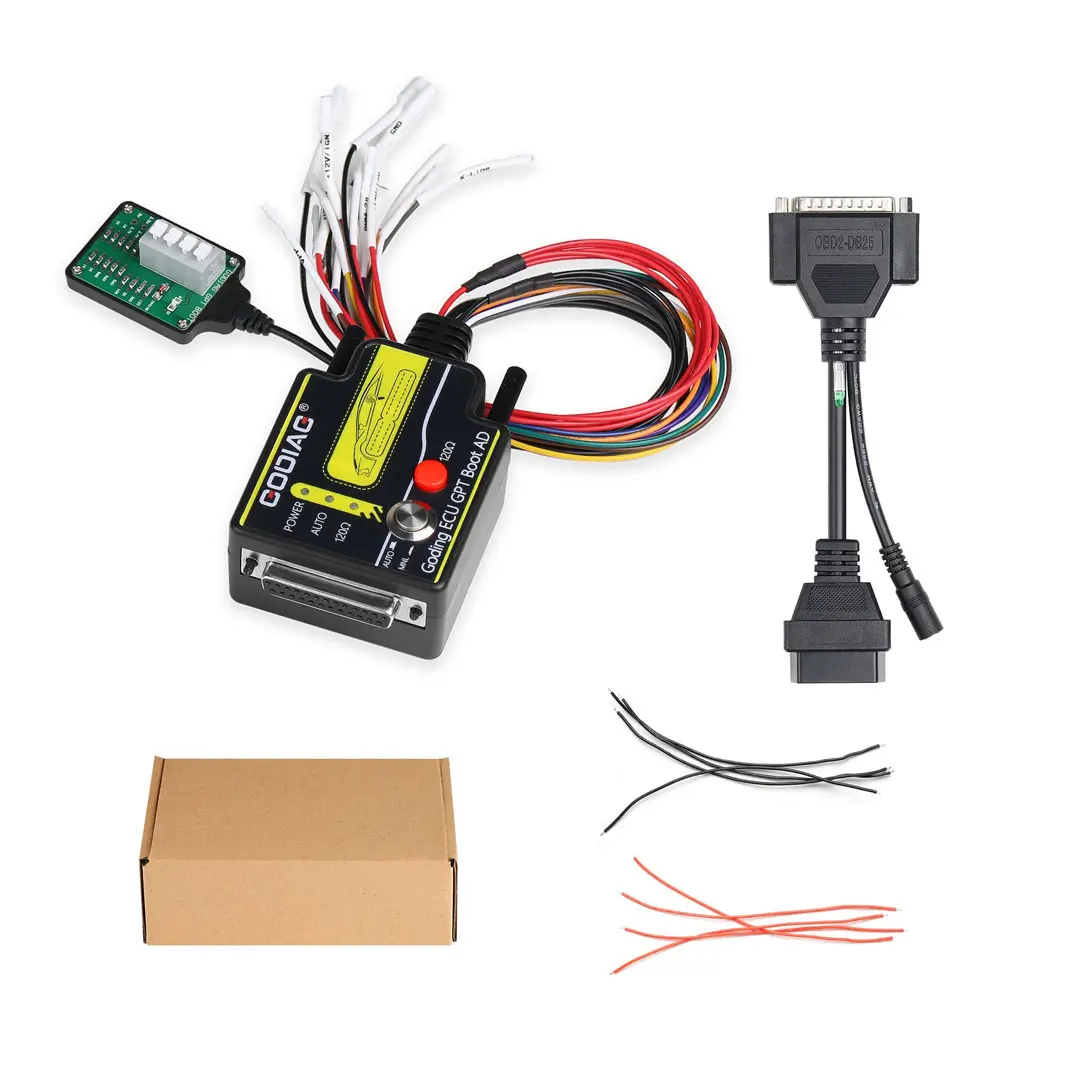

GODIAG ECU GPT Boot AD Connector for ECU Reading and Writing Package Contents:

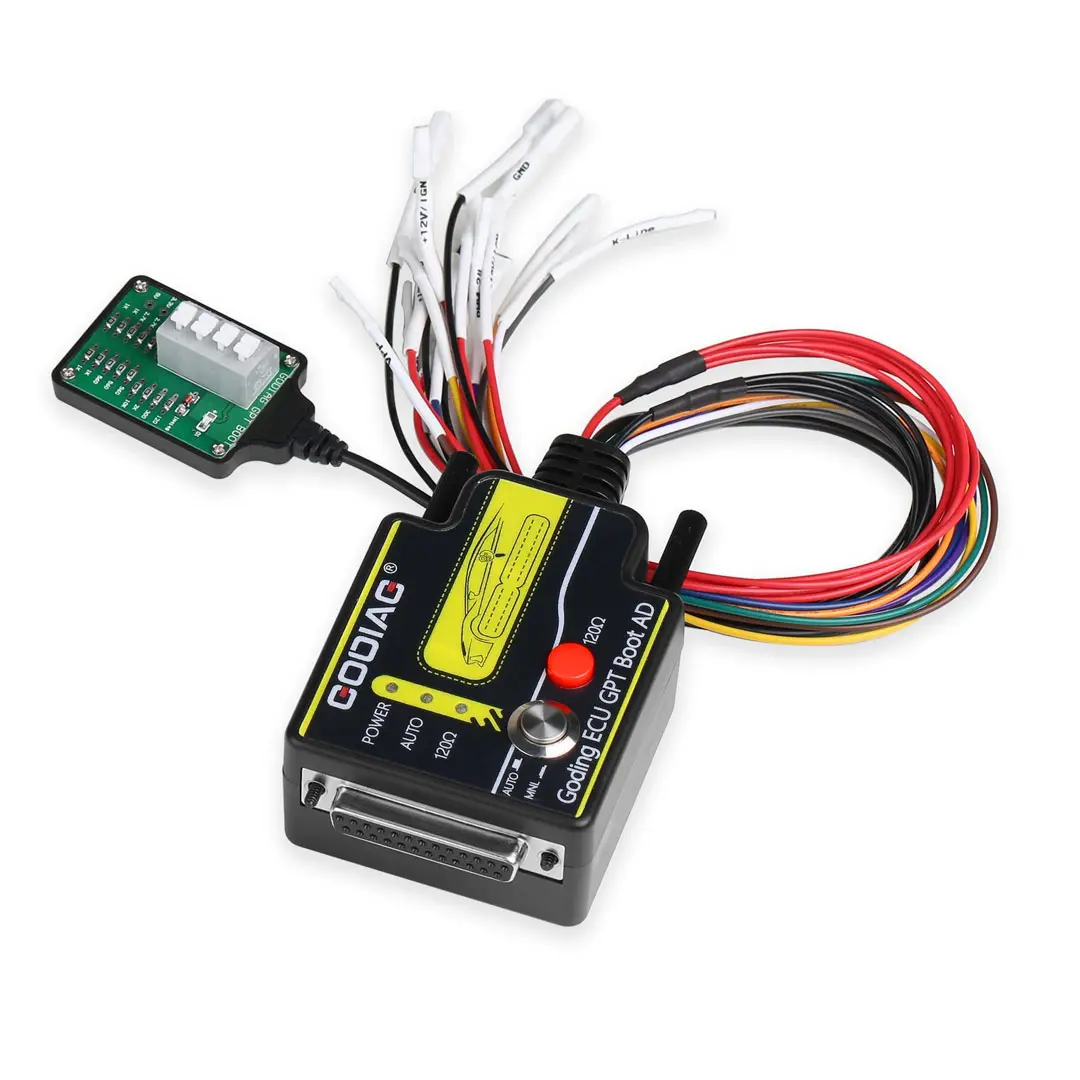

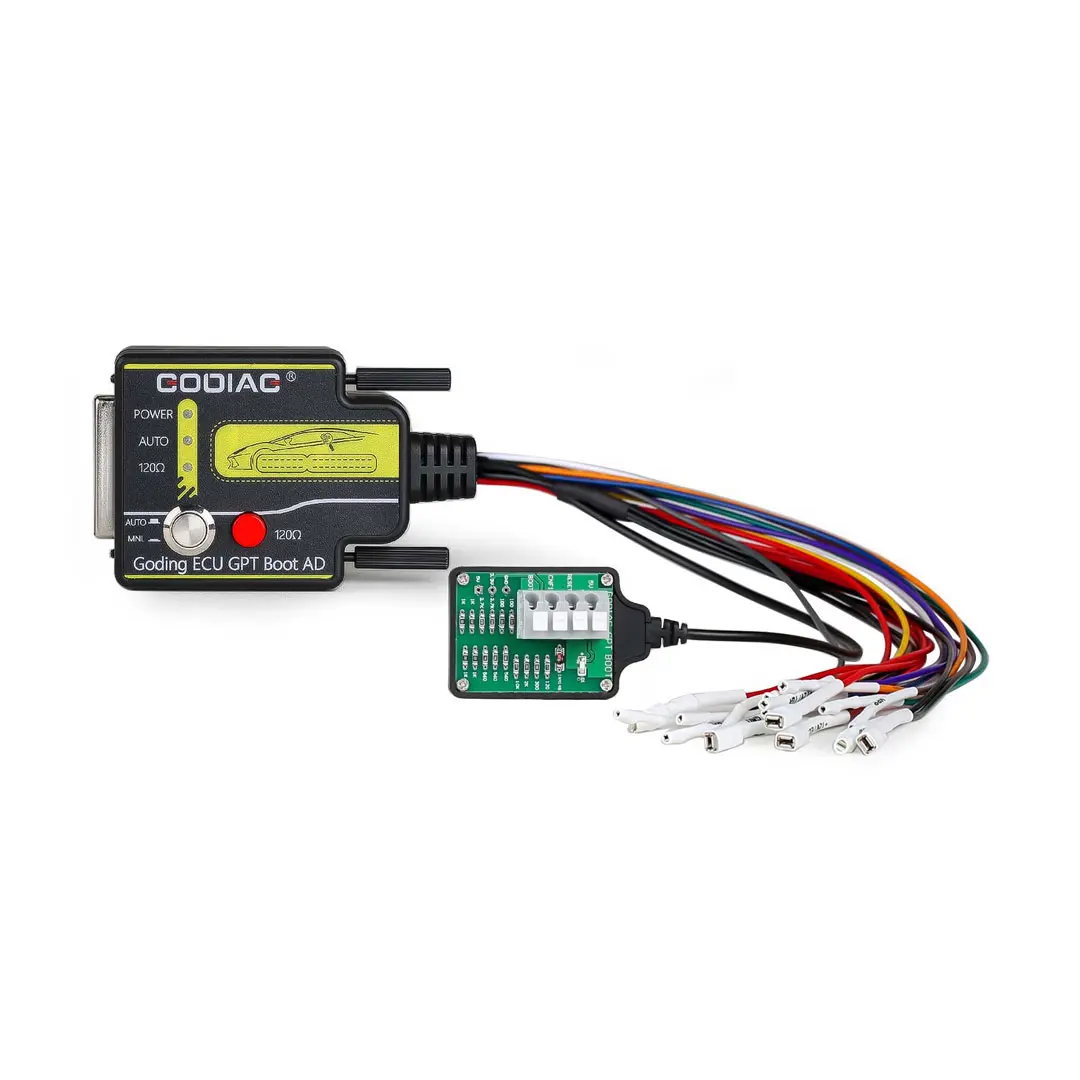

- 1x GODIAG ECU GPT Boot Adapter
- 8x Soft Silicone Wires
