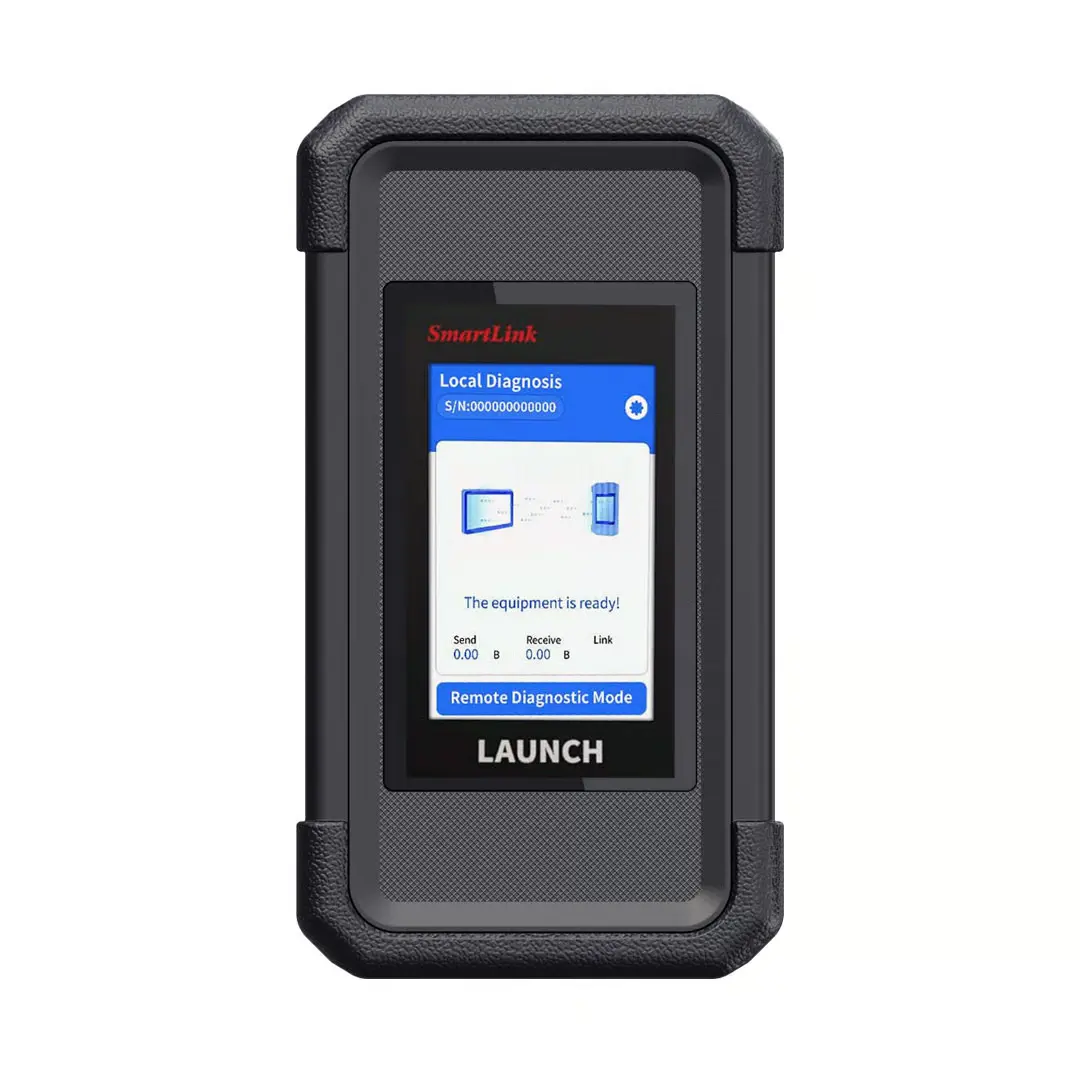

Launch X431 SmartLink B V2.0 – Remote Diagnostics Interface

The Launch X431 SmartLink B V2.0 is a next-generation Remote Diagnostics Interface designed for professional vehicle diagnostics and service through remote connectivity. As part of the SmartLink Remote Diagnostics System, SmartLink B acts as a service provider, allowing technicians to accept and perform remote repair orders submitted by SmartLink C users via the SmartLink Service Platform.

Supporting CAN, DoIP, CAN FD, and J2534 protocols, SmartLink B ensures wide vehicle coverage and seamless communication, enabling both local and remote diagnostics with compatible diagnostic tools.

Key Features:

• Compatible with LAUNCH tools, OE tools, and other third-party diagnostic devices

• Supports remote and local diagnostics through Launch intelligent diagnostics

• Handles advanced protocols including J2534, DoIP, CAN FD, CAN 2.0, RP1210, and D-PDU

• Publishes requests and accepts service offers via the Launch Super Remote Diagnosis (SRDs) Platform

• Part of the SRDs SmartLink ecosystem, including SmartLink C, SmartLink B, and the Cloud Platform

• Includes Bootloader solutions for ECUs and modules not accessible via OBD or Bench

• Enables complete reading and writing in OBD and Bench modes without opening the ECU

How It Works:

• SmartLink C connects on-site to the vehicle

• SmartLink B connects remotely with a compatible diagnostic device

• Remote diagnostics and service are performed seamlessly through the SmartLink Cloud Platform

SmartLink Service Platform:

• Pairs connections between SmartLink C and SmartLink B via an internet browser

• SmartLink C users post remote diagnosis requests

• SmartLink B providers view, accept, and perform these services

Technical Parameters:

• Display: 3.97” Single-Touch Screen (320 x 480 resolution)

• Working Voltage: DC 9V ~ 36V

• Communication: Ethernet

• USB: Type B USB 2.0

• Storage: 8GB

• Memory: 256MB

• Power Consumption: < 6W

• Operating Temperature: -10°C ~ 50°C

• Storage Temperature: -20°C ~ 60°C

• Humidity: 10% ~ 90%

• Dimensions: 204 x 110 x 45 mm

Important Notes:

• Activation Card required for full functionality

• IP Restriction: Works only in Middle East and Africa (excluding South Africa)

• Weight: 4050g

The Launch X431 SmartLink B V2.0 is a professional-grade remote diagnostics interface that allows service providers to safely and efficiently perform advanced local and remote vehicle diagnostics via SmartLink’s cloud platform, supporting multiple industry-standard protocols.
