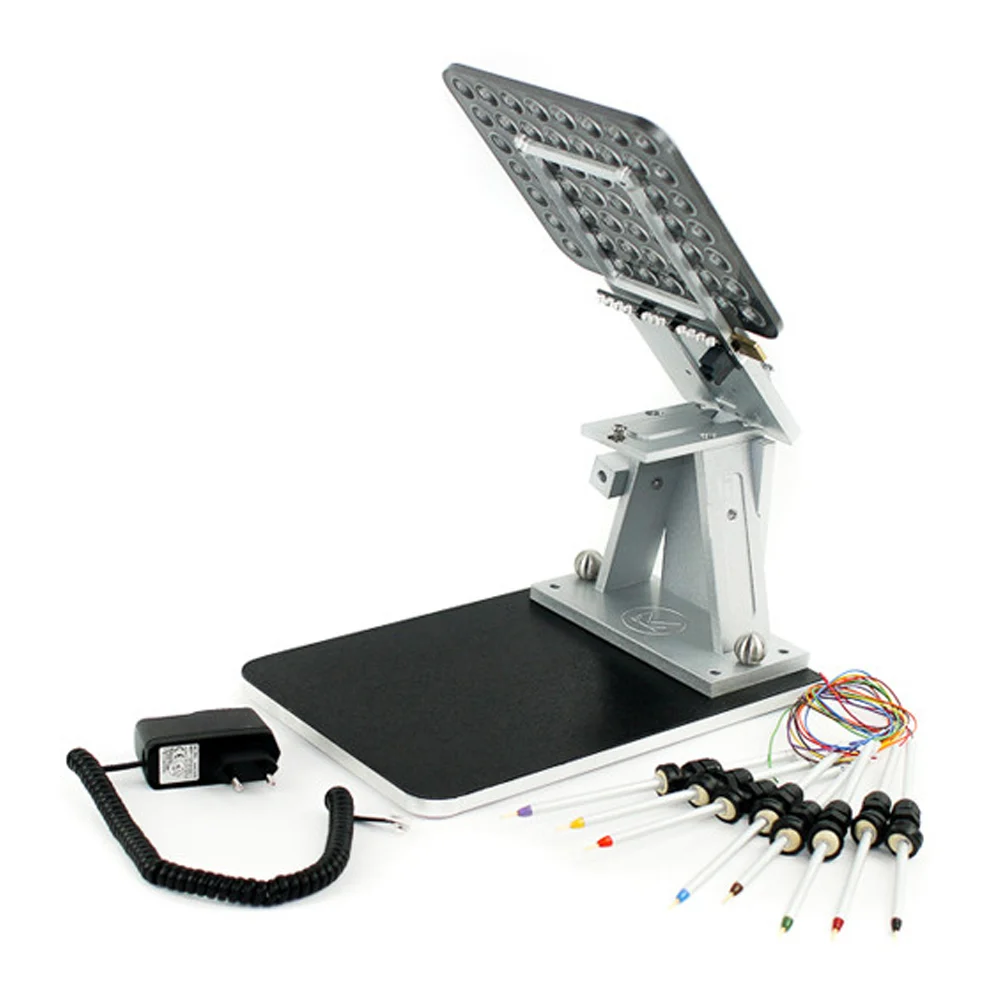

The MAGBench is a versatile and essential tool developed by Magicmotorsport for making stable, precise connections to engine control units (ECUs) and automatic transmission control units (TCUs) in Boot, BDM, and JTAG modes. This universal BDM frame or jig tool is designed for use in professional mechatronics workshops, offering an efficient way to connect and program various types of electronic units.

Main Characteristics:

• 56 Positioning Holes: Provides a wide range of connection options for different ECUs and TCUs, including heavy-duty vehicle control units.
• Precise Connections: Ensures reliable and stable connections for safe and effective ECU programming and diagnostics.

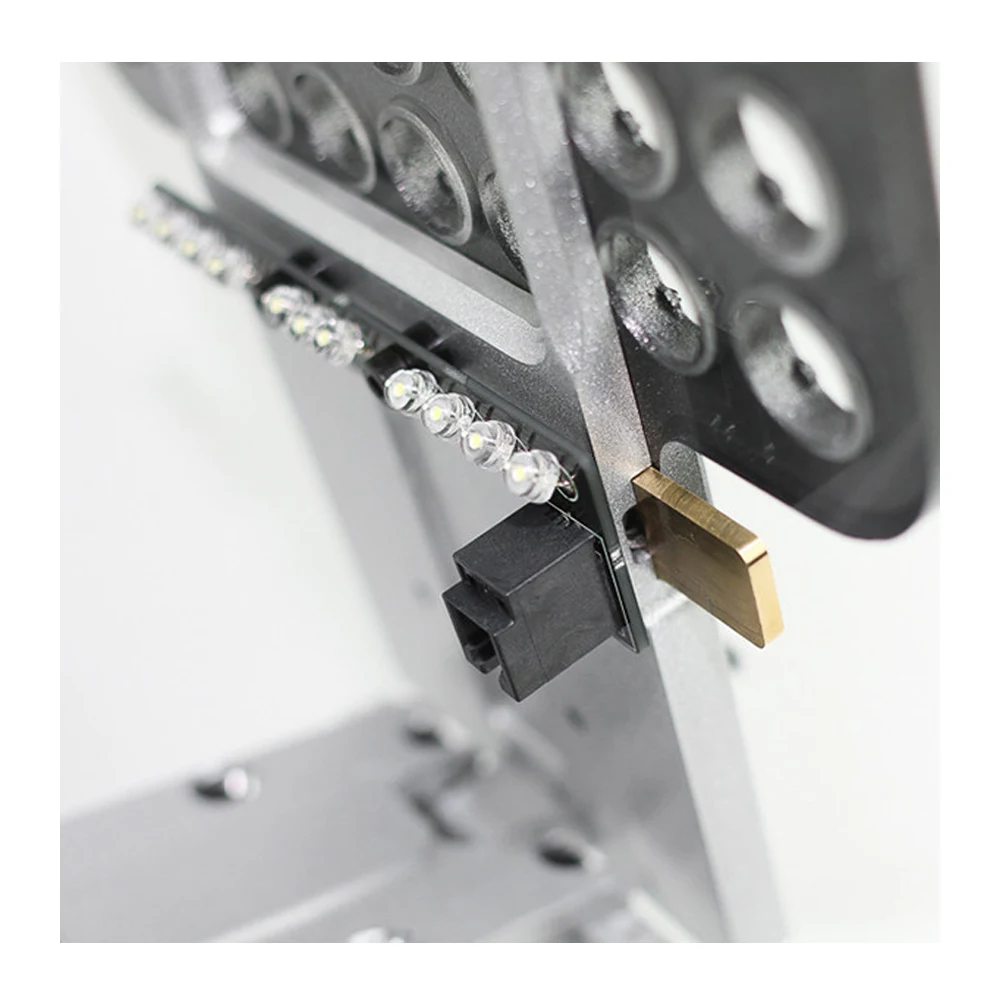

• LED Lighted Base: The illuminated base allows for greater visibility and precision during work, especially in low-light conditions.
• Customizable: Tailor the MAGBench to meet specific needs with a variety of accessories that enhance its versatility and functionality.

MAGBench: Stable and Precise Connections:

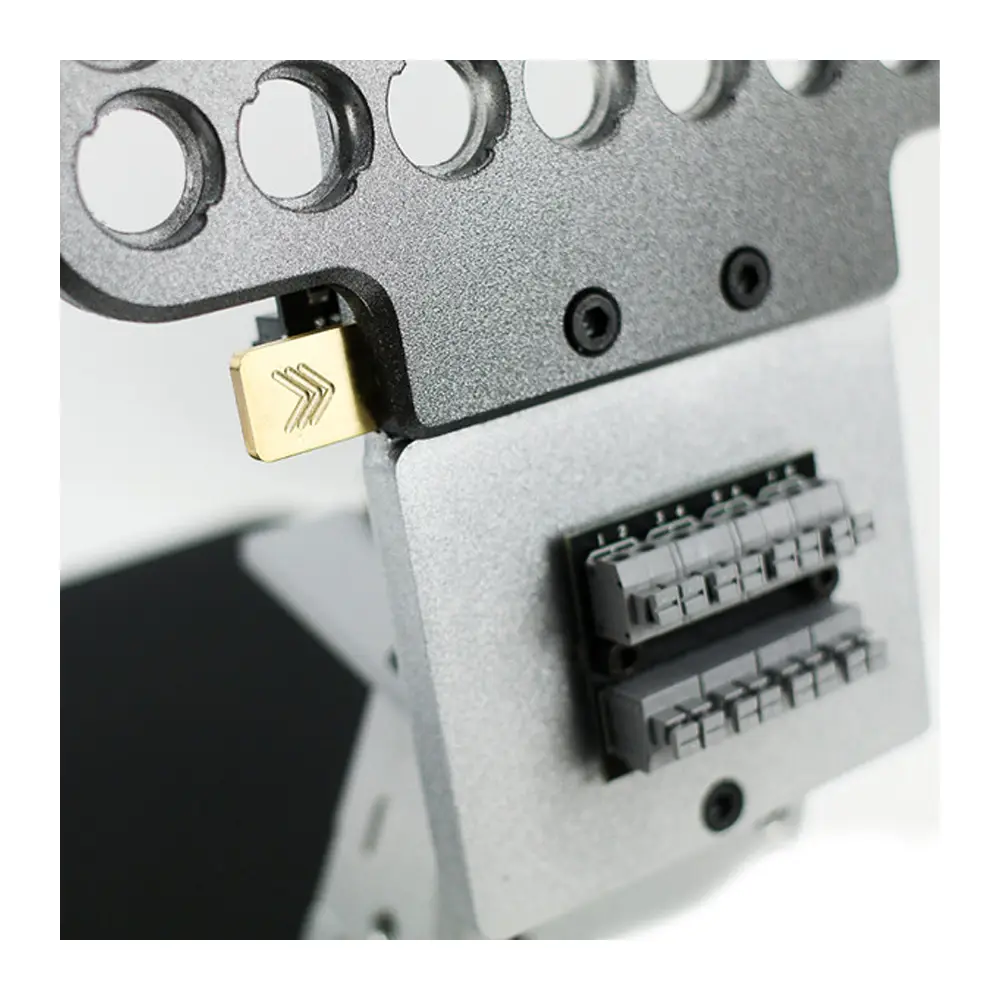

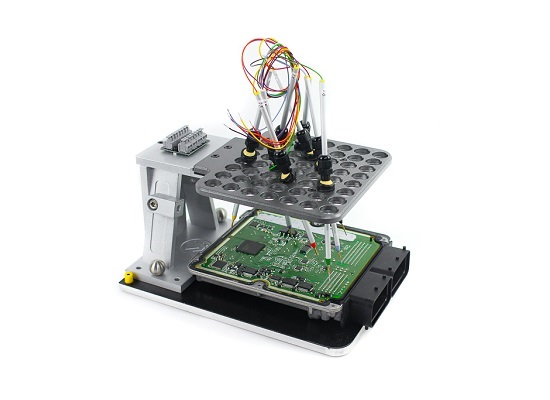

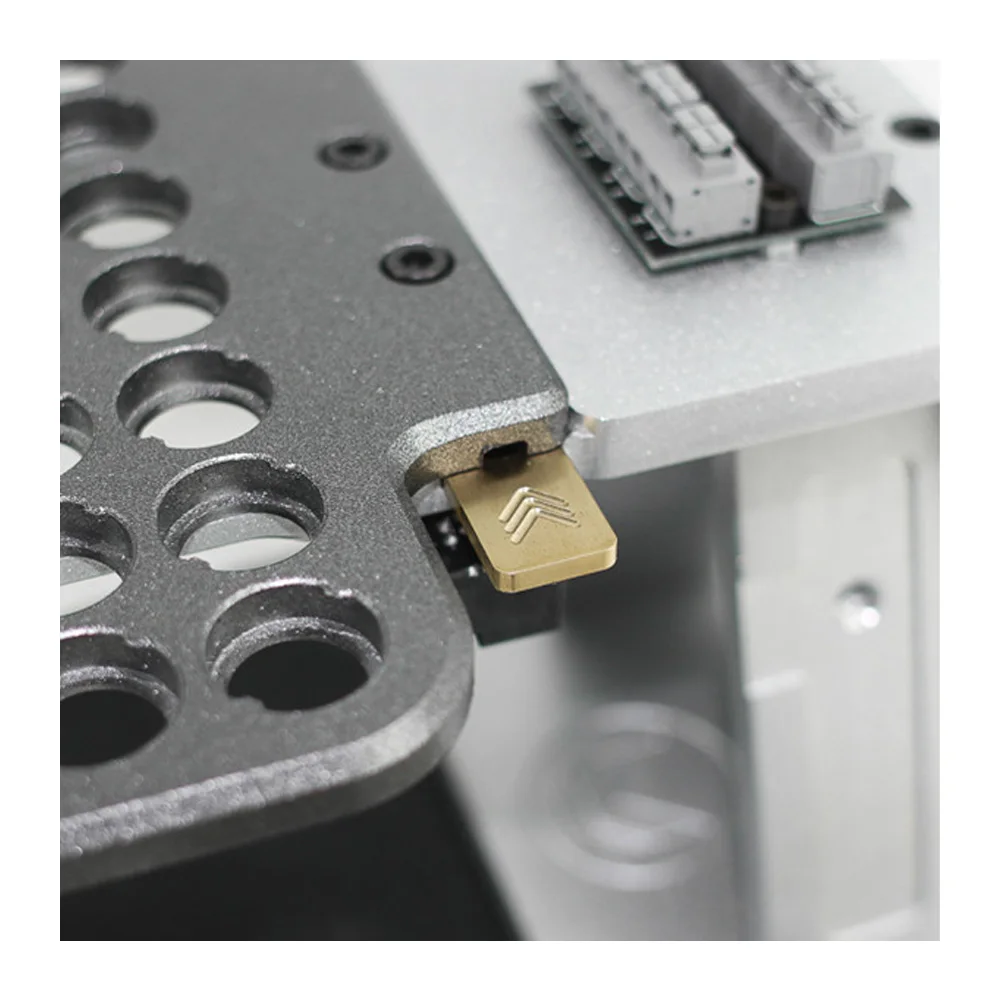

MAGBench is engineered to provide secure and precise connections for ECUs and TCUs in Boot, BDM, and JTAG modes. The MAGBench jig tool, with its patented upper panel, ensures a firm connection to electronic units, making it a critical asset for your workshop.

The 56 positioning holes and the analog lifting mechanism make it easy to access and connect to control units of various vehicles, including heavy-duty models. The color-coded eight probes simplify the connection process, allowing users to quickly and accurately connect to ECUs in Bootloader mode.

Customize Your MAGBench:

MAGBench can be customized with a wide range of available accessories, offering increased flexibility and functionality. Whether you're working with BDM or JTAG connections, the appropriate accessories can enhance your productivity, enabling you to program all types of control units efficiently.

Available Accessories:

• MAGBench Articulating Arm for Adapters
• MAGBench BDM Bosch Adapter
• MAGBench BDM Siemens Adapter
• MAGBench BDM Marelli Adapter
• MAGBench BDM Delphi Adapter
• MAGBench JTAG Toyota Renesas / NEC Adapter
• MAGBench BDM Adapter Kit
• MAGBench Adjustable Pogo Pin Probe

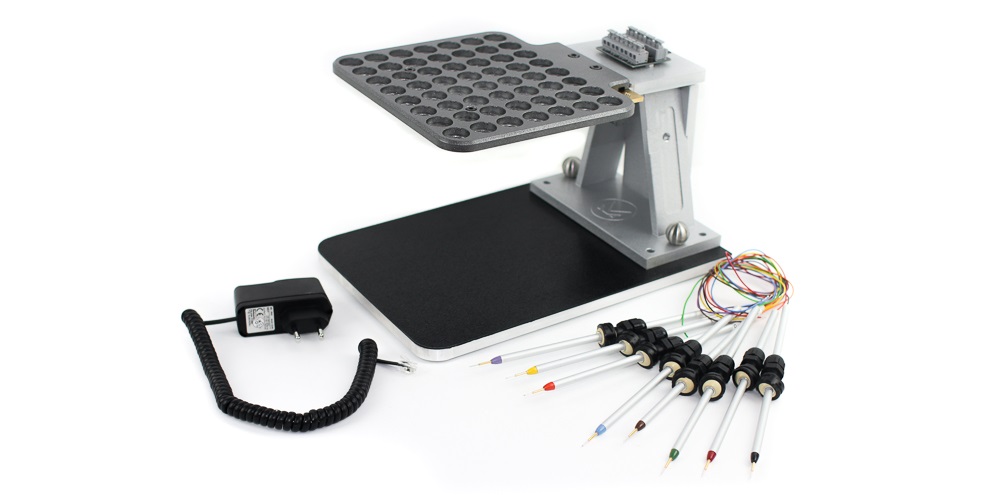

Package Contents:

• FLX1.8: MAGBench Universal 2 in 1 (1 unit)

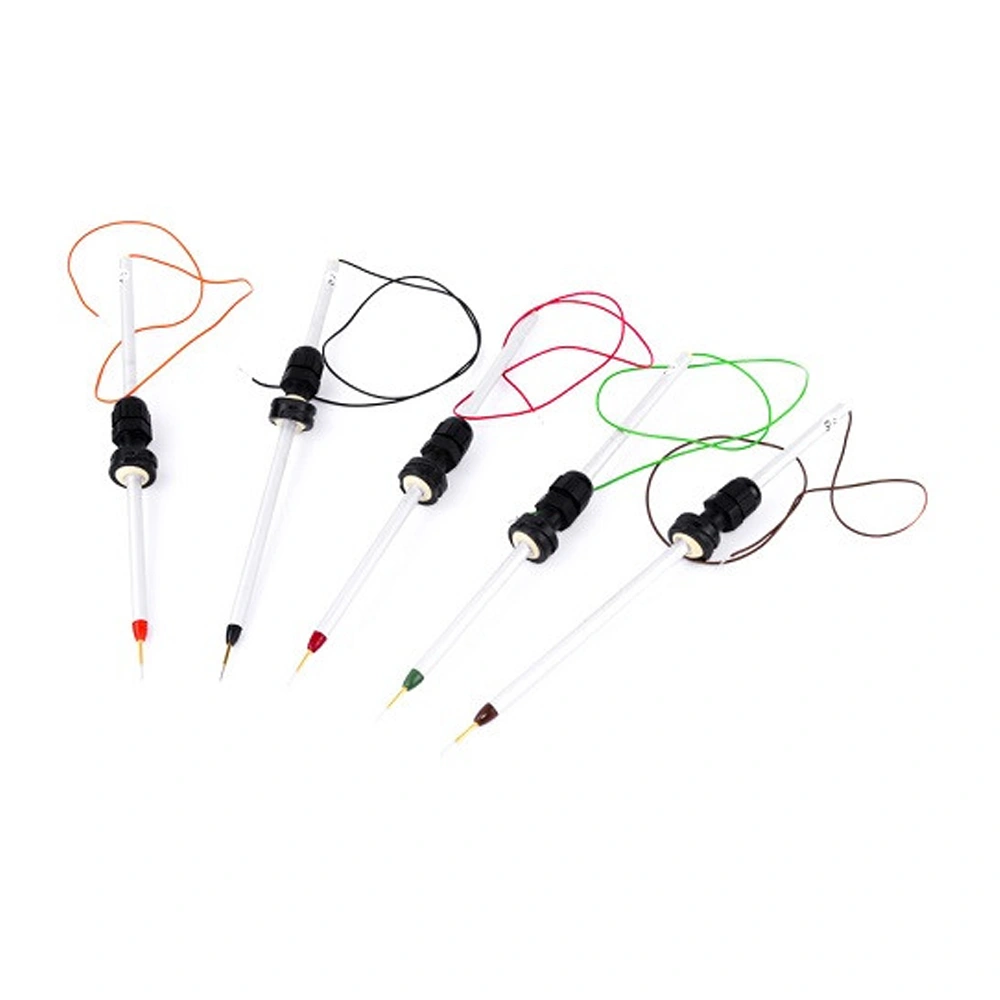

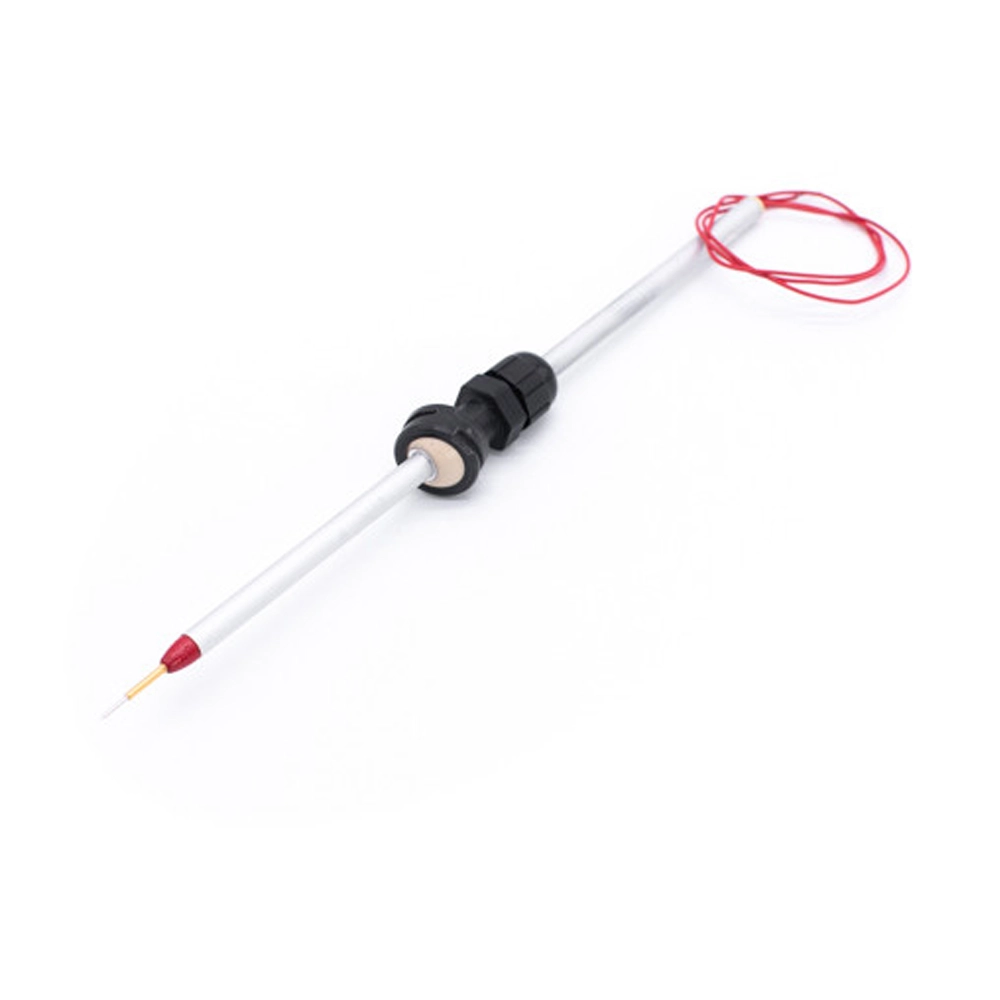

• FLX4.51: Universal MAGBench Adjustable Pogo Pin Probe (8 probes)
• MAGP0.3.53: Power Supply 6.6V 700mA with RJ11 (1 unit)
• FLX4.11: Neoprene Sheet (1 unit)

MAGBench is a reliable and customizable tool that ensures stable and accurate connections, helping you offer more services to your customers while improving efficiency and safety in your workshop.
