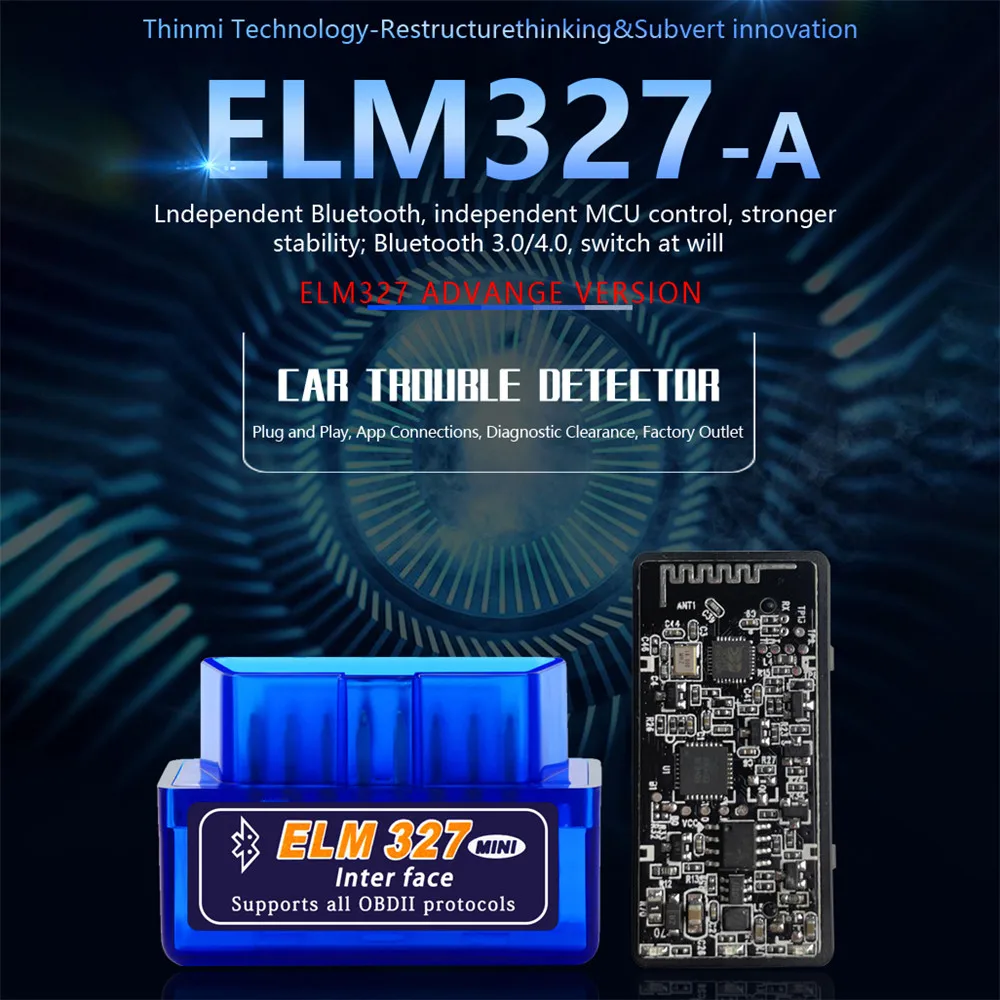

Super MINI ELM327 Bluetooth OBD2 Automotive Scanner

V1.5/V2.1 for Android & Windows

The Super MINI ELM327 Bluetooth OBD2 Scanner is a compact and powerful diagnostic tool designed to read and clear vehicle trouble codes, view real-time sensor data, and perform comprehensive diagnostics on OBD2-compliant vehicles. Compatible with Android devices, Windows PCs, and select Symbian systems, it offers a budget-friendly and reliable solution for DIY car diagnostics.

Product Variants:

• Version V1.5: Supports a wider range of vehicles, including models before 2010 – recommended for most users

• Version V2.1: Compatible with most cars from 2010 and later

Note:
If your vehicle is manufactured after 2010, either V1.5 or V2.1 will work.
If your vehicle was manufactured before 2010, choose V1.5.
Unsure of the year? Choose V1.5 for broader compatibility.

Specifications:

• Connection Type: Bluetooth (for Android devices & Windows PCs)

• Operating Voltage: 12V

• Output Protocol: RS232

• Baud Rate: 38400

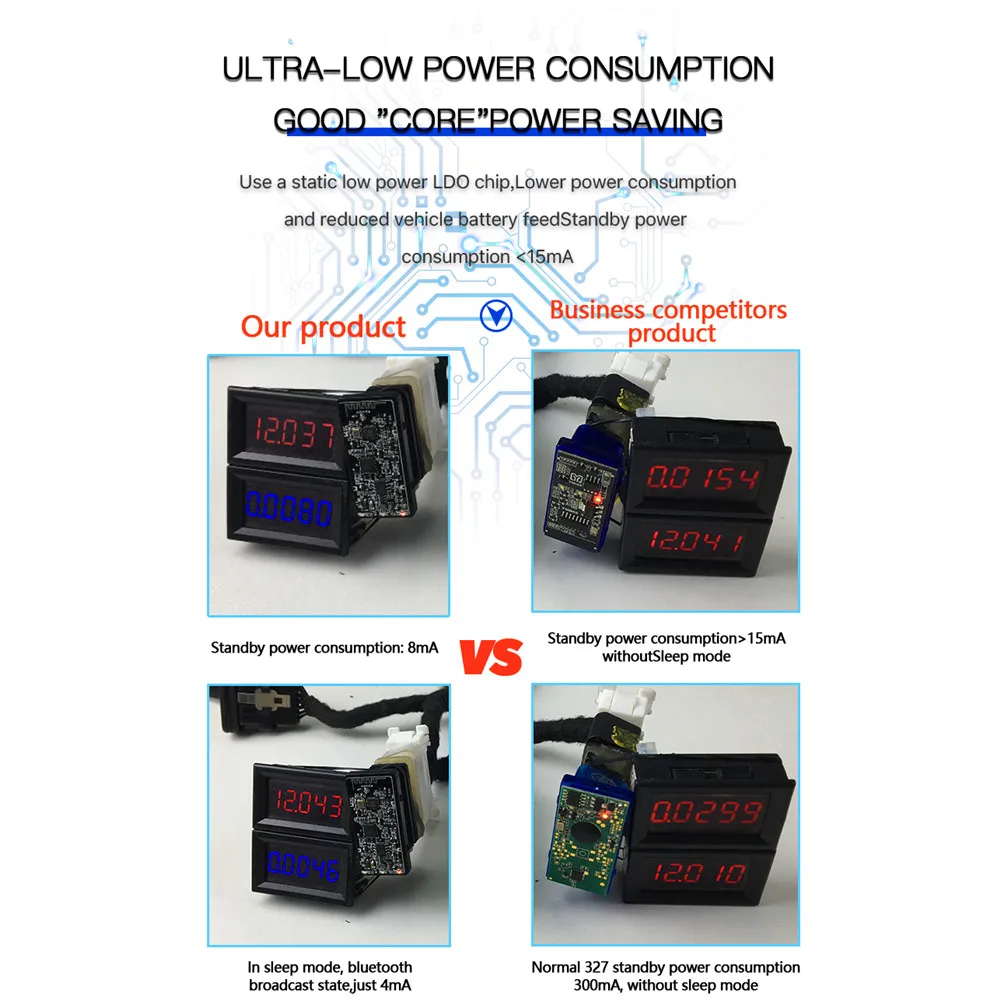

• Nominal Idle Current: 45mA

• LED Indicators: Power, OBD Tx/Rx, RS232 Tx/Rx

• Includes:

  • 1× ELM327 OBD2 Bluetooth Diagnostic Interface (V1.5)

  • 1× CD-ROM with OBD-II software

Compatibility:

• Supported Devices:

  • Android phones (v4.1–4.3 recommended)

  • Windows XP, Windows 7 (32-bit) PCs

  • Symbian phones

• Apps:

  • Torque

  • OBD Auto Doctor

Supported OBD2 Protocols:

V1.5:

1. SAE J1850 PWM (41.6K baud)

2. SAE J1850 VPW (10.4K baud)

3. ISO9141-2

4. ISO14230-4 KWP (5 baud init & fast init)

5. ISO15765-4 CAN (11/29-bit, 250K/500K baud)

V2.1:

1. ISO9141-2

2. ISO14230-4 KWP (5 baud & fast init)

3. ISO15765-4 CAN (11/29-bit, 250K/500K baud)

Functions & Live Data:

• Read & clear generic and manufacturer-specific DTCs (over 3000 code definitions)

• View live data, including:

  1. Engine RPM

  2. Vehicle Speed

  3. Coolant Temperature

  4. Fuel System Status

  5. Intake Manifold Pressure

  6. Air Flow Rate

  7. Throttle Position

  8. Oxygen Sensor Voltages

  9. Timing Advance

  10. Fuel Pressure
      ...and more!

How to Connect (Android):

1. Enable Bluetooth and pair with the device named OBDII, passcode 1234

2. Open your diagnostic app (e.g., Torque)

3. Go to Settings > OBD2 Adapter Settings > Connection Type > Bluetooth

4. Select the paired device and start diagnostics

Whether you're a car enthusiast, mechanic, or just want to keep tabs on your vehicle's health, the Super MINI ELM327 Bluetooth OBD2 Scanner is a must-have tool for quick, on-the-go diagnostics.
