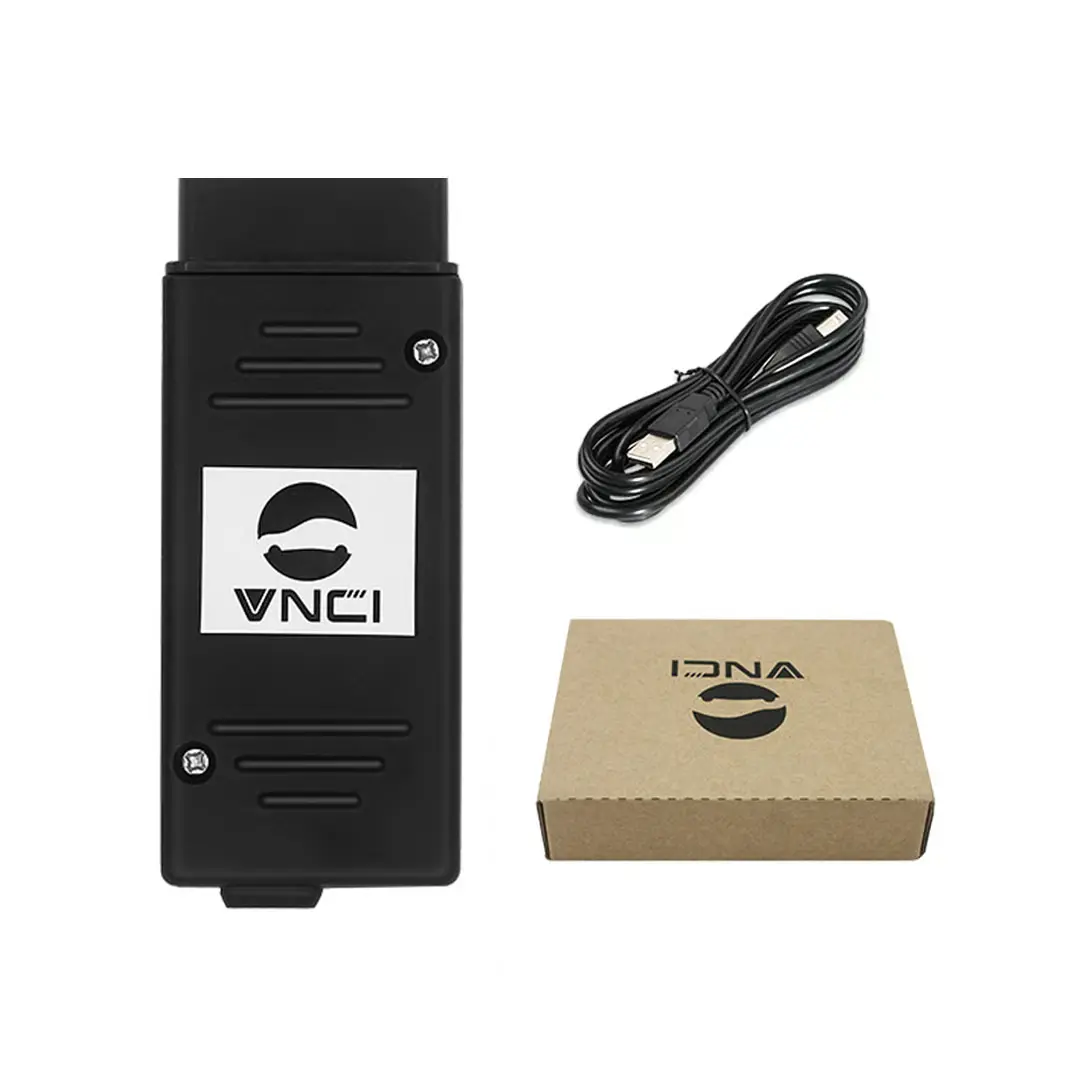

VNCI MDI2 Diagnostic Interface for Cadillac Chevrolet Buick GM Vehicles

VNCI MDI2 Diagnostic Interface for Cadillac Chevrolet Buick GM Vehicles

The VNCI MDI2 Diagnostic Interface for Cadillac, Chevrolet, Buick & GM Vehicles is a professional-grade diagnostic scanner that fully replicates the original GM MDI2 interface functionality at only 10% of the original cost. It is compatible with the latest original GM software drivers, requiring no third-party patches, and works as a complete replacement for the GM MDI2 device. VNCI MDI2 offers high-speed, secure, and reliable diagnostics and programming, fully matching the original performance.

Key Features:

• Plug and play – no third-party software required

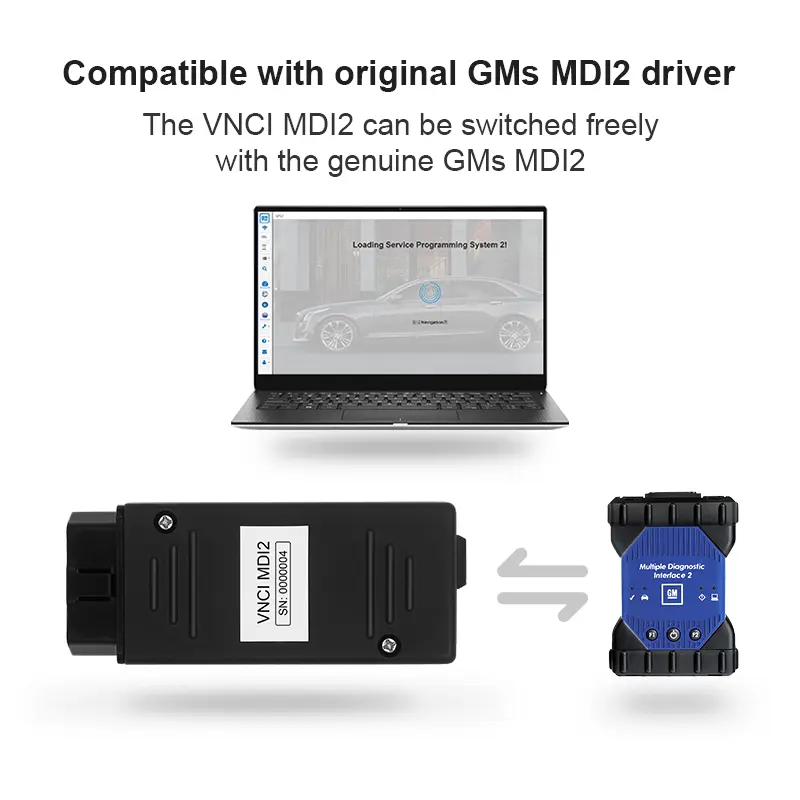

• 100% compatibility with original GM MDI2 functions

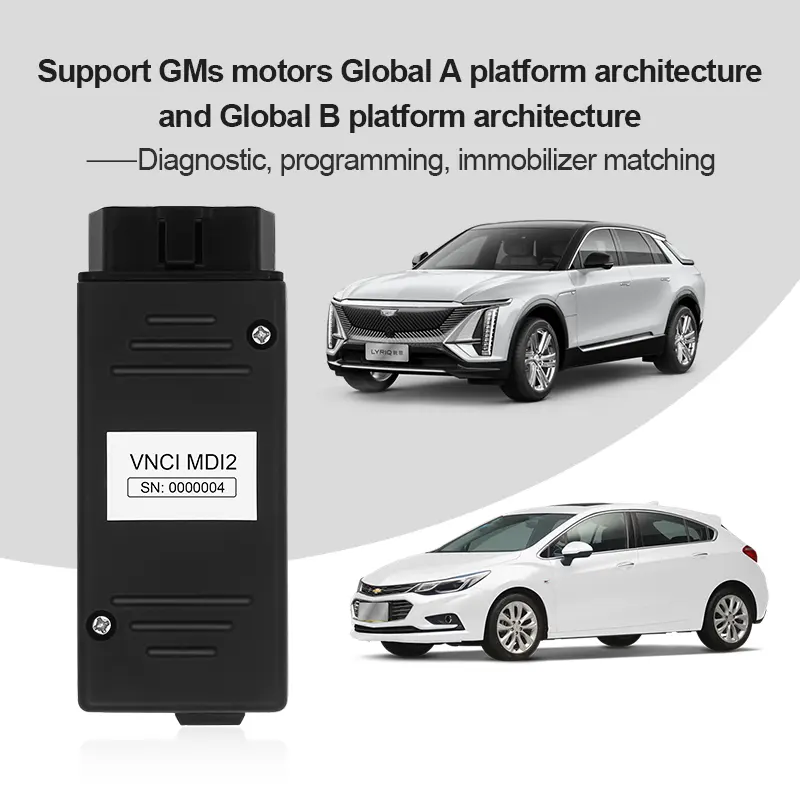

• Supports all GM Global A & B platform models for electronic system repair and diagnostics

• Compatible with RDS, GDS2, CAN Bus analyzer (Data Bus Diagnostic Tool), Tech2win, and TIS2Web-SPS offline programming

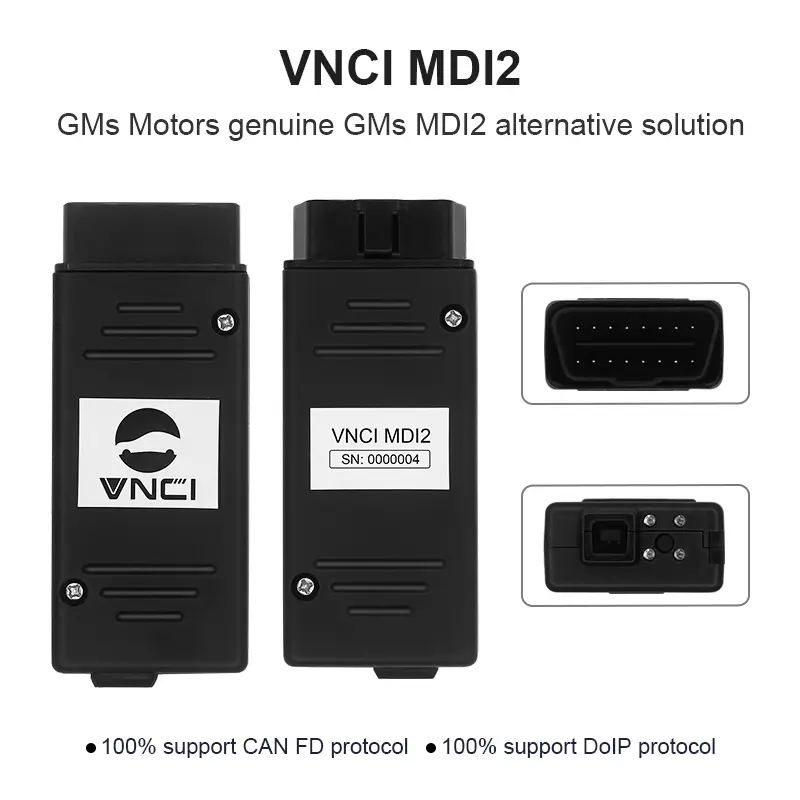

• Supports CAN FD modules, SAE J2534 Pass-Thru, DoIP, UART, Class2, KWP2000, and GMLAN (CAN) protocols

• Fully supports GM Online Techline Connect (TLC) software and the latest GM series modules

• Supports offline programming for B platform models with 27 security check decryption

• Free registration for GDS, DPS, and Tech2win software

VNCI MDI2 Functions:

• Read and clear fault codes, module diagnostics, ECU programming, and coding

• CAN FD / DoIP module diagnostics and programming

• Key matching, CCF installation, and ECU flash programming

• Pass-Thru programming for on-board controllers (PCM, ABS, VTD, etc.)

• Simulates original hardware without verification restrictions

Supported Vehicles:

• GMC, Chevrolet, Buick, Cadillac, and Opel models from 1996 to present

• Covers all GM Global A & B platform models

Connection Modes:

• USB Connection: Direct connection via USB cable

• AP (Access Point) Connection: Direct WiFi connection to the computer, similar to Bluetooth

• Station (WLAN) Connection: Connect both VNCI MDI2 and computer to the same local area network

• AP and Station modes are switchable using the device button

The VNCI MDI2 Diagnostic Interface provides fast, safe, and professional diagnostic and programming solutions for GM vehicles, supporting both online and offline functions with full compatibility with the latest software and hardware protocols.
