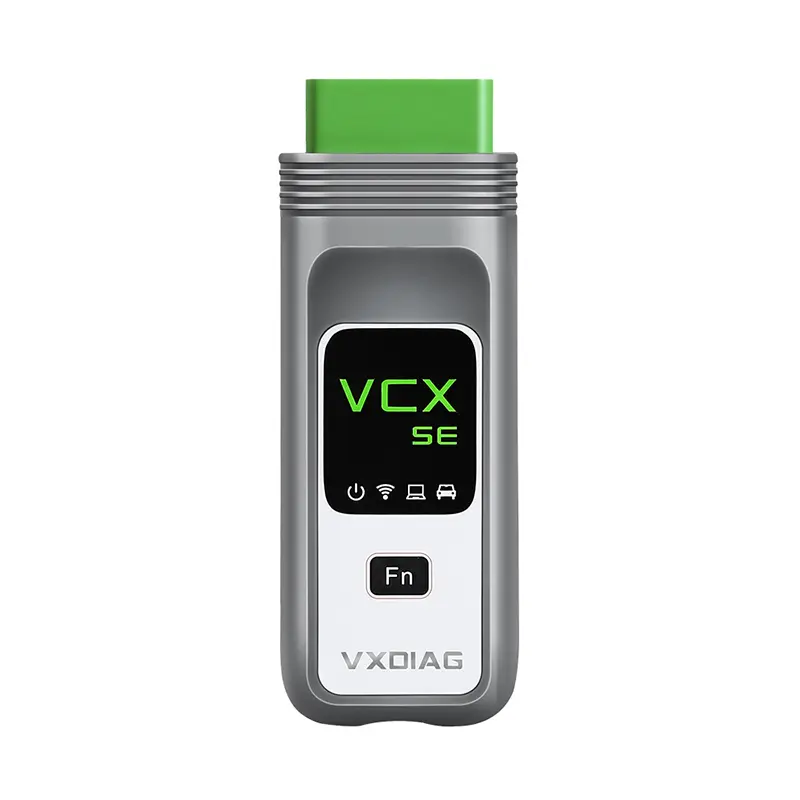

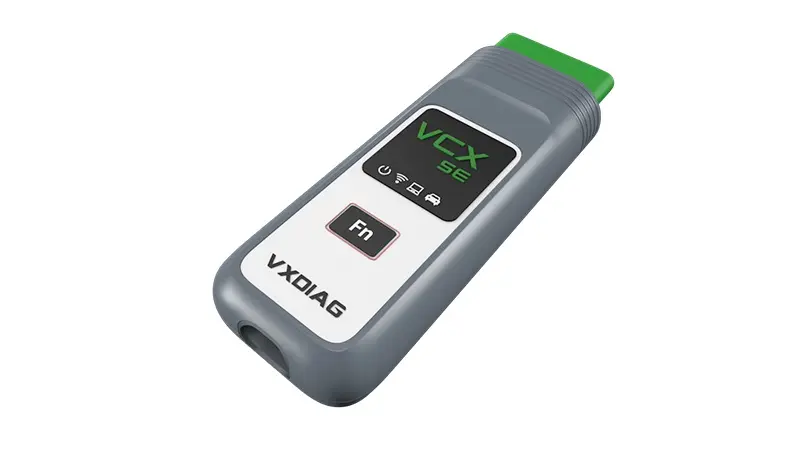

VXDIAG VCX SE With MB License C6 Diagnostic Tool
The VCX-SE is Allscanner's newest diagnostic tool for remote diagnosis platforms. Its highly integrated hardware design is compatible with a wide range of original diagnostic software, supporting both local and advanced remote diagnostics.
Product Features

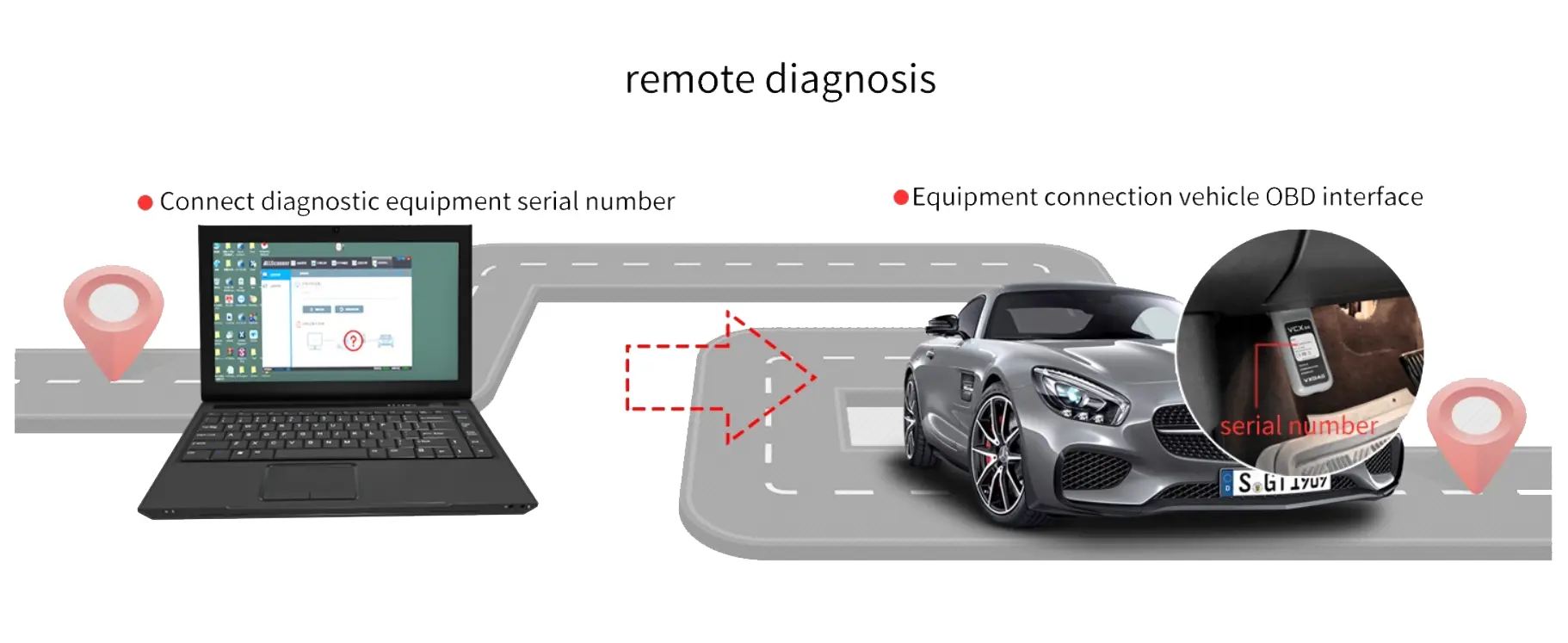

Intelligent dual-mode remote diagnosis
- Super remote diagnosis requires only equipment networking to perform online diagnostics from the original manufacturer.
- Compatible with remote diagnostics, it can support the remote diagnosis of various specialized equipment.
- The device can swiftly connect to the remote diagnosis platform with a single key.
One device supports multiple original vehicle diagnostic software softwares.
- The hardware is synchronized with the VCIs of major original manufacturers, fully supporting new models and original software updates utilizing DoIP Ethernet diagnostics.

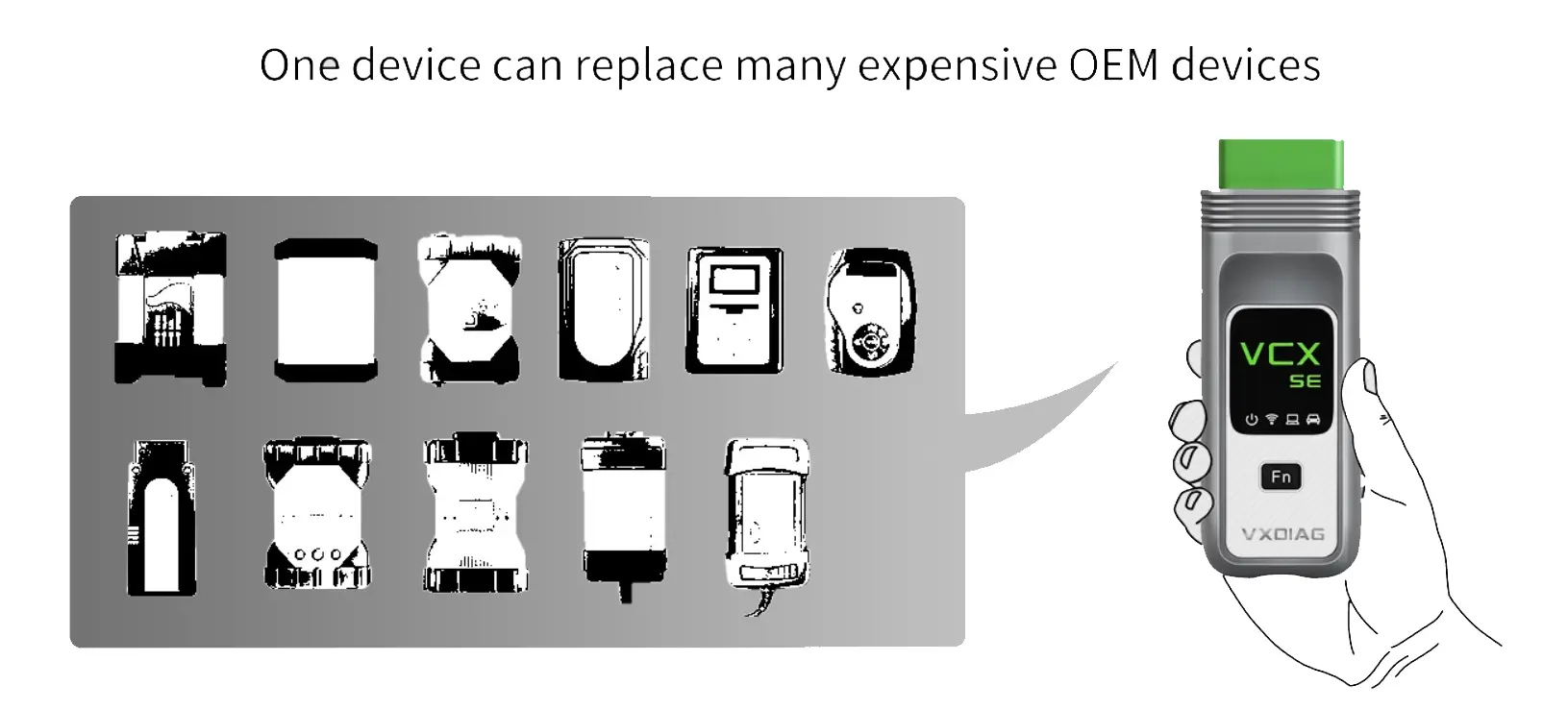

- Achieve the same diagnostic capabilities as major global brands, with one device capable of replacing multiple costly OEM units.
- All advanced diagnosis and programming functions align perfectly with those of the original manufacturers, and in some cases, even surpass their performance standards.
- Installation with just one click, supported by original drivers, and online upgrades make it user-friendly and convenient.

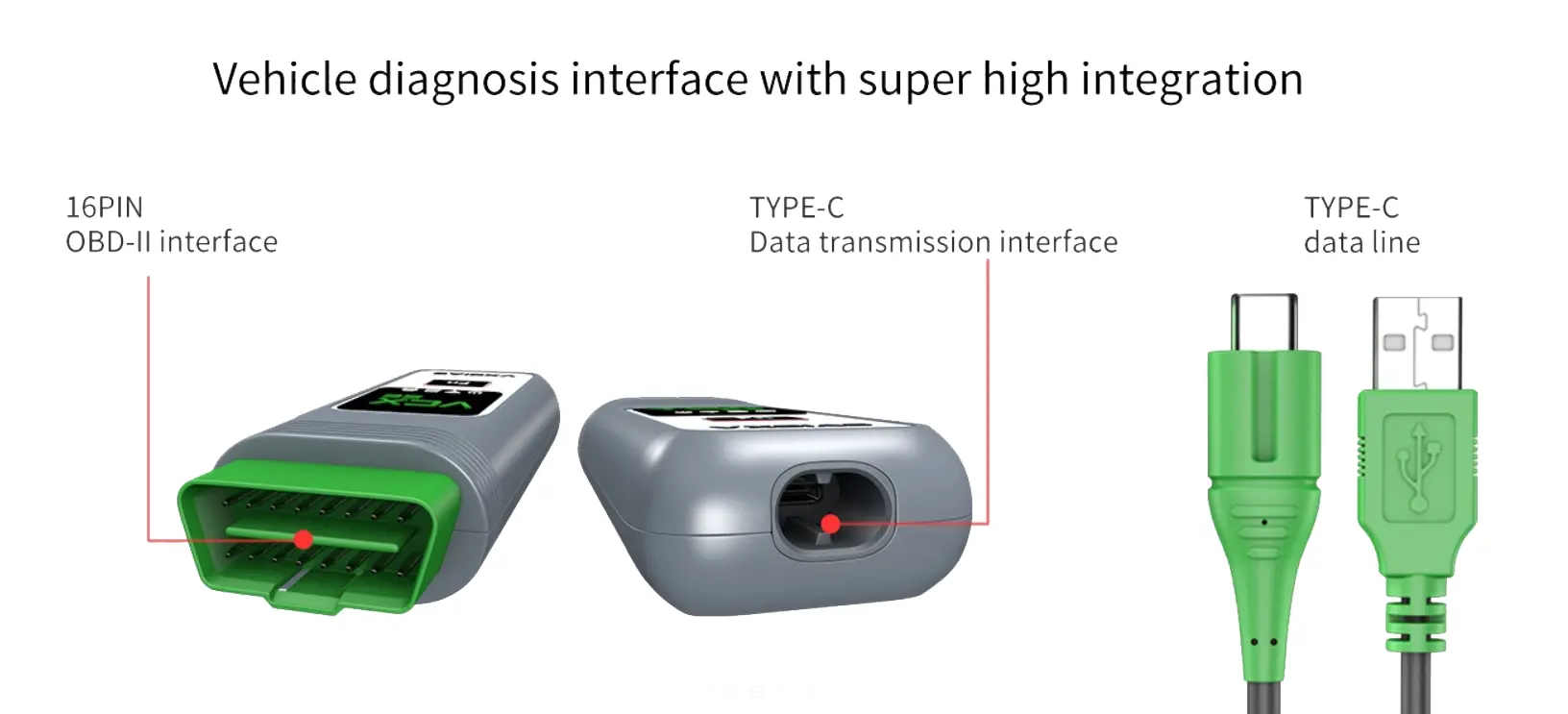

Extremely integrated interface for vehicle diagnostics
- A high-performance dual-core processor comprising a DOIP network processor and a vehicle bus processor.
- Support for four CAN bus channels, and two K-line / L-line channels, enabling high-speed concurrent communication across multiple protocols.
- The innovative OBD-II multi-channel communication hardware enables intelligent switching between traditional bus systems and DOIP networks.
- It enables wireless Ethernet diagnostics by mapping the vehicle's DOIP Ethernet to WLAN.

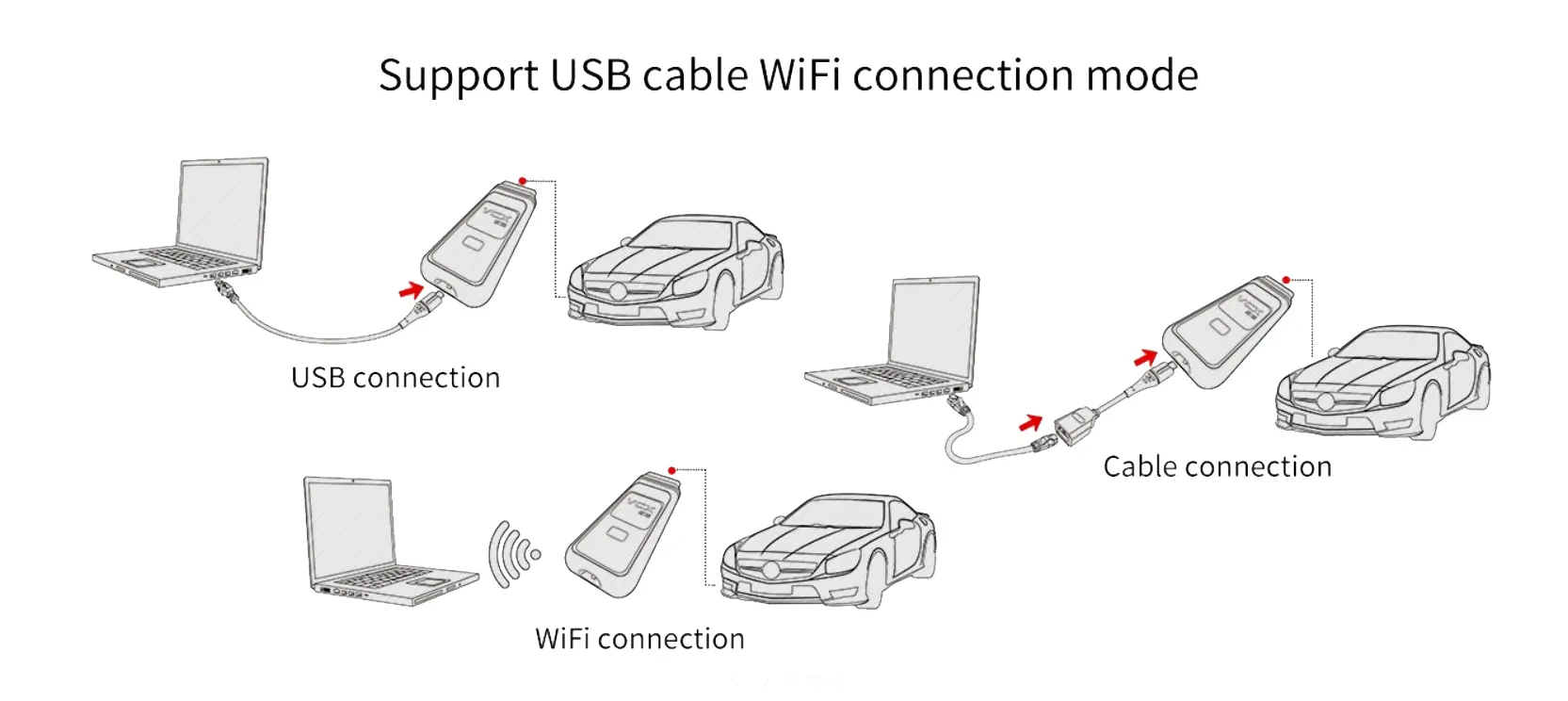

- The host communication interface supports various interfaces such as USB, RJ45, and WLAN, offering flexibility and ease of use.

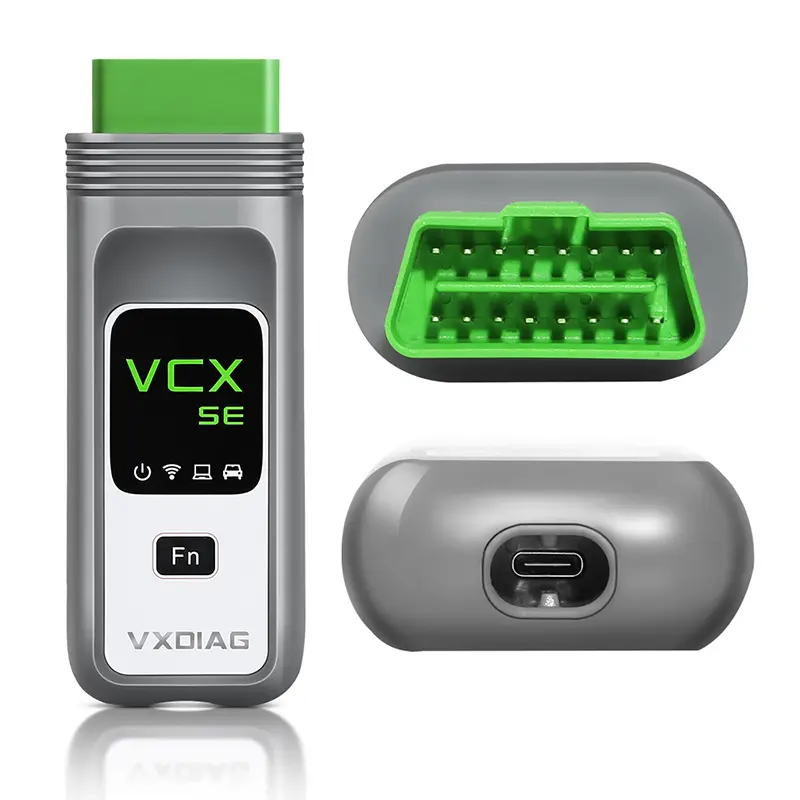

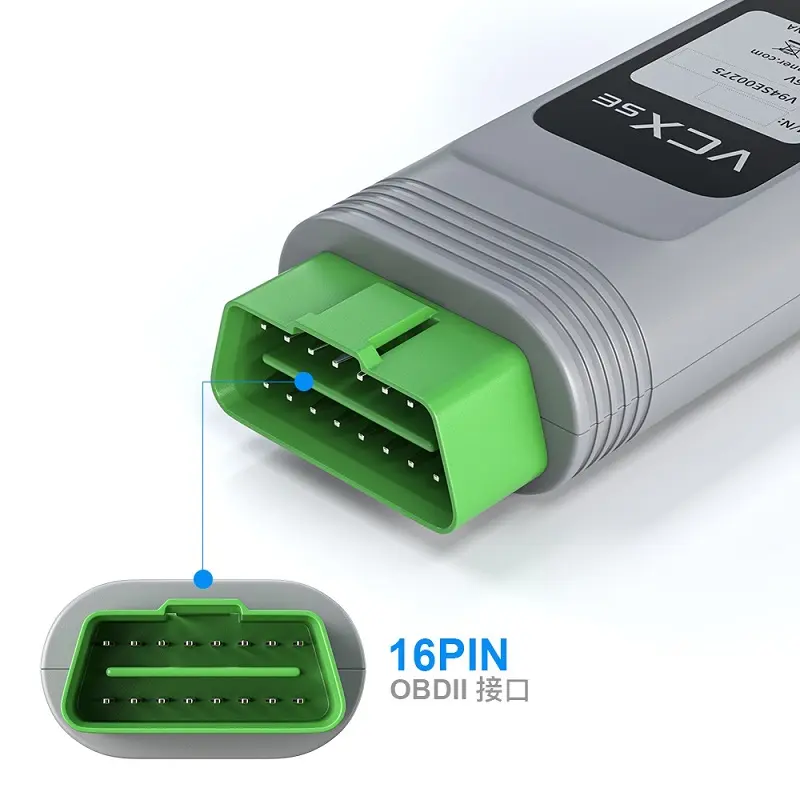

- Compact design featuring an integrated OBD-II interface, allowing for effortless plug-and-play functionality.

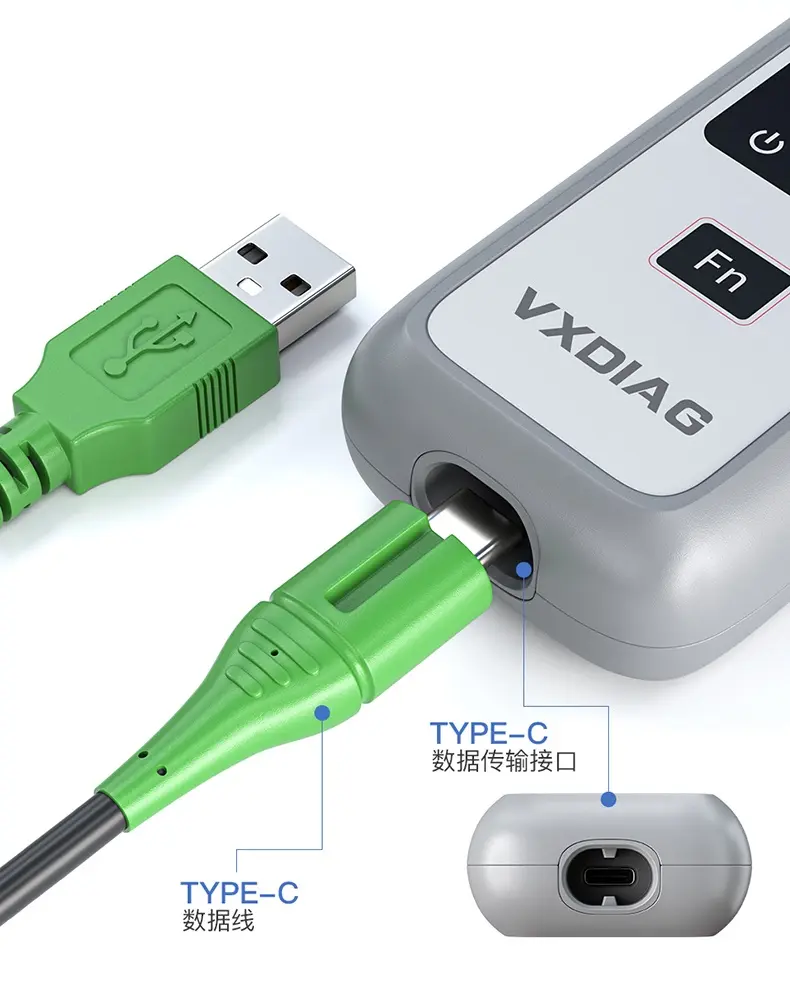

- The USB Type-C interface, with its reinforced design, ensures stable and secure plug-in and removal.
Complies with the standard design specifications of the automotive industry.
- SAE-J2534-1/2 Pass-Thru with EURO 5
- ISO-22900 MVCI & D-PDU
- ISO-13400 DoIP

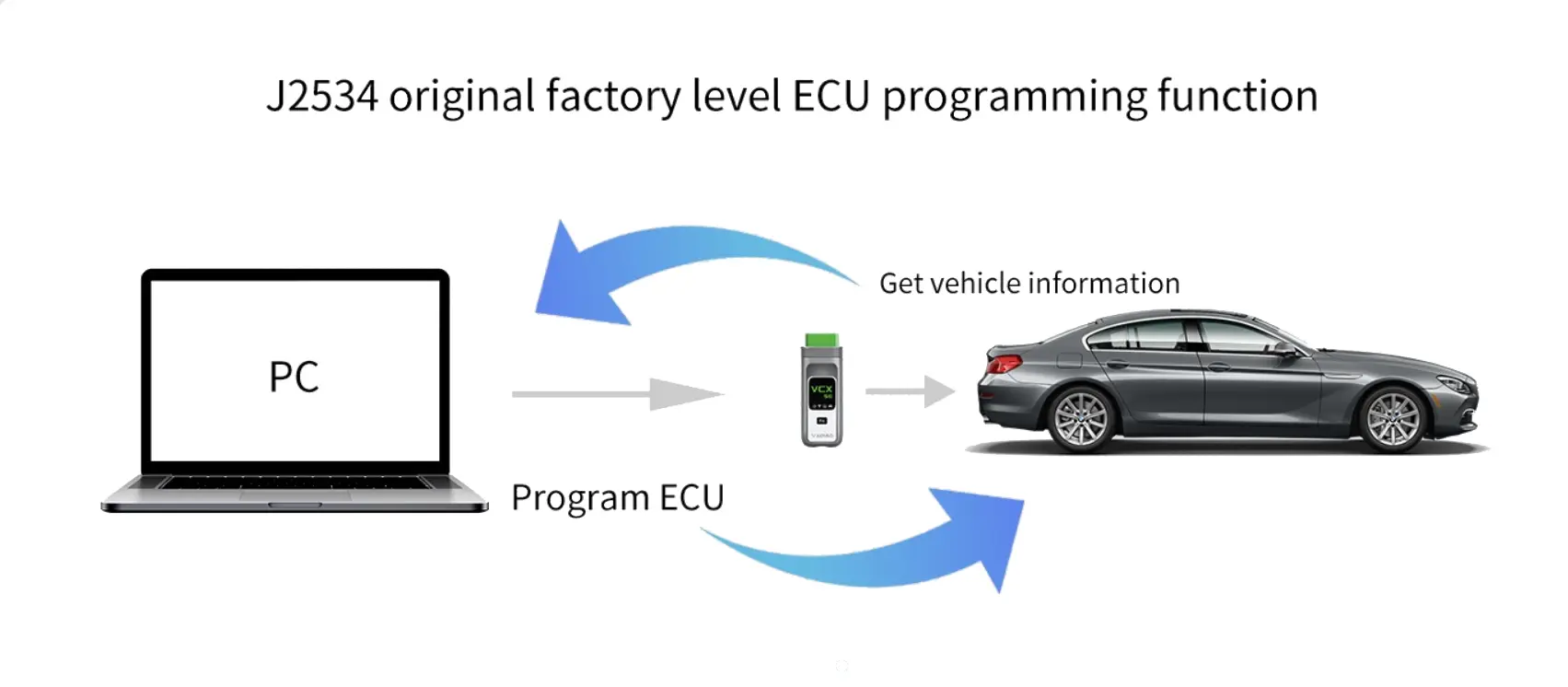

ECU programming functions at the original factory level compliant with J2534 standards.
- ECU software upgrade and calibration.
- ECU replacement, flashing, and programming
Original vehicle diagnostic functions supported
Brand |
Model |
Original diagnosis software |
| BENZ |
BenZ, Maybach, Smart, FUSO
|
XENTRY Diagnosis & DAS & DTS |
| BMW |
BMW, Rolls Royce, MINI
|
ISTA-D/P & E-Sys & INPA |
| VW |
Volkswagen, SIAT, Skoda, Bentley, Lamborghini
|
ODIS & ODIS-Engineer |
| AUDI | Audi |
ODIS & ODIS-Engineer |
| JLR |
Jaguar, Land Rover
|
JLR Pathfinder |
| JLR |
Jaguar, Land Rover
|
JLR SDD |
| VOLVO | Volvo |
Volvo VIDA |
| GM |
Chevrolet, Buick, Cadillac, Opel, Horton
|
GM GDS2 & Tech2Win & RDS |
| FORD | Ford |
FORD IDS |
| MAZDA | Mazda |
MAZDA IDS |
| TOYOTA |
Toyota, Lexus, SAIN
|
TOYOTA Techstream TIS |
| HONDA |
Honda, Acura
|
HONDA Diagnostic System HDS |
| SUBARU | Subaru |
Select Monitor SSM3/SSM4 |
Product Accessories

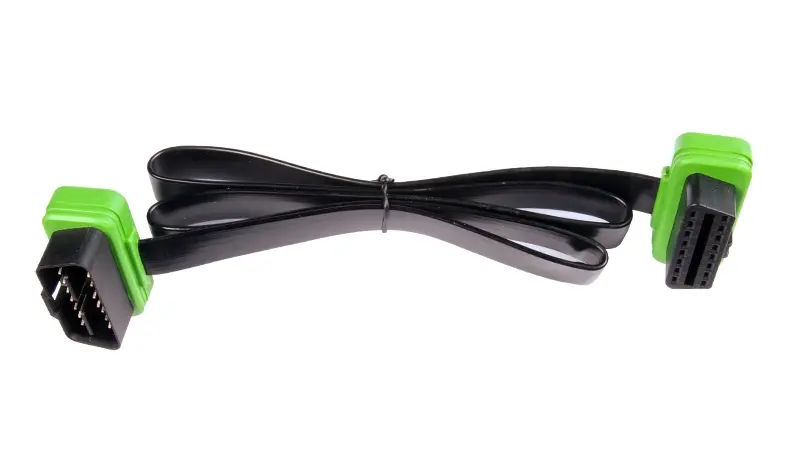

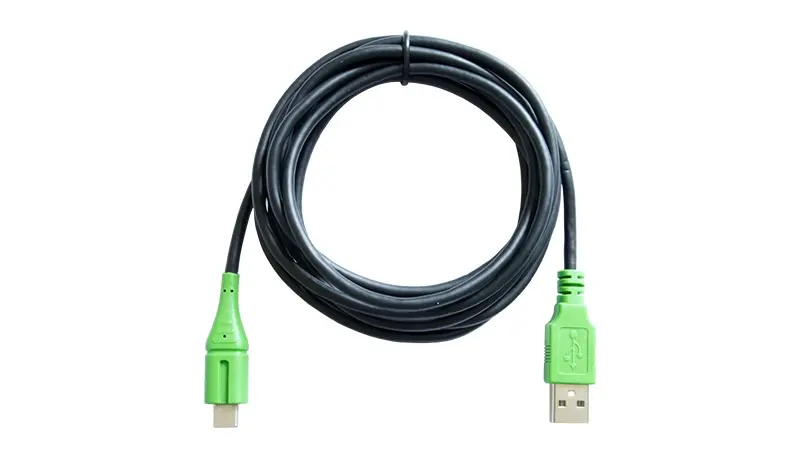

Device of VCX SE OBD extension cable USB communication cable

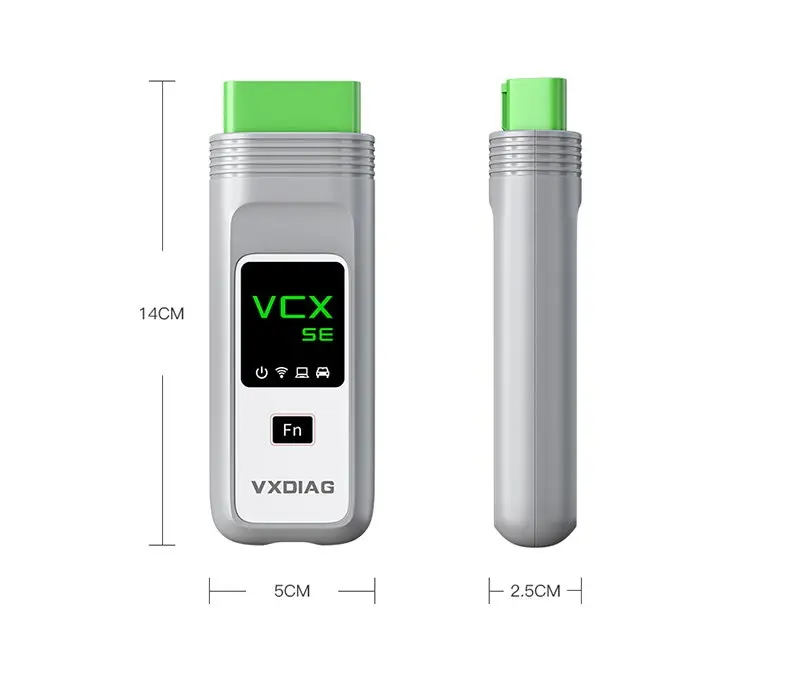

140 x 50 x 25 (mm) USB-C to USB-A，1.5m USB-C to USB-A，1.5m

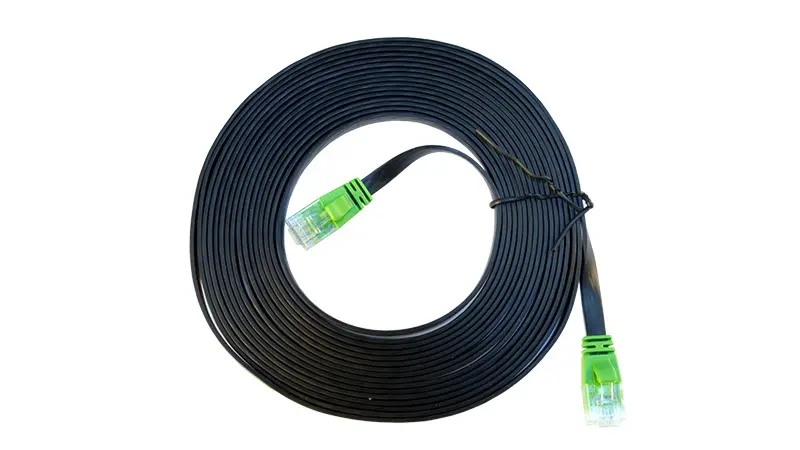

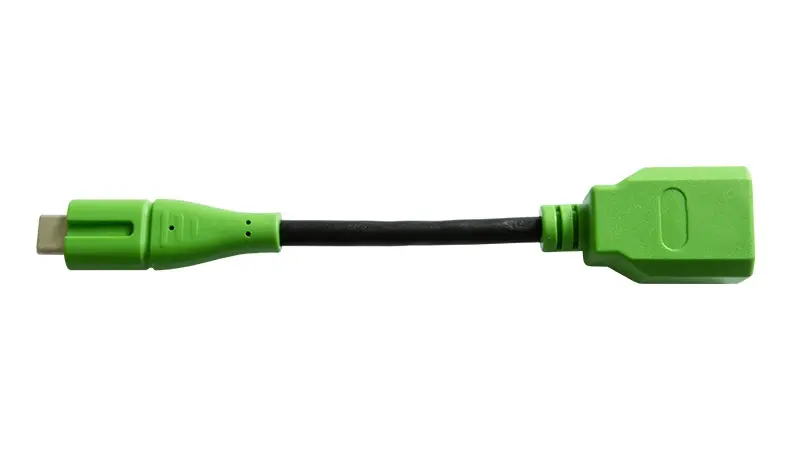

RJ45 network port adapter LAN Ethernet cable Driver disc
USB-C to RJ45 network port, 0.2m CAT5 shielded cable, 3msssssssss
User’s Manual Warranty card Packing box
178 x 132 x 46 (mm)
Remote diagnosis service accessories

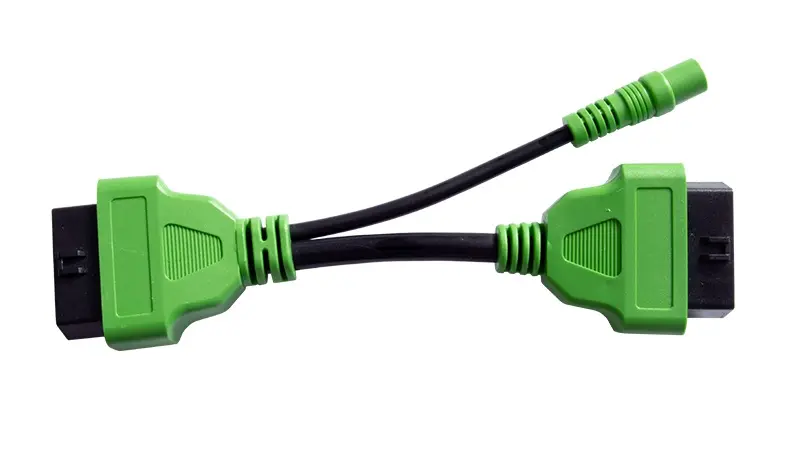

REMOTE-OBD adapter REMOTE-DoIP adapter
OBD female bus to OBD male bus (with power supply), 0.2m OBD female bus to OBD male bus (with power supply), 0.2m

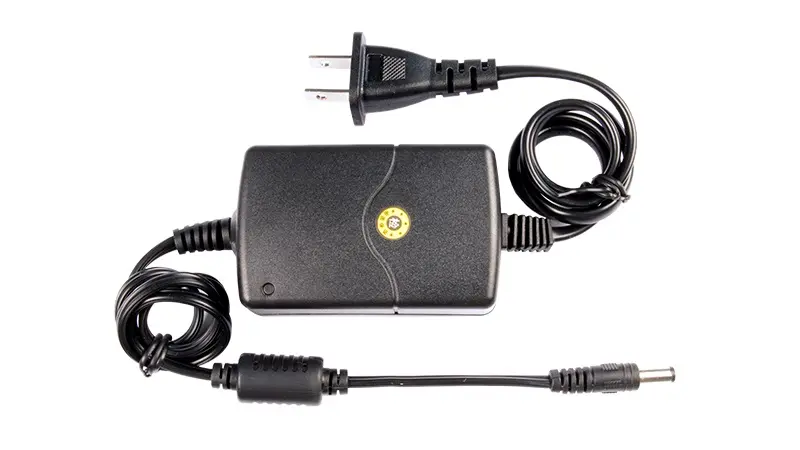

The power adapter
DC12V 2A power adapter, 1.5m
