Xhorse VVDI BIMTool Pro – Enhanced Updated Edition BMW Diagnostic & Key Programming Device

The Xhorse VVDI BIMTool Pro (Updated Enhanced Edition) is a powerful, next-generation BMW diagnostic, programming, and key-making tool designed for professional locksmiths and automotive technicians. With upgraded hardware, expanded communication options, and advanced BMW coding capabilities, this device delivers exceptional performance across E, F, and G-series BMW vehicles.

Key Features:

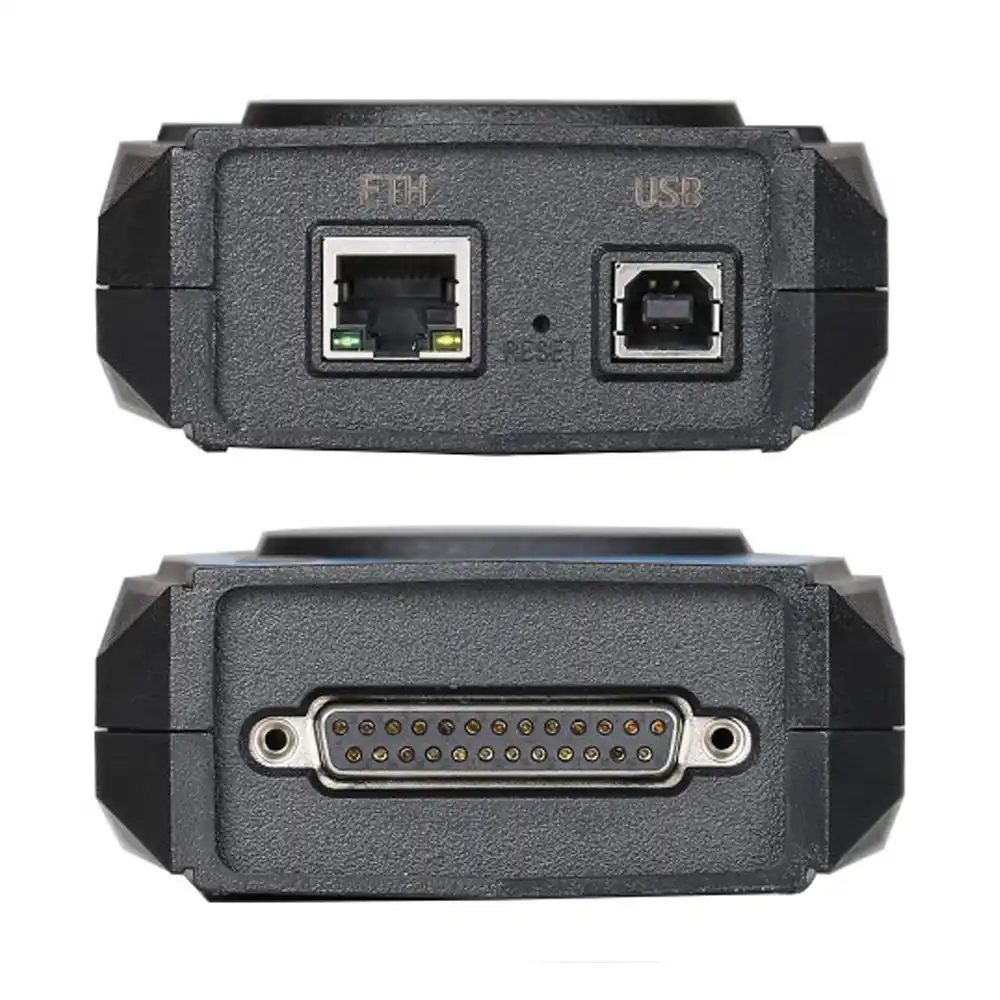

• Ethernet Port Added: Supports 10/100 Mbps high-speed programming via network cable.

• WiFi 802.11 b/g (150 Mbps): Enables OTA firmware updates and wireless operation.

• DoIP Support: Allows BMW DoIP vehicle/module programming.

• BMW ECU Programming (NBT/CIC): Supports network-cable programming for multimedia units.

• F/G Chassis Programming Boost: Dramatically faster coding/programming when using Ethernet.

• Compatible with BMW E-Sys & Rheingold: Can fully replace BMW-specific diagnostic devices.

• Direct ISN Read (No Disassembly): Supports N13, N20, N55, N63 ECUs directly via OBD.

• Universal Windows Compatibility: Works on Windows 7, 8, 10 with no OS limitations.

Important Notes:

1. Do not use Ethernet and USB cables simultaneously.

   • USB for Key Programming, Ethernet for Coding/Programming

2. When connecting to PC, the screen will show “Booting”, then “BMW” after ~20s, indicating a proper connection.

3. VVDI BIMTool Pro and VVDI BMW Tool use the same software, but some functions require BIMTool hardware.

VVDI BIMTool Pro Main Functions:

1. OBD Key Learning

Supports: CAS1, CAS2, CAS3, CAS3+, CAS3+ ISTAP, CAS4, CAS4+

• Read/write key information

• Key learning

• Read/write EEPROM

• Read/write ECU & gearbox sync codes

• Sync ECU ↔ CAS and CAS ↔ ELV

• Read ISN via OBD

• Reset KM via OBD

• Disable/enable keys

2. File Key Making

• Compatible with CAS1–CAS4+ systems

• Reads EEPROM & sync data

• Generates keys from files

• Supports ISTAP variants

3. FEM/BDC System Functions

• Read encrypted FEM/BDC keys via OBD

• Key learning (via programmer or ignition)

• Erase key positions

• Disable/enable keys

• ISN reading via OBD

• Mileage reset

• Backup/restore coding

• Exchange used FEM/BDC units

• Close/open transport mode

• Reset ECU lock

• Turn on ignition without working key

4. E-Series Programming & Coding

• Auto chassis detection

• Scan all vehicle modules

• FA (vehicle order) read/write

• HW/ZB number input for programming

• Calculate default coding

• Edit detailed coding parameters

• Multi-language DTC support

5. F-Series Programming & Coding

• Auto chassis detection

• FA read/write

• Programming file calculation from ECU/database

• Default coding generation

• Special coding functions

• Multi-language DTC support

6. CAS EEPROM Dump Key Learning

Supports:
EWS1/2/3/4, CAS1 (0K50E), CAS2 (2K79X), CAS3 (0L01Y), CAS3+ (0L15Y), CAS3++ ISTAP (0L15Y/0M235), CAS4+ (5M48H)

• Prepare dealer keys

• ISN extraction from working keys

• Disable/enable keys

7. 8HP Gearbox Renew

• Clear gearbox ISN

• Backup/restore coding

• Reset adaptations

8. ECU Functions

• Read sync codes from E-series ECUs

• Read ISN from E/F-series ECUs via OBD (MSV80, MSD80/81/812/851, MED17xx, MEVD17xx, B38, N46, N45, X63TU, and others)

• Write ECU ISN & VIN via OBD

• Change ISN/VIN with EEPROM dump

• Exchange ECUs and CAS units

9. CAS Repair (OBD & EEPROM)

• Repair ISTAP CAS

• Repair CAS EEPROM (service mode)

• Supports CAS1–CAS3++ ISTAP

• Restore ISN and VIN for lost-all situations

10. File KM Calibration

Supports odometer correction for:

• EWS1-EWS4

• CAS1–CAS4+

• E-series dash (M35080)

• F-series dash (35160, 35128)

Hitag2 Key Unlock: Supported via programmer
EWS3/EWS4: Read/write EEPROM via CAS plug

Specifications:

• Manufacturer: Xhorse

• Condition: New
