Yanhua - ACDP Module 36 for ZF Gearbox Cloning with TC1782, TC275, and TC277 processors

Yanhua - ACDP Module 36 for ZF Gearbox Cloning with TC1782, TC275, and TC277 processors

The Yanhua ACDP Module 36 is designed for professional ZF gearbox cloning using TC1782, TC275, and TC277 processors. It works with the Yanhua Mini ACDP system to provide a safe and efficient solution for reading, writing, and cloning supported transmission control units without complicated manual wiring.

This module supports a wide range of gearbox types, including ZF Gen3 8HP, 9HP48/9HP50, Porsche PDK2-TC400, and Mercedes-Benz VGS3-FDCT gearboxes. It is ideal for automotive locksmiths, ECU/TCU programmers, and workshops handling gearbox replacement, repair, or cloning jobs.

Supported Gearbox Cloning Functions:

• Supports BMW 3rd Generation 8HP TC275/TC277 gearbox cloning.

• Supports 2017+ JLR 3rd Generation 8HP TC275 gearbox cloning.

• Supports JLR 9HP50 TC275 gearbox cloning.

• Supports JLR, Honda, Jeep, Chrysler, and other 9HP48 TC1782 gearbox cloning.

• Supports Porsche 8DT / PDK2-TC400 TC275 gearbox cloning.

• Supports Mercedes-Benz VGS3-FDCT TC275 gearbox cloning.

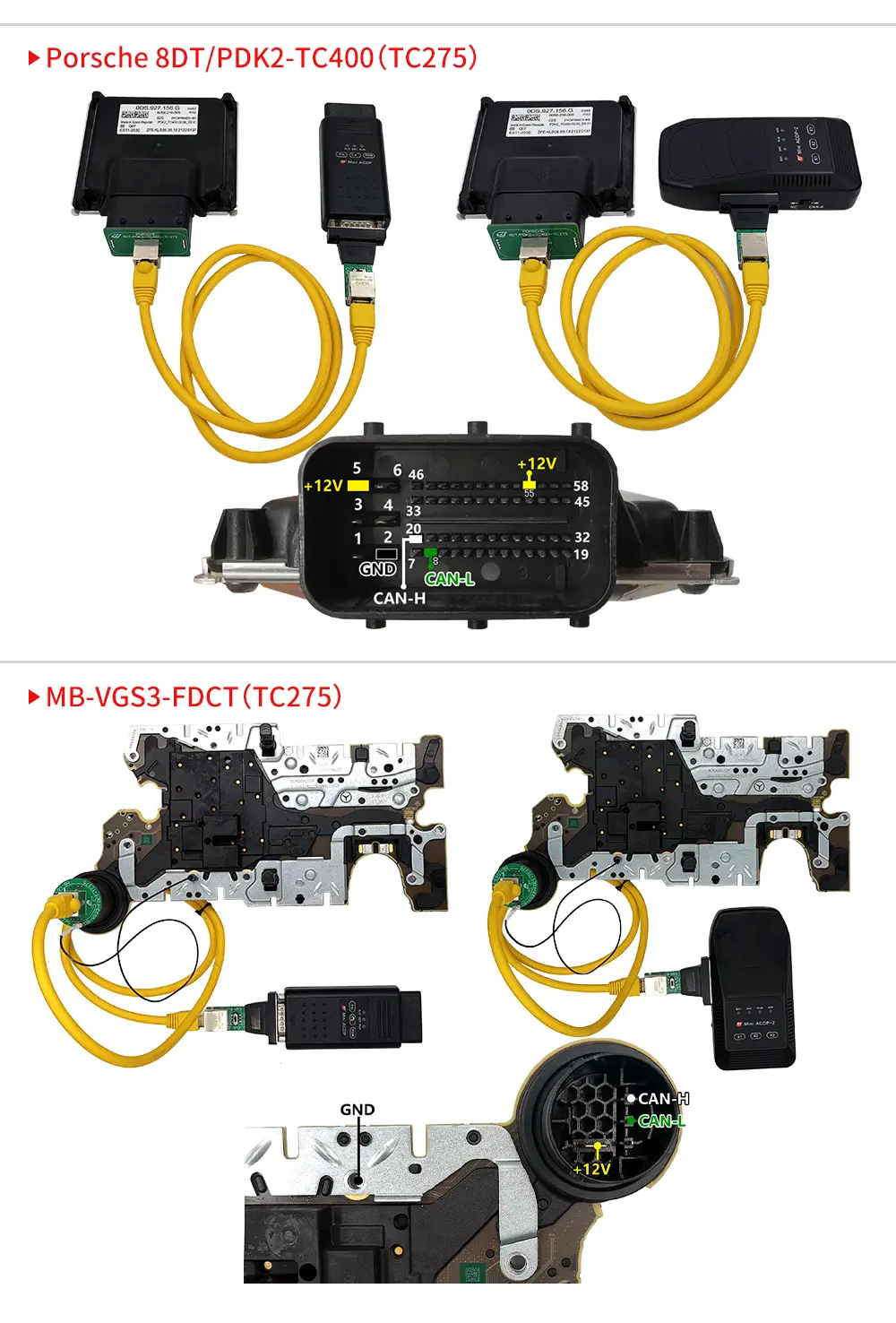

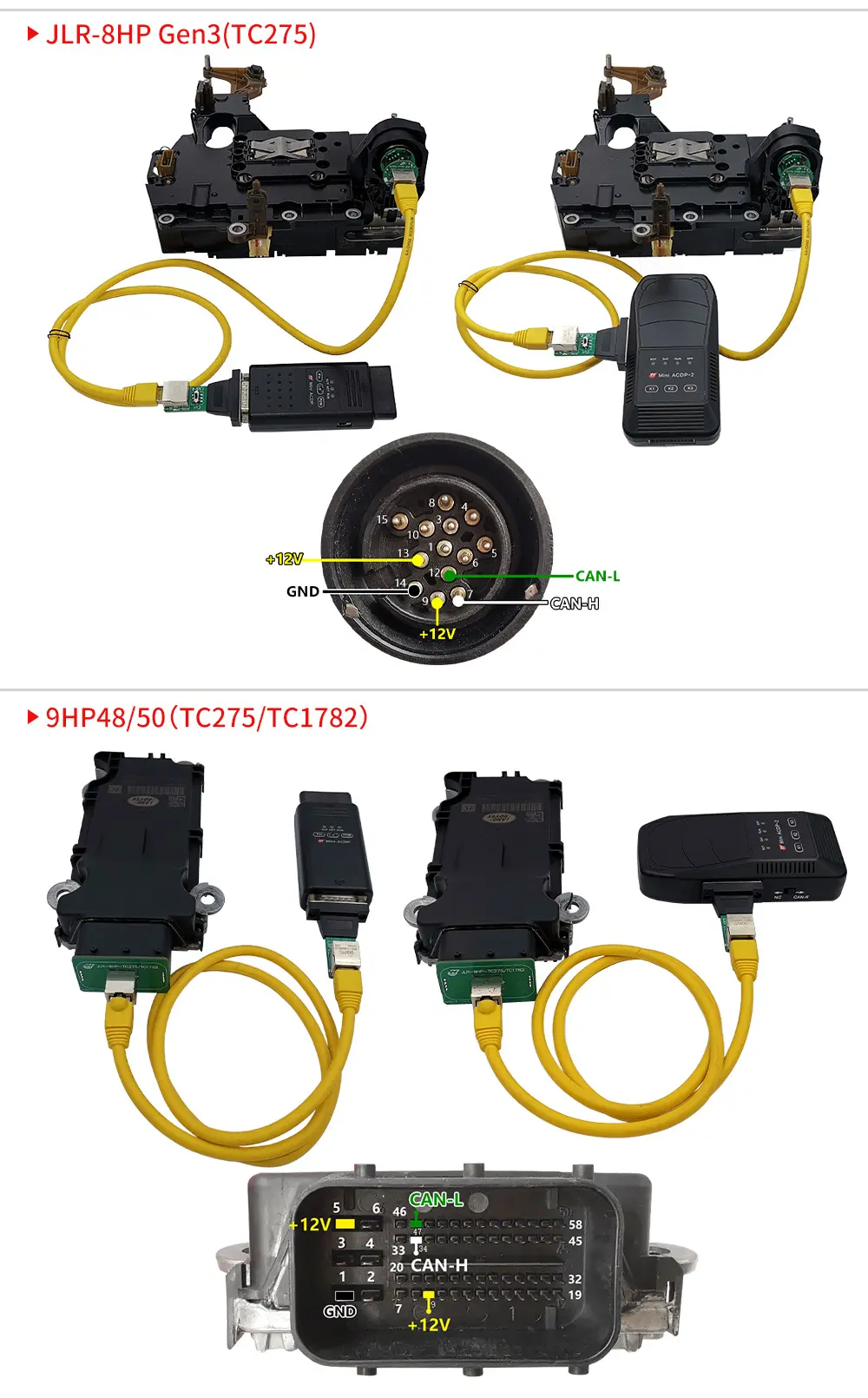

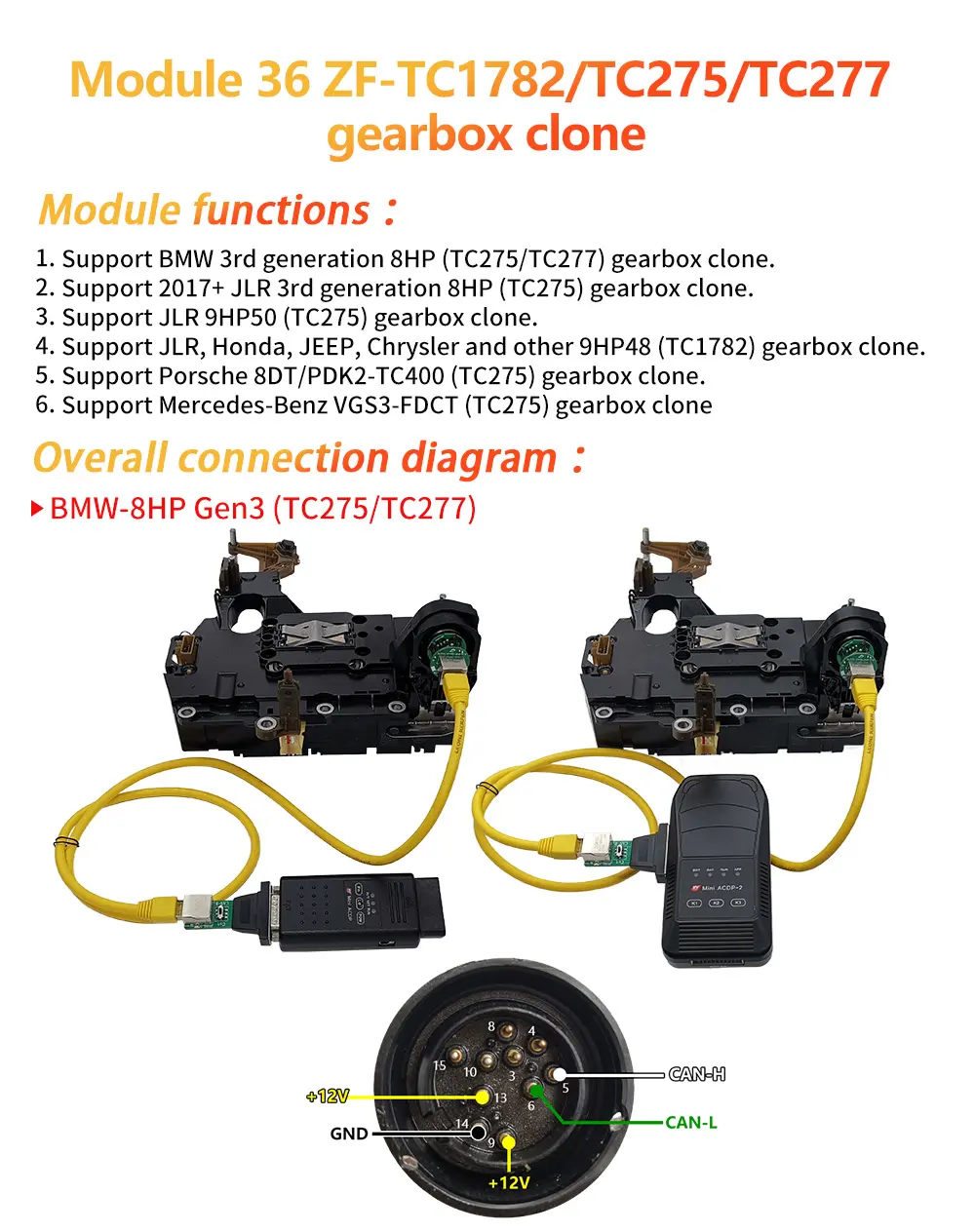

Supported Connection Diagrams:

• BMW 8HP Gen3 TC275/TC277

• JLR 8HP Gen3 TC275

• 9HP48 / 9HP50 TC275/TC1782

• Porsche 8DT / PDK2-TC400 TC275

• MB VGS3-FDCT TC275

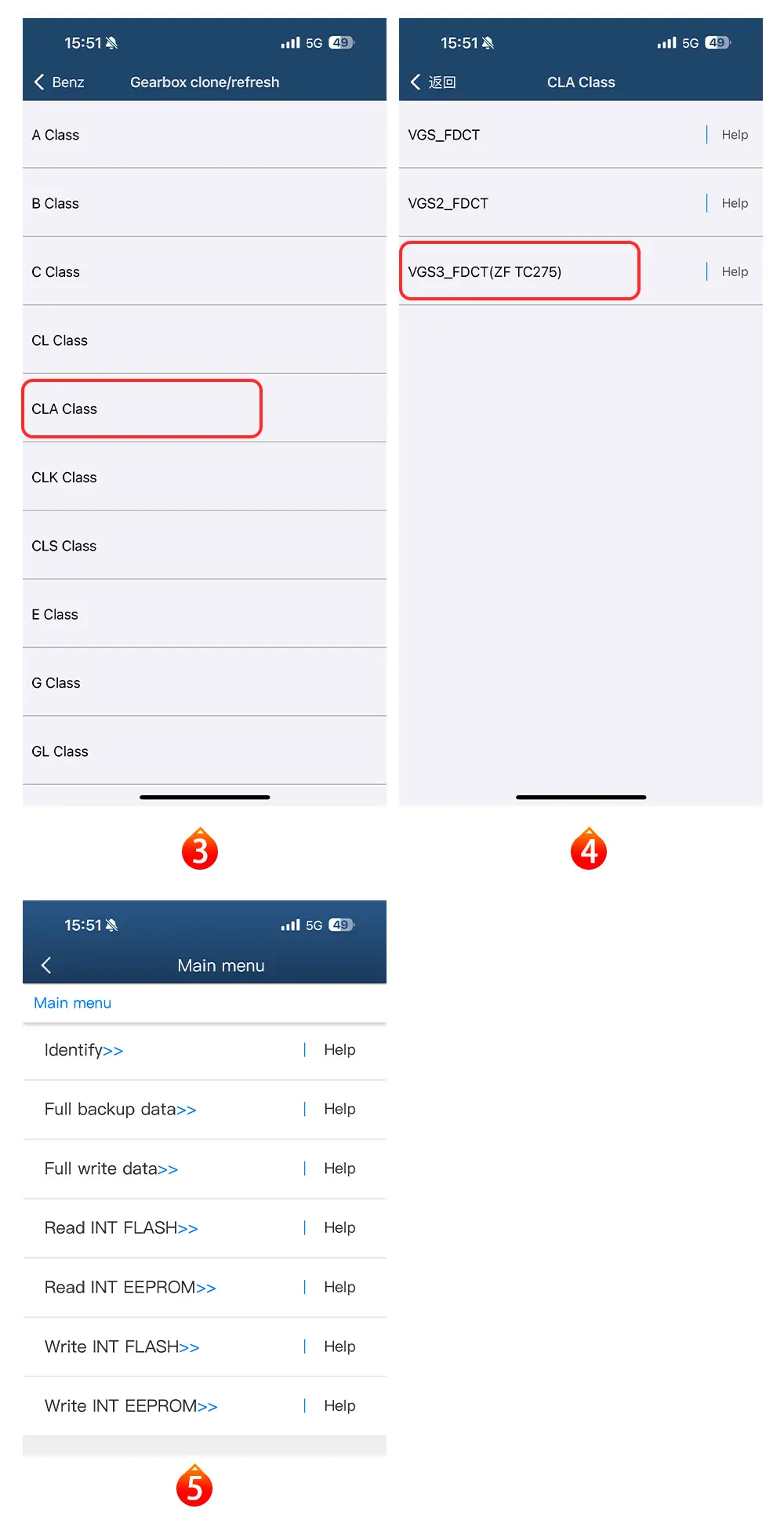

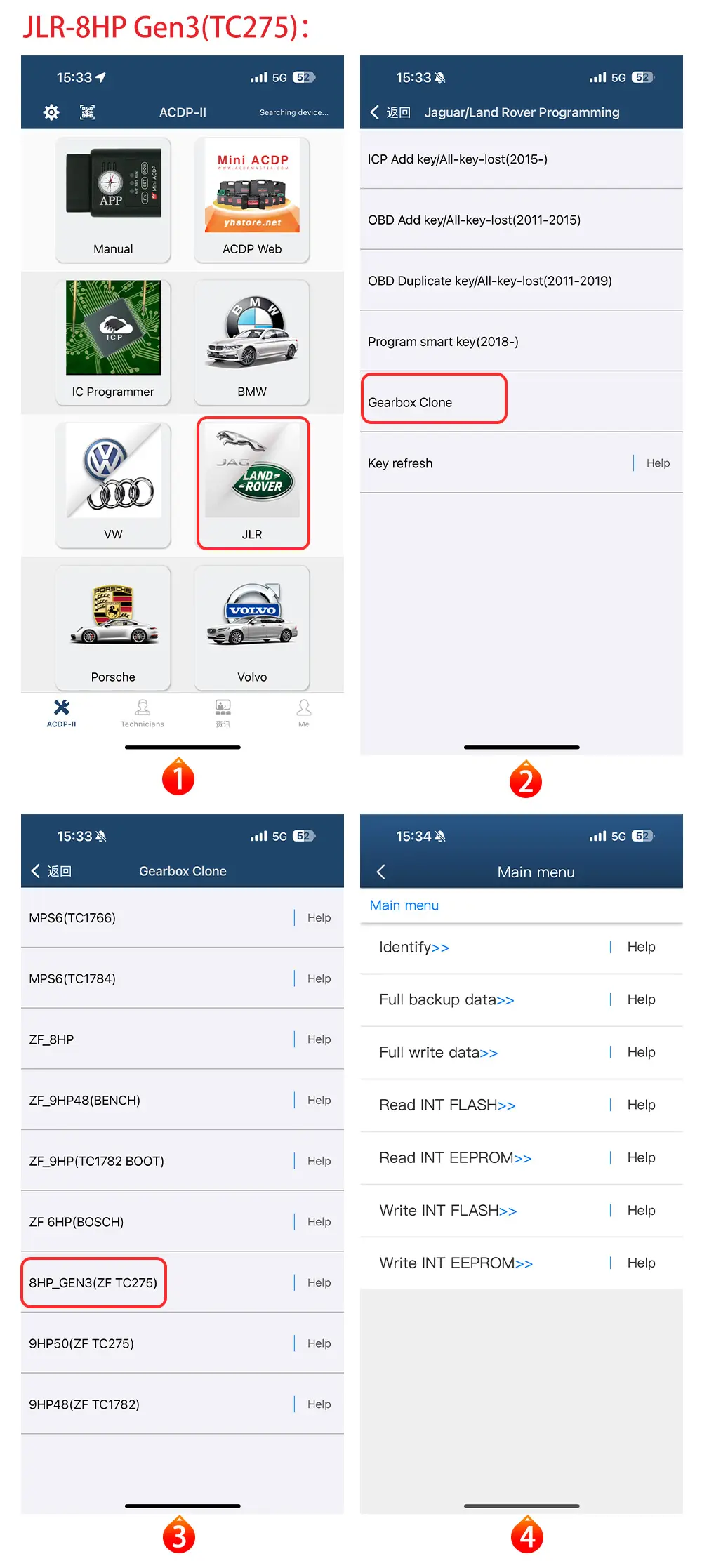

APP Operation Interface Support:

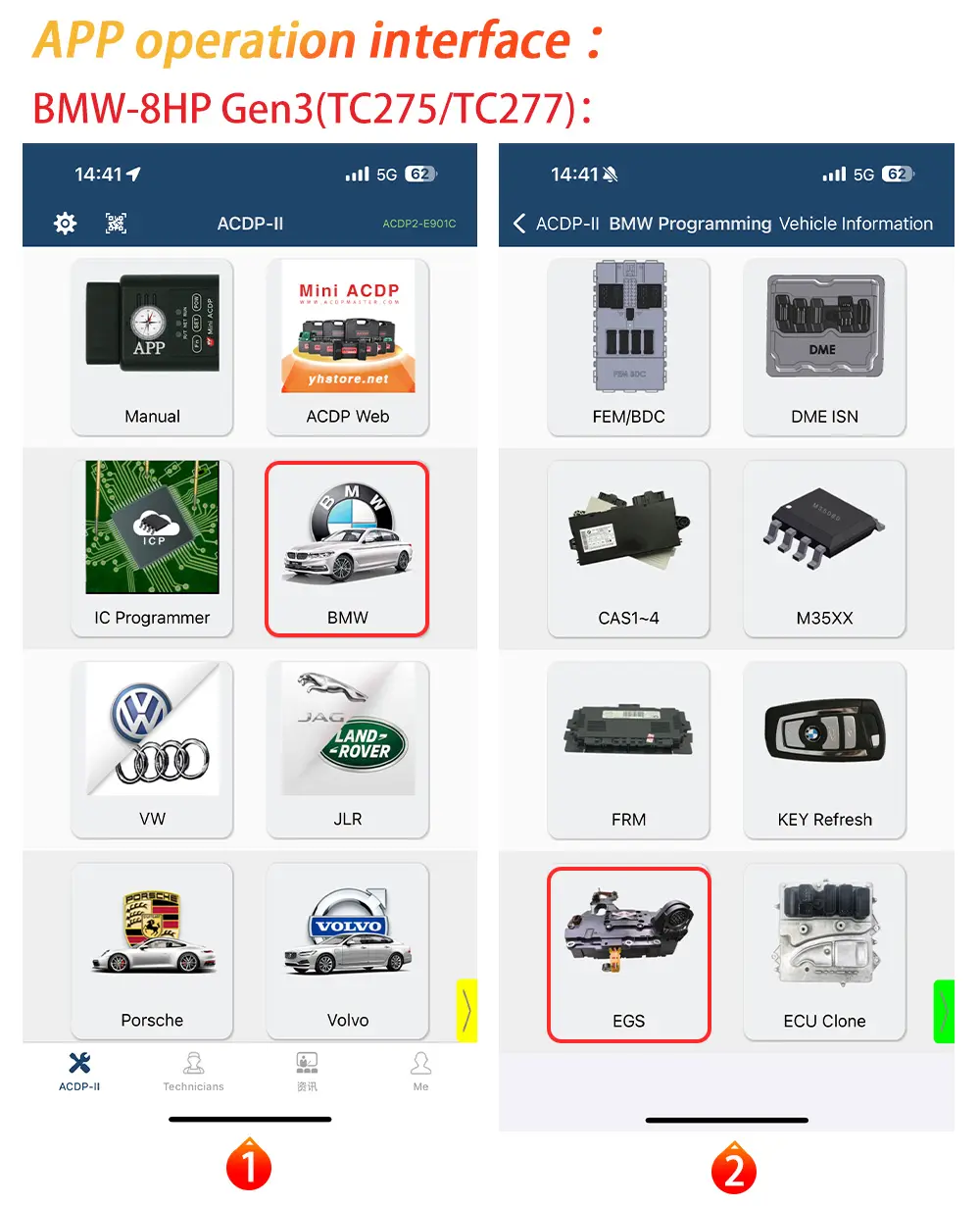

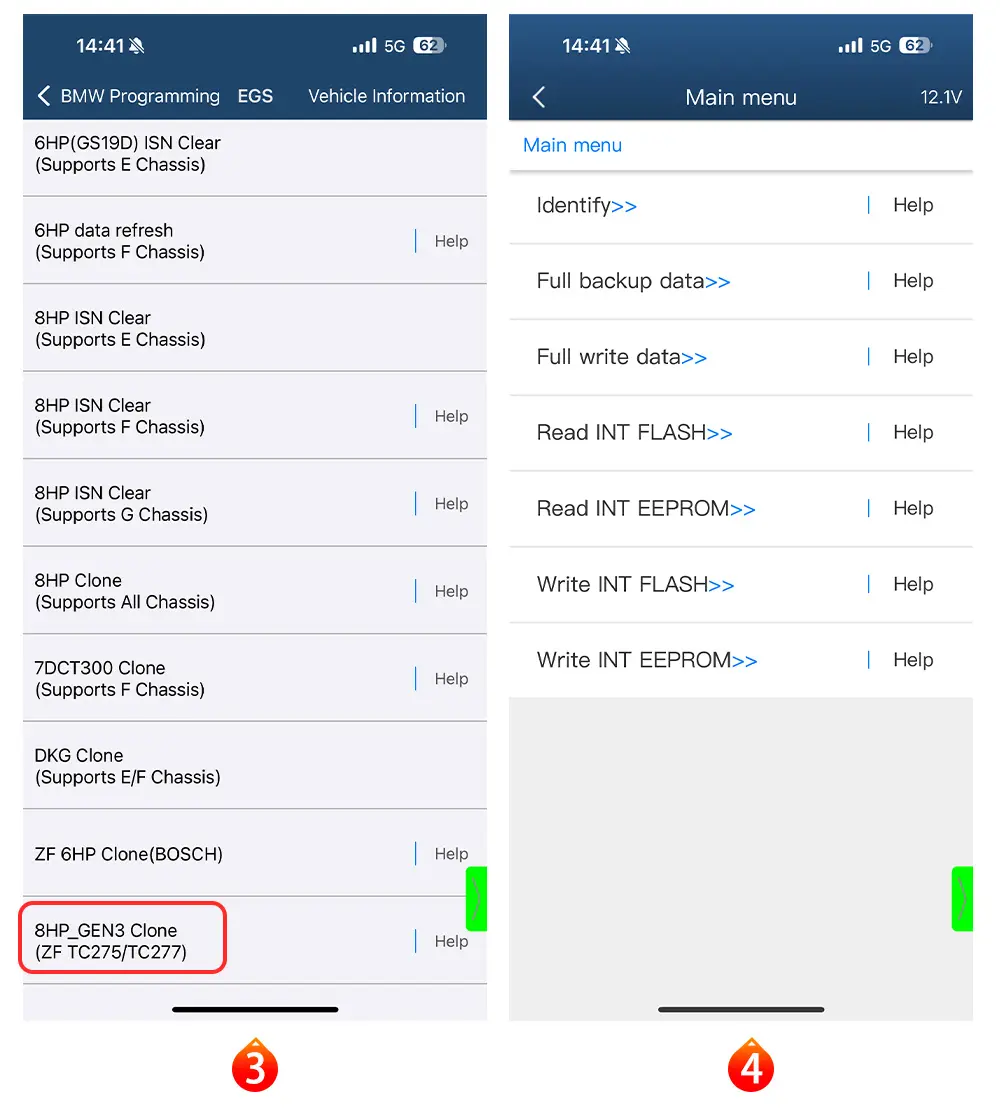

• BMW 8HP Gen3 TC275/TC277

• JLR 8HP Gen3 TC275

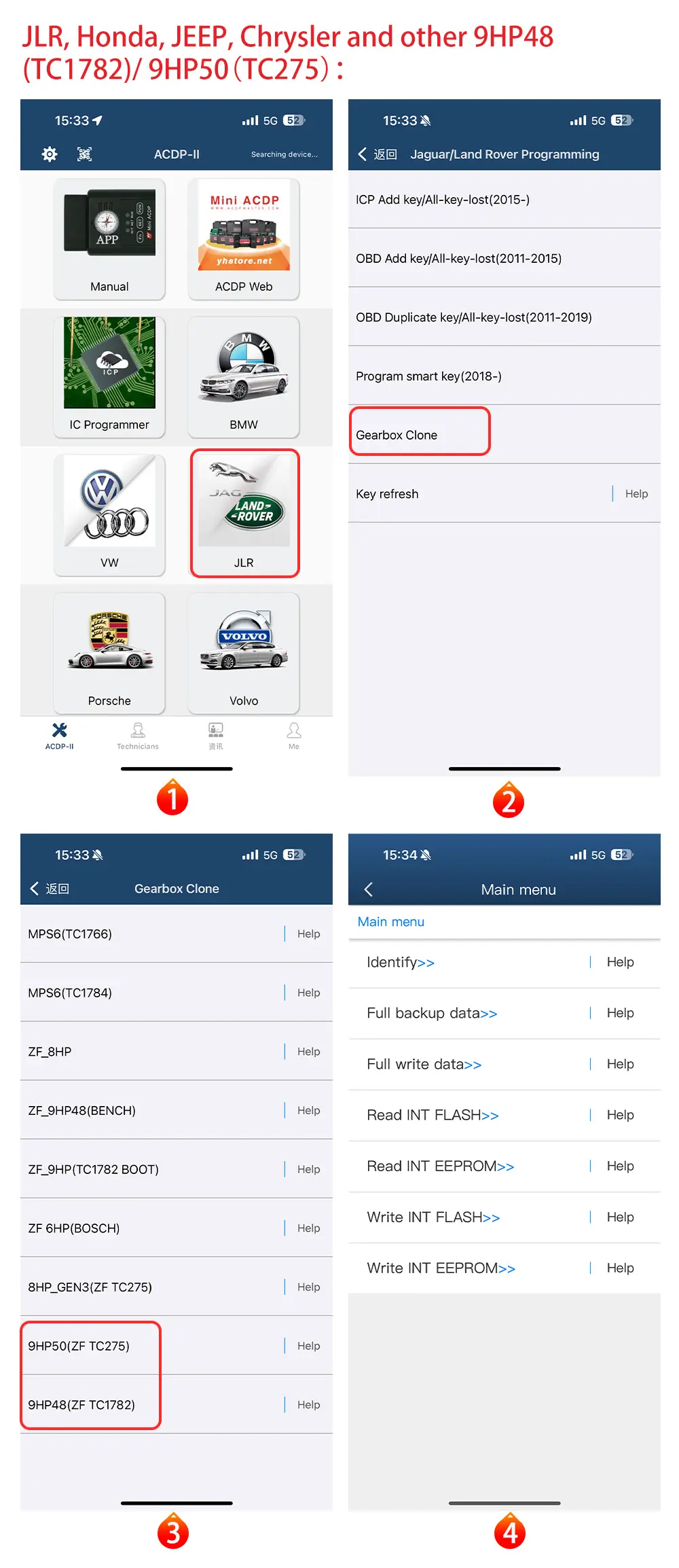

• JLR, Honda, Jeep, Chrysler, and other 9HP48 TC1782 / 9HP50 TC275

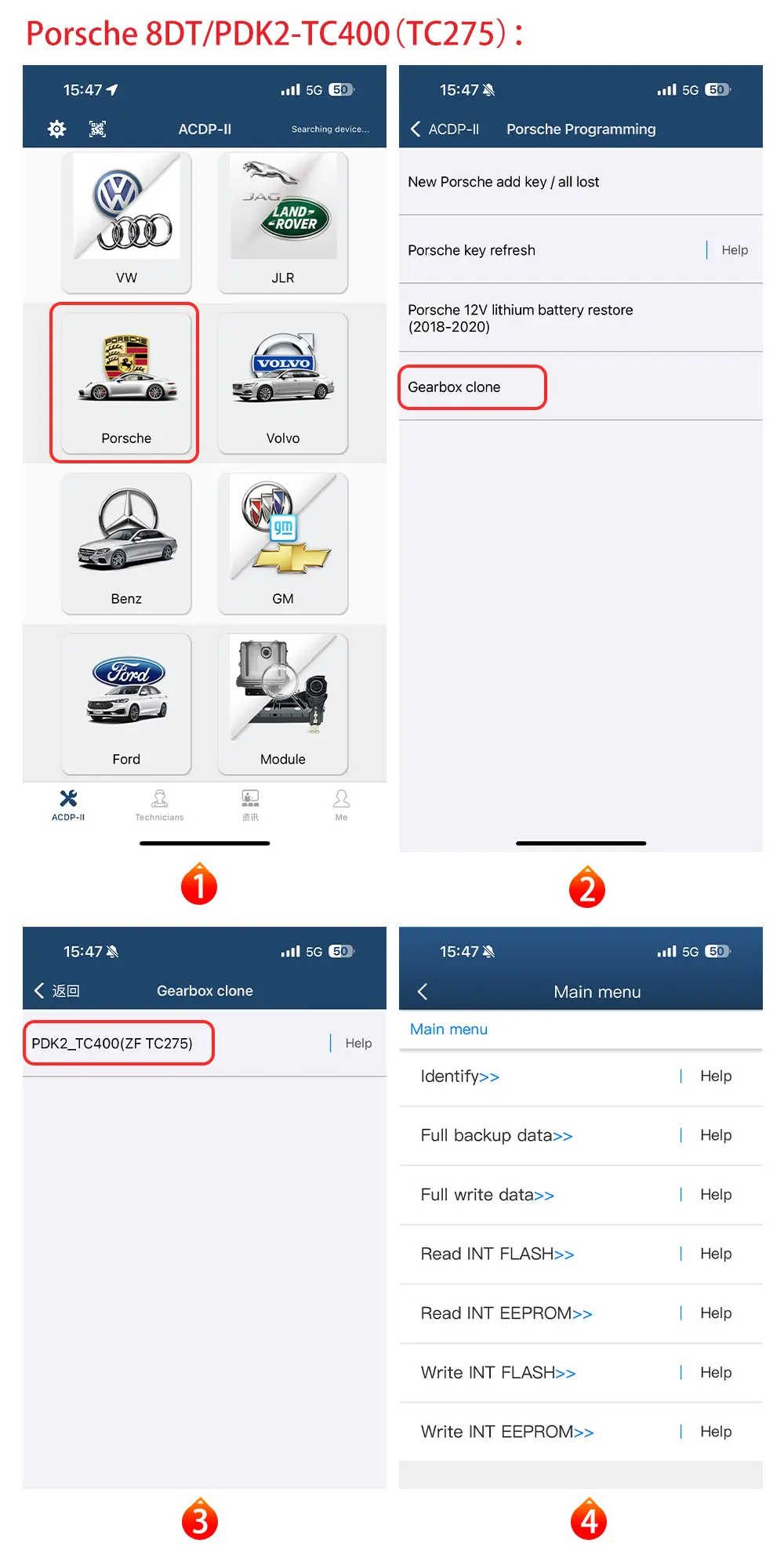

• Porsche 8DT / PDK2-TC400 TC275

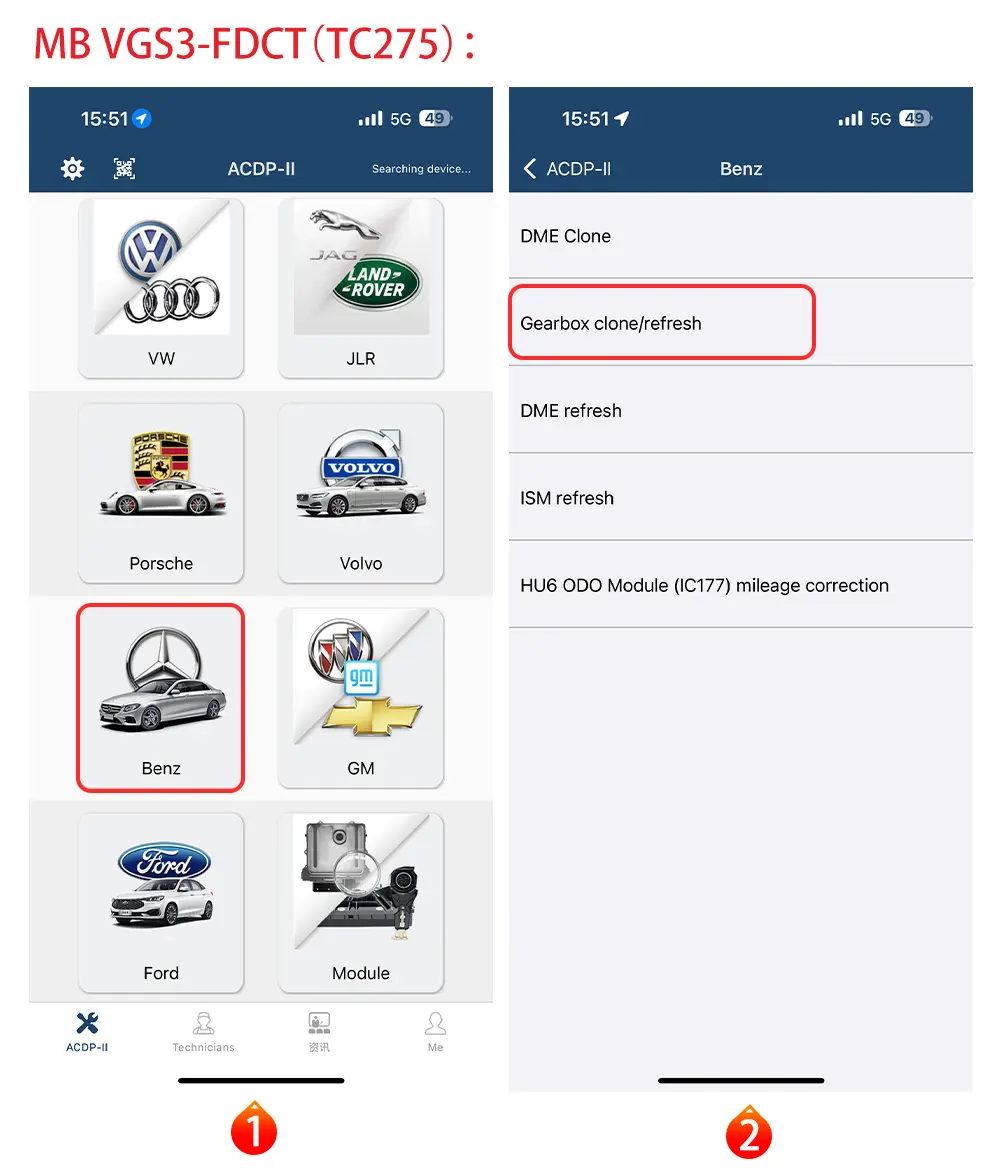

• Mercedes-Benz VGS3-FDCT TC275

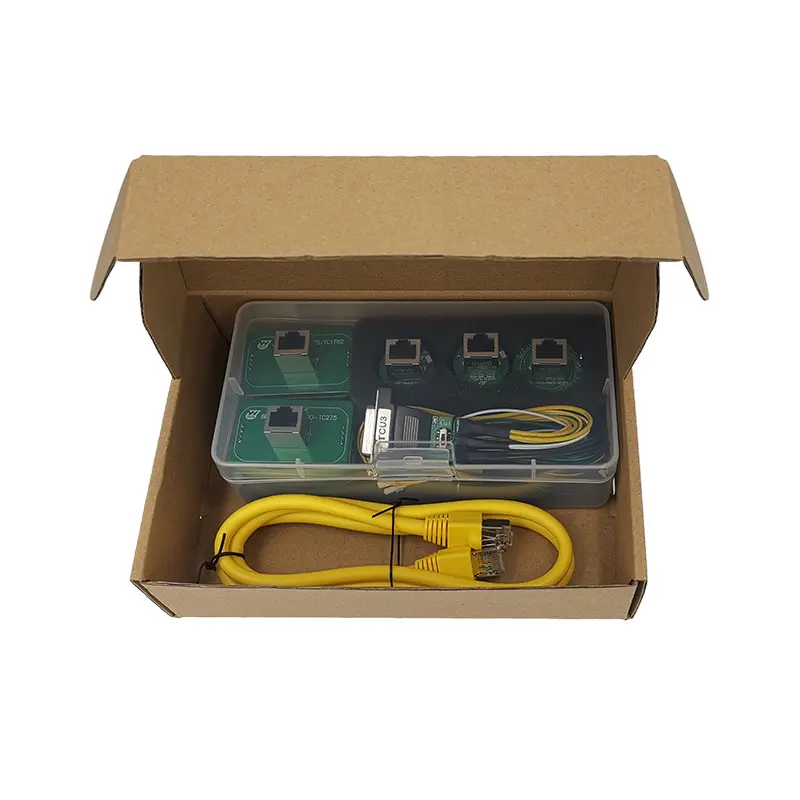

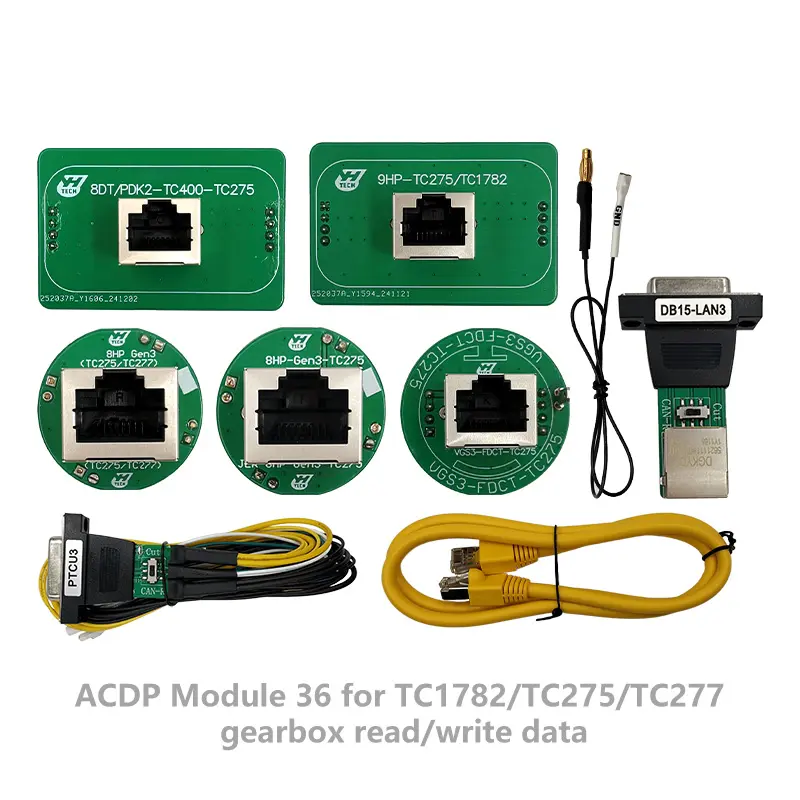

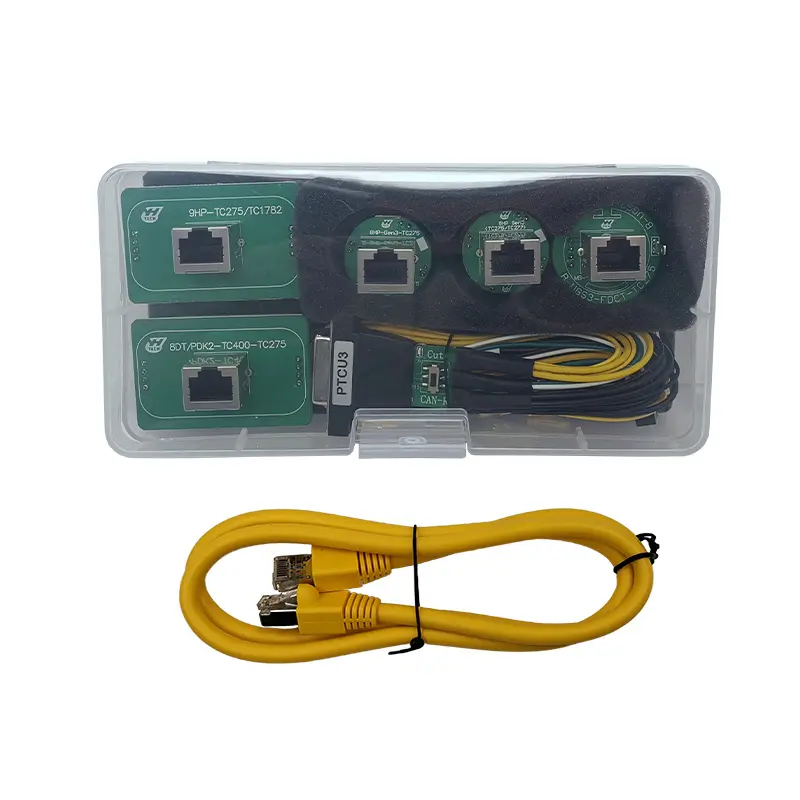

Configuration List:

Item	Adapter / Part	Pictures	Function	Quantity

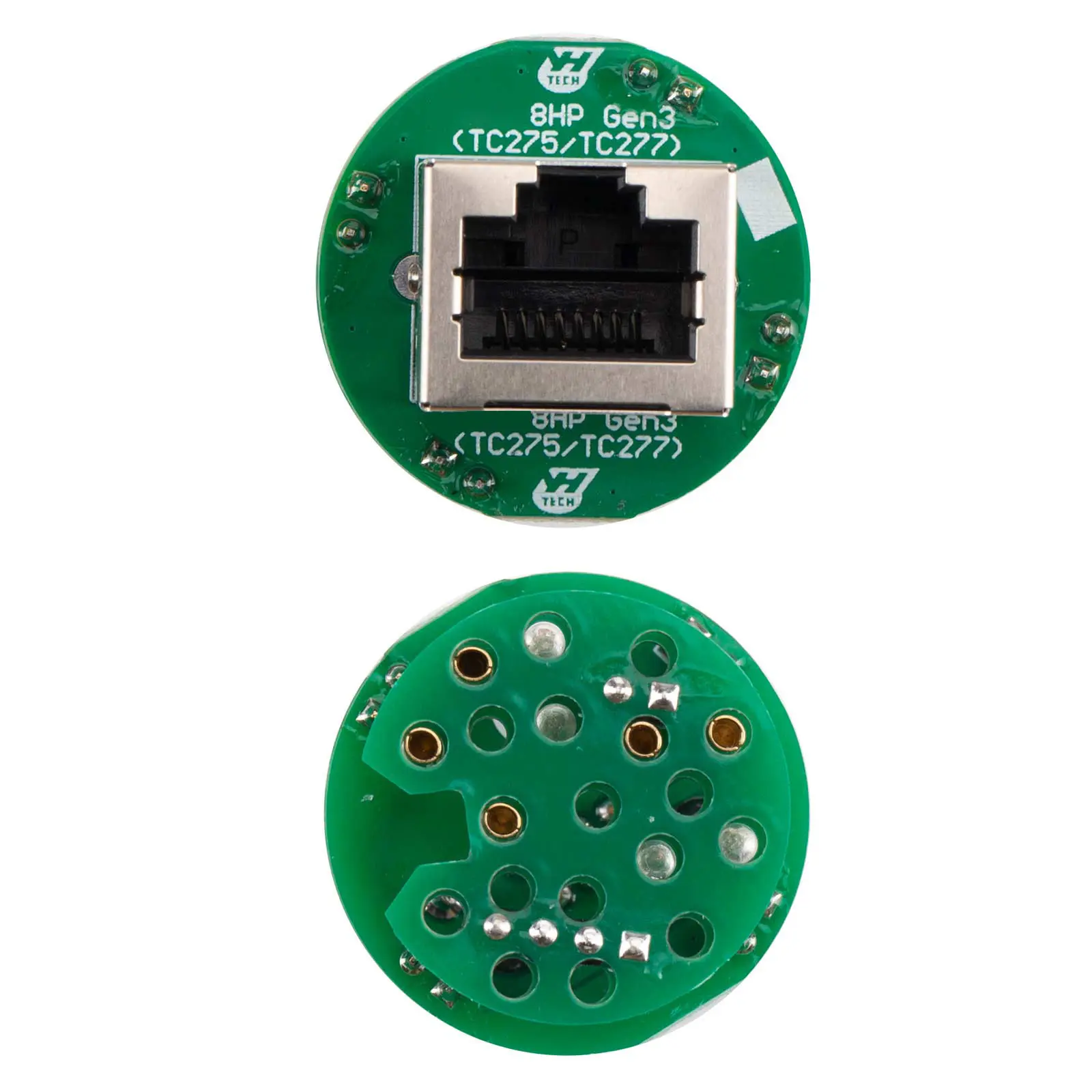

1	8HP Gen3 TC275/TC277 Interface Board		Connects BMW GEN3 8HP gearbox	1

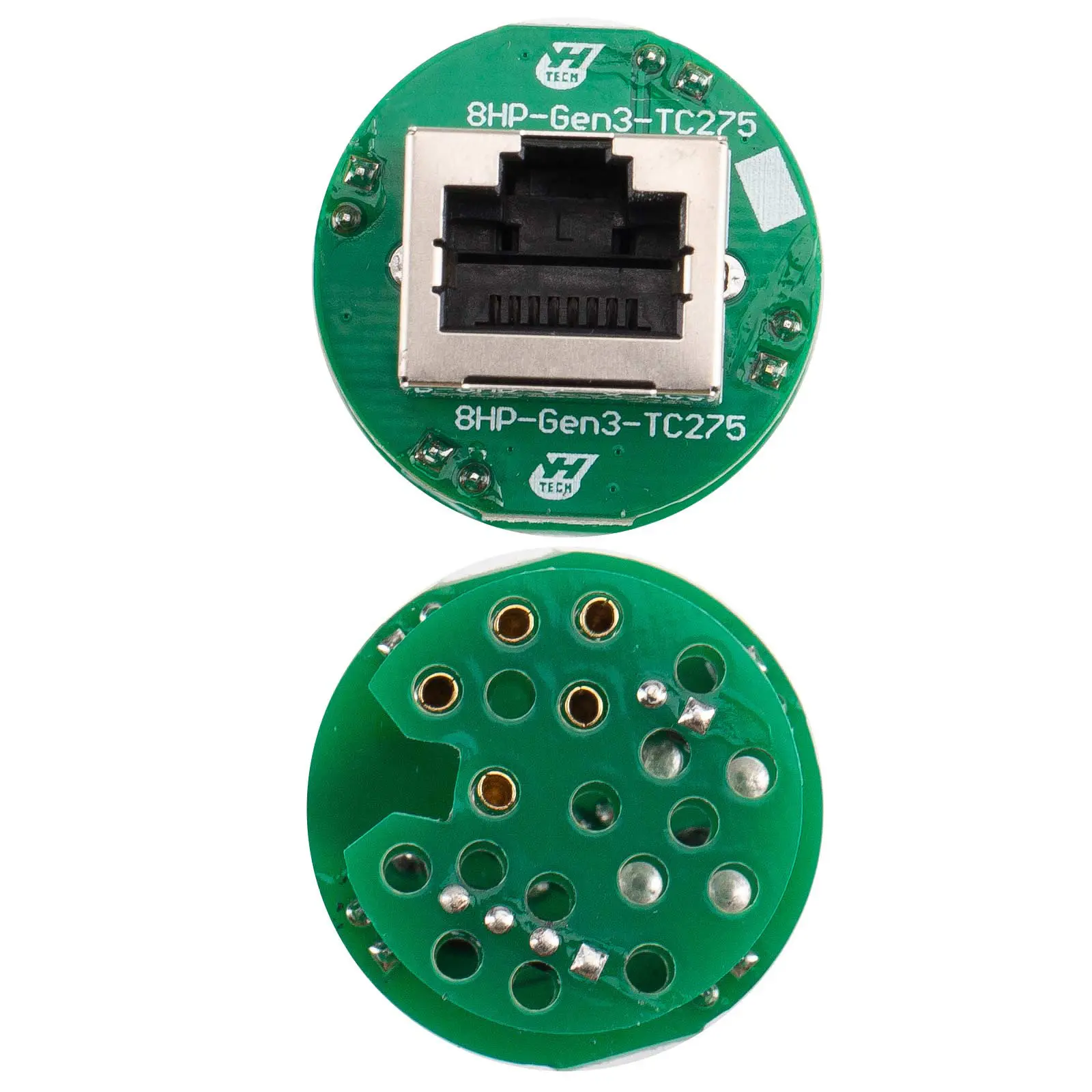

2	8HP Gen3 TC275 Interface Board		Connects JLR 8HP Gen3 TC275 gearbox	1

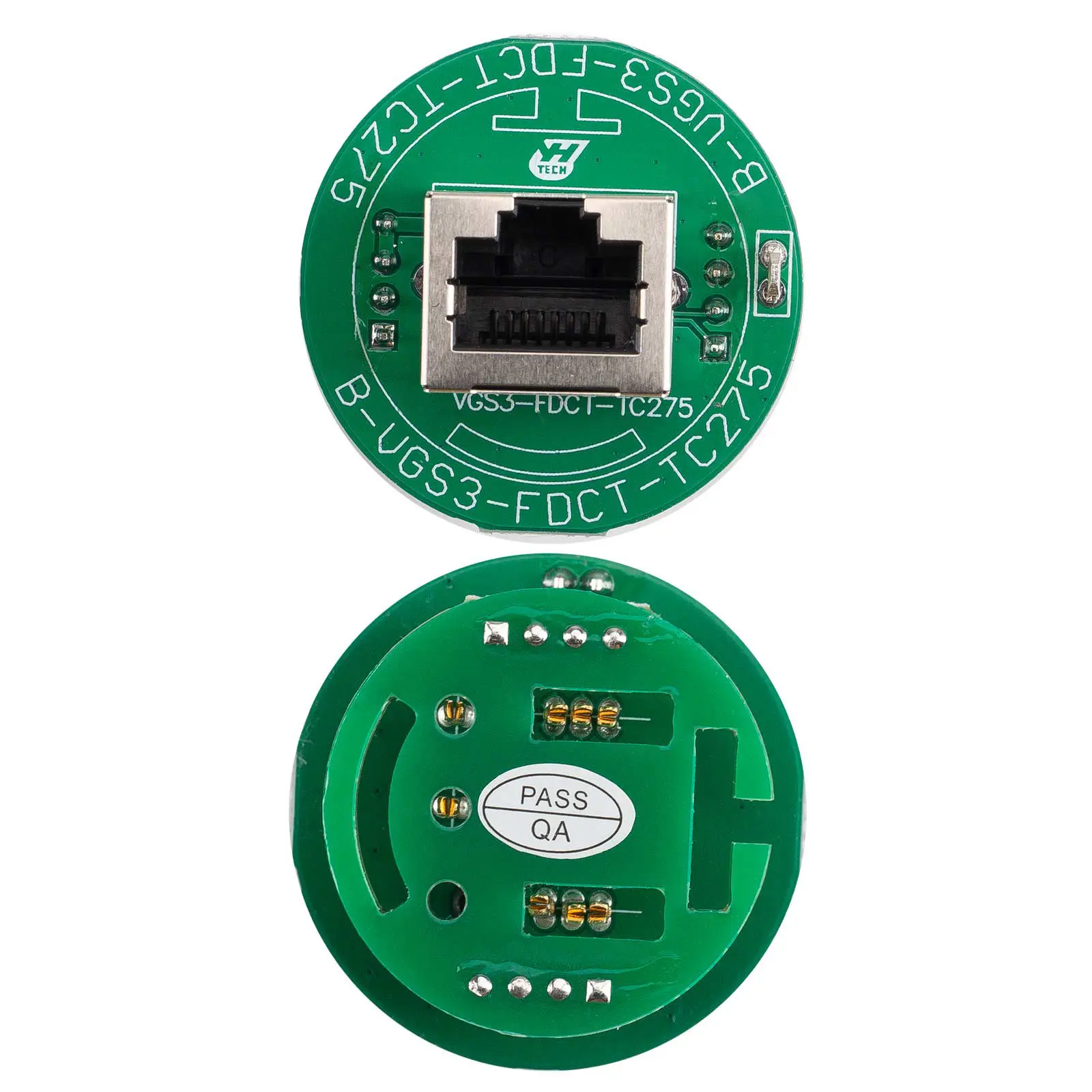

3	VGS3-FDCT TC275 Interface Board		Connects Mercedes-Benz VGS3-FDCT TC275 gearbox	1

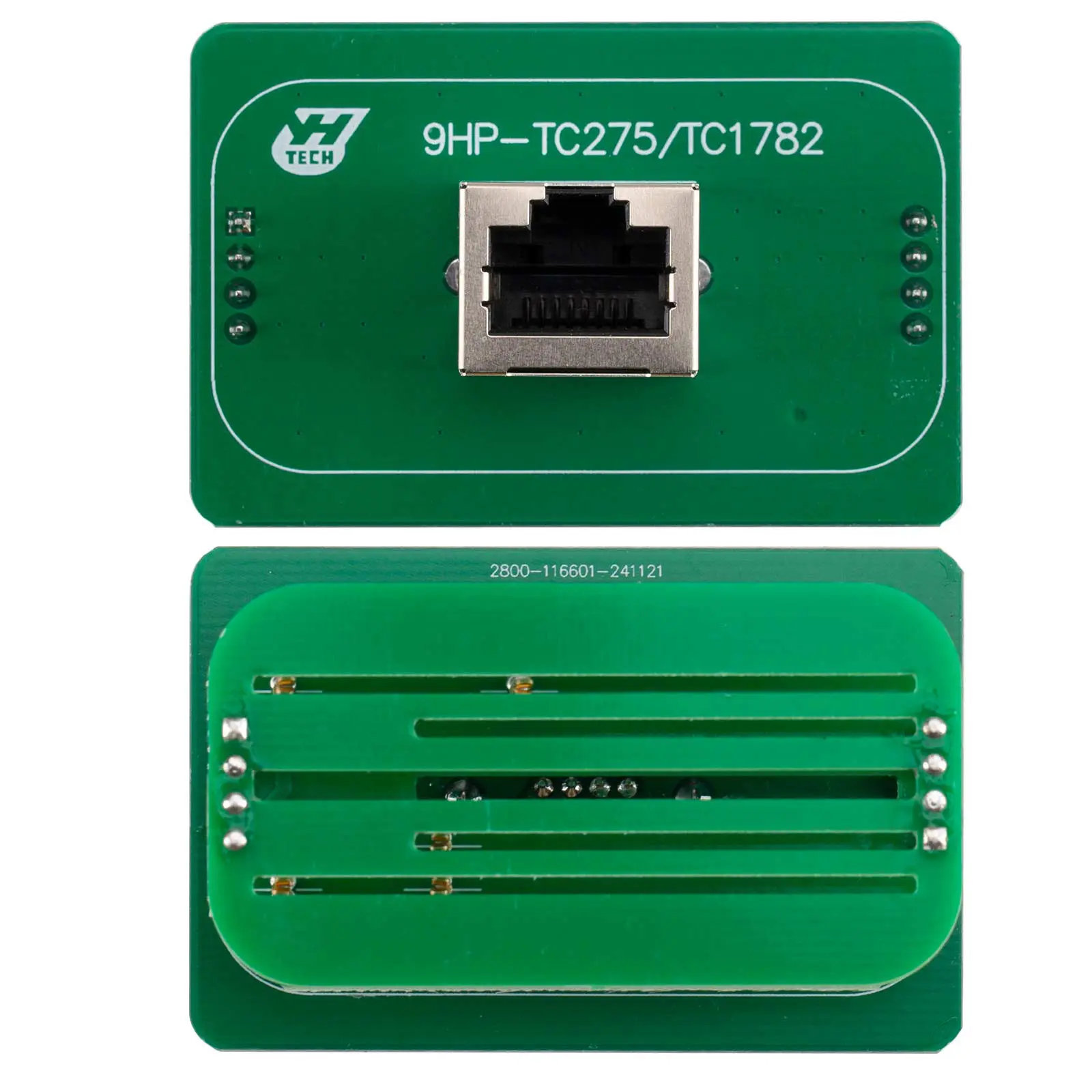

4	9HP TC275/TC1782 Interface Board		Connects JLR, Honda, Jeep, Chrysler, and other 9HP48/9HP50 gearboxes	1

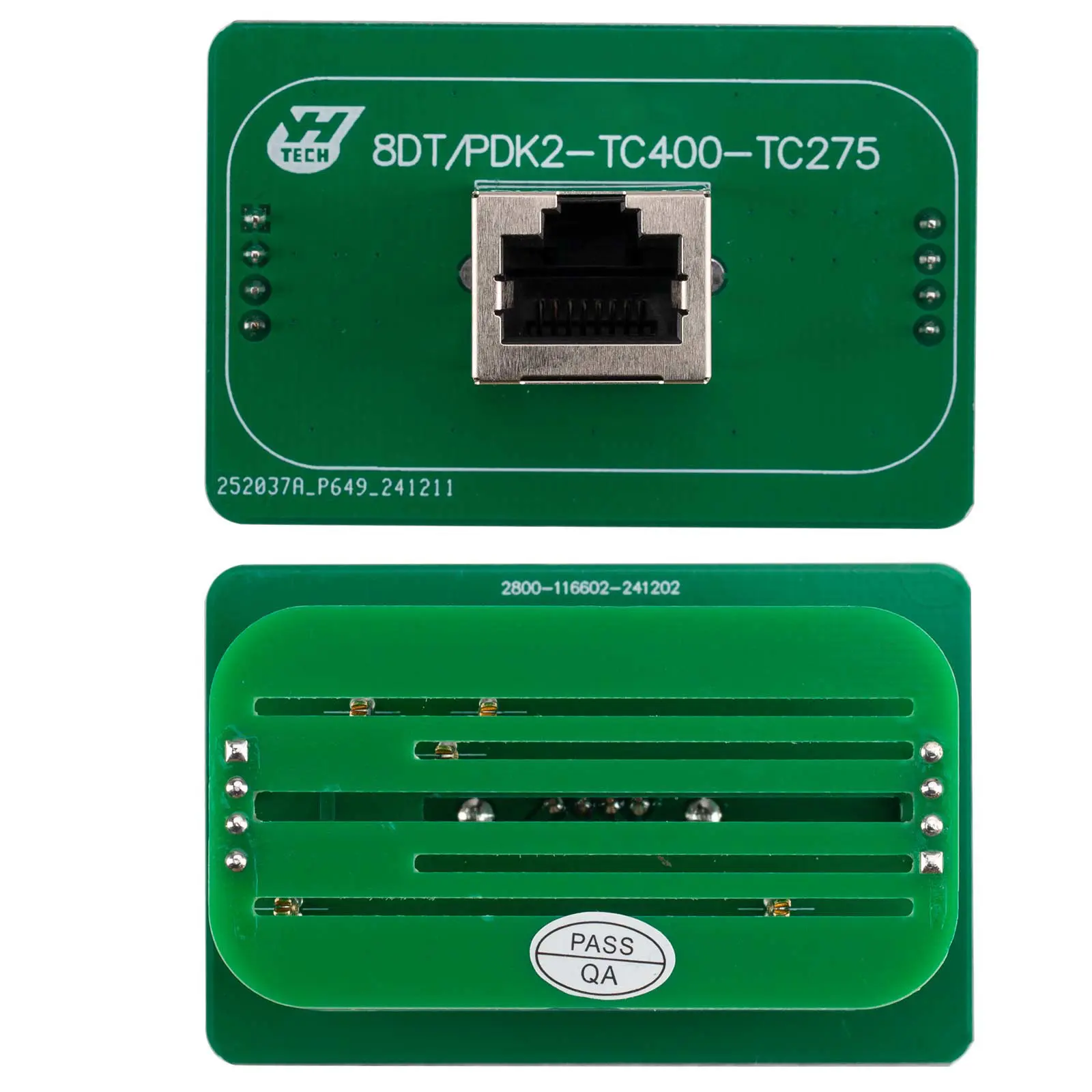

5	8DT/PDK2-TC400 TC275 Interface Board		Connects Porsche 8DT/PDK2-TC400 gearbox	1

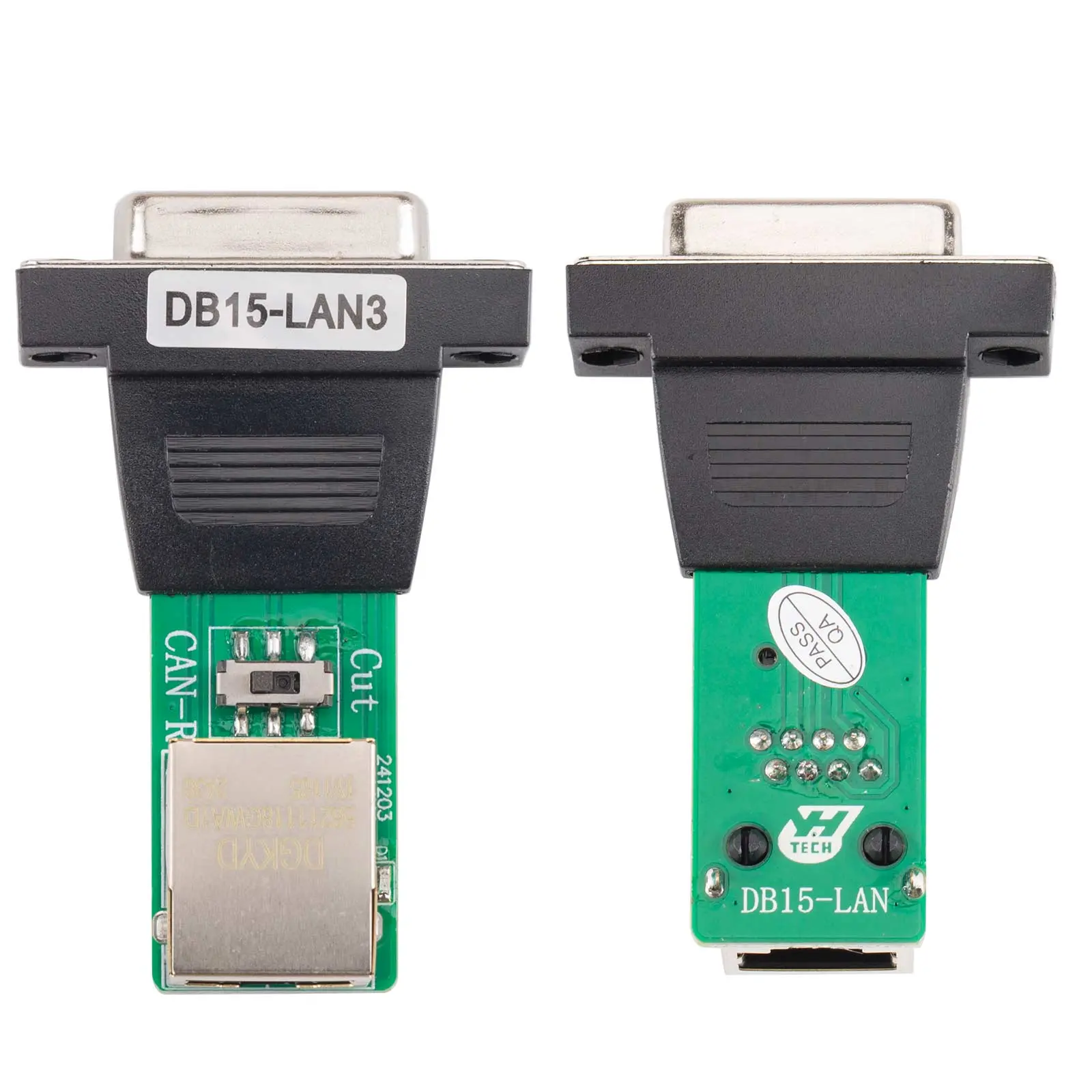

6	DB15-LAN3 Adapter		Connects ACDP host and TCU cable	1
7	TCU Cable		Connects PTCU adapter and interface board	1
8	PTCU3 Cable		Connects ACDP host and gearbox	1
9	GND Cable		Connects MB VGS3-FDCT gearbox GND	1
