Zenith-Z5 basic kit

Zenith-Z5 basic kit

Our diagnostic expertise has evolved into a new format.

We are excited to unveil our first automotive diagnostic scan tool in the Z series. With the combination of our extensive diagnostic software and a top-tier industrial tablet, the Z5 will provide you with unparalleled diagnostic confidence.

Fast Performance CPU A high-performance octa-core processor ensures optimal diagnostic efficiency and rapid operation, which is ideal for handling the demands of workshop environments.	Smart Operating System Powered by Android 9 OS, offering fast boot-up, seamless multitasking, speedy networking, and improved system security.	Eyellumicate™ 8” LCD The Eyellumicate™ LCD display delivers a crystal-clear view both indoors and outdoors, optimized for visibility in bright workshop conditions.
Eyellumicate™ Display Technology Eyellumicate™ Display technology improves touch sensitivity, enabling technicians to operate the device effectively while wearing work gloves, even in challenging workshop environments.	Service Function Diagnostic software designed by engineers with automotive technicians in focus. Regular and timely on-demand updates ensure the user has reliable and up-to-date diagnostic capabilities.	J2534 Pass-thru The Zenith Z5 operates as a J2534 ‘Pass-Thru’ device, enabling ECU programming across various vehicle models.
24V Commercial Vehicles The Zenith Z5 hardware is compatible with 24V power systems and supports bi-directional communication with commercial trucks and buses.	Wireless Connectivity The robust connectivity enables smart updates, rapid feedback, TeamViewer support, Bluetooth printing, browsing, and a range of additional features.	Pre & Post Diagnostic Report An intuitively designed diagnostic report feature simplifies and speeds up the creation of reports for pre- and post-scan results.

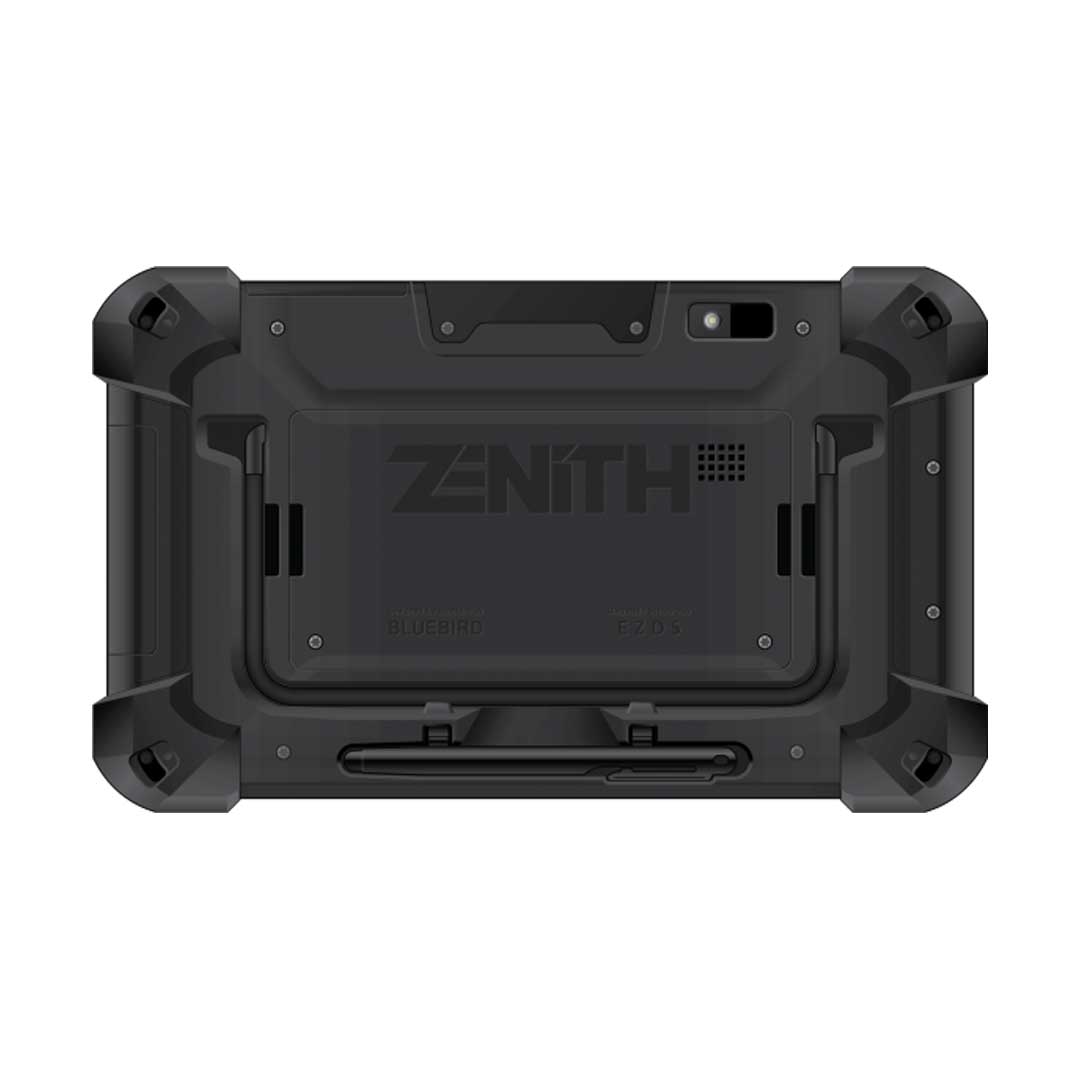

Lightweight, Robust Design Compact yet durable, the Zenith Z5 is ergonomically designed for comfortable one-handed use over extended periods. Weighing only 680 grams (1.5 lbs), it combines a sleek, rugged design with lightweight functionality.

Specification:

AC/DC Adapter:

Supported Communication Protocols:

CAN (High speed, Low speed, Single)

ISO-9141, ISO-9141-CARB, KWP-2000

SAE-J1708, SAE-J1587

J1850(PWM/VPW)

Melco Pull-Down

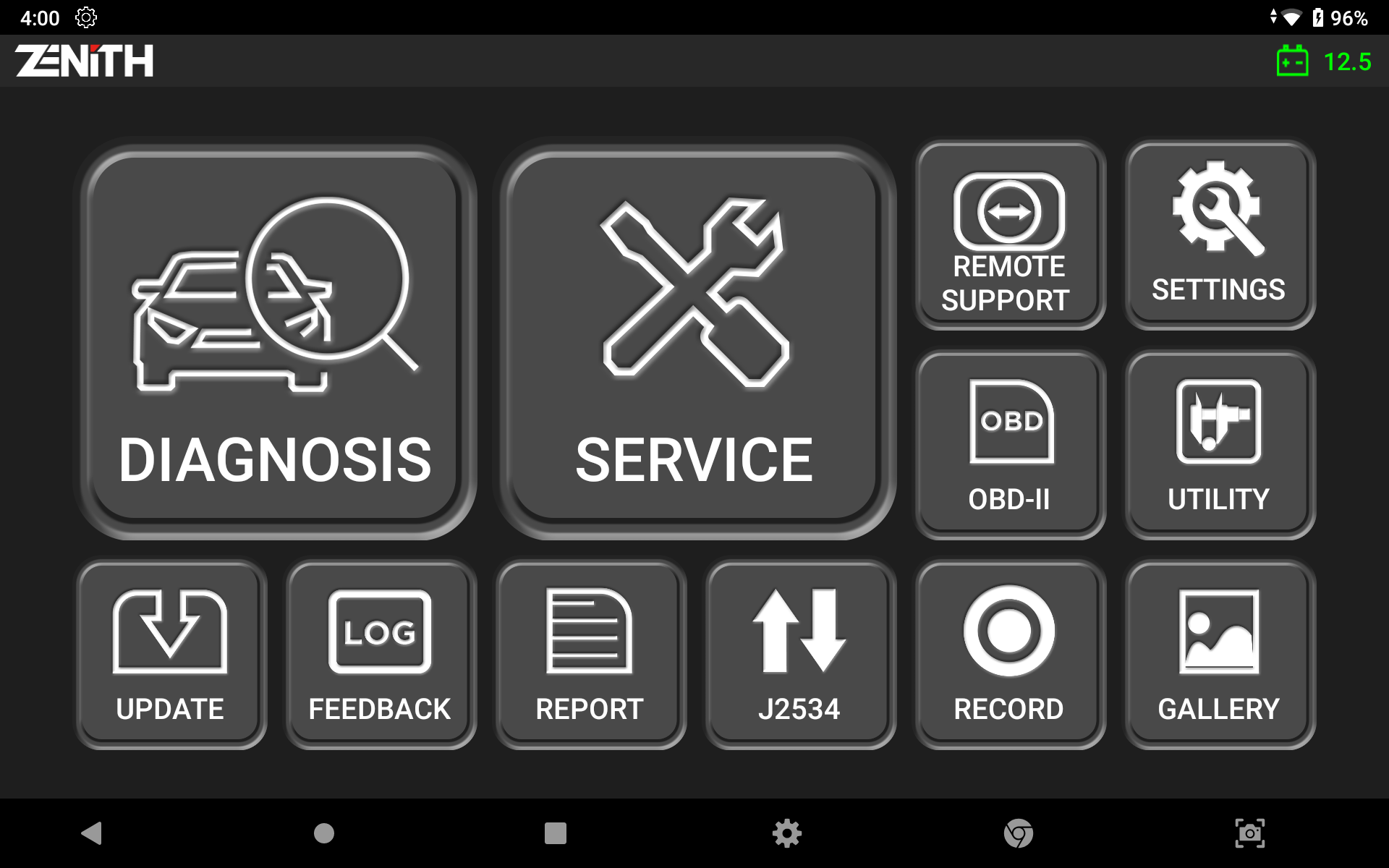

Simple, Yet Intuitive Layout

The Zenith Z5 features a straightforward, iconic main menu for quick and easy access to essential functions. It includes three display modes, allowing users to customize themes and button placements.

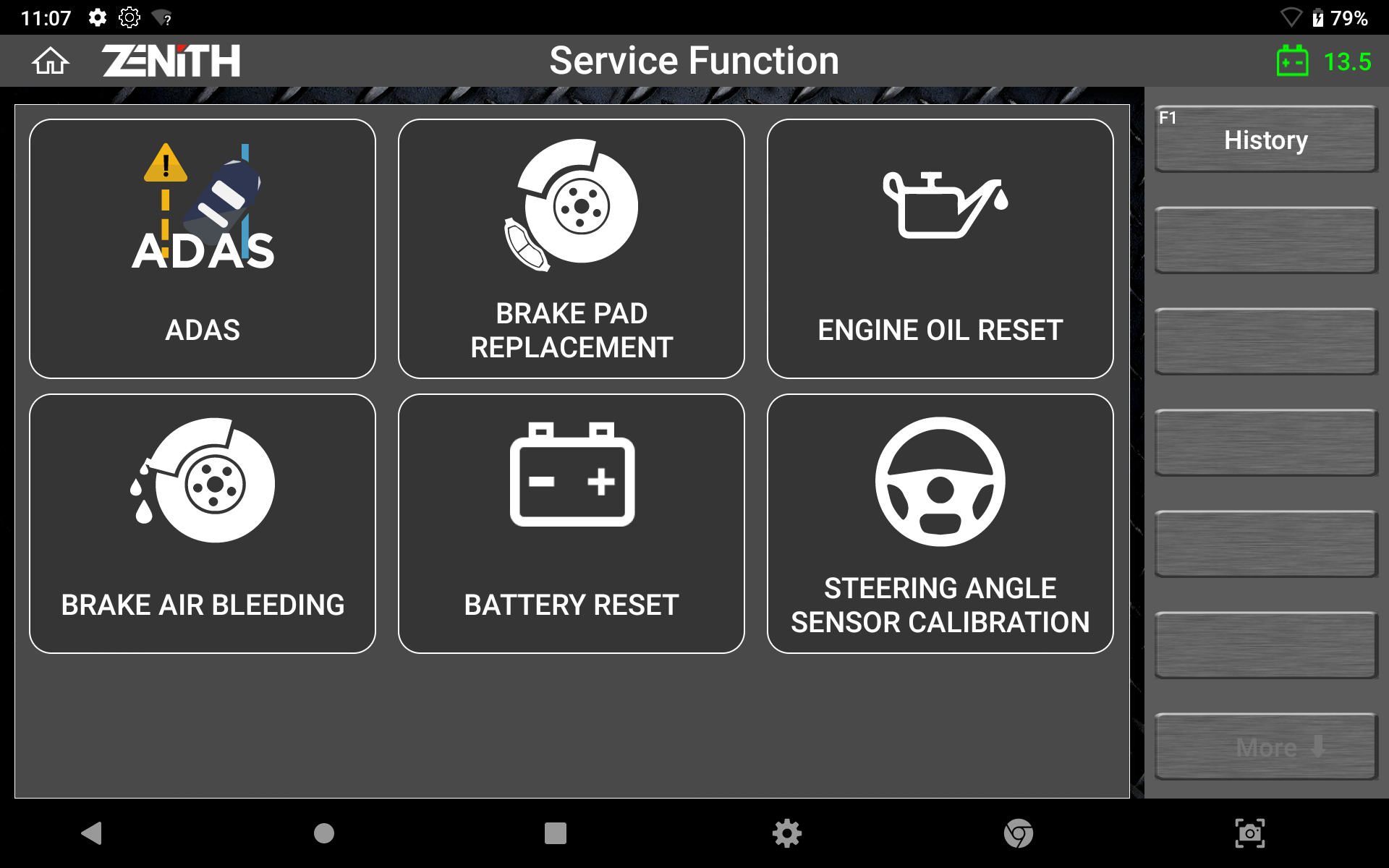

Service Function

Time is valuable. The Z5 provides shortcuts to frequently used functions, helping technicians save time by bypassing the original menu layout.

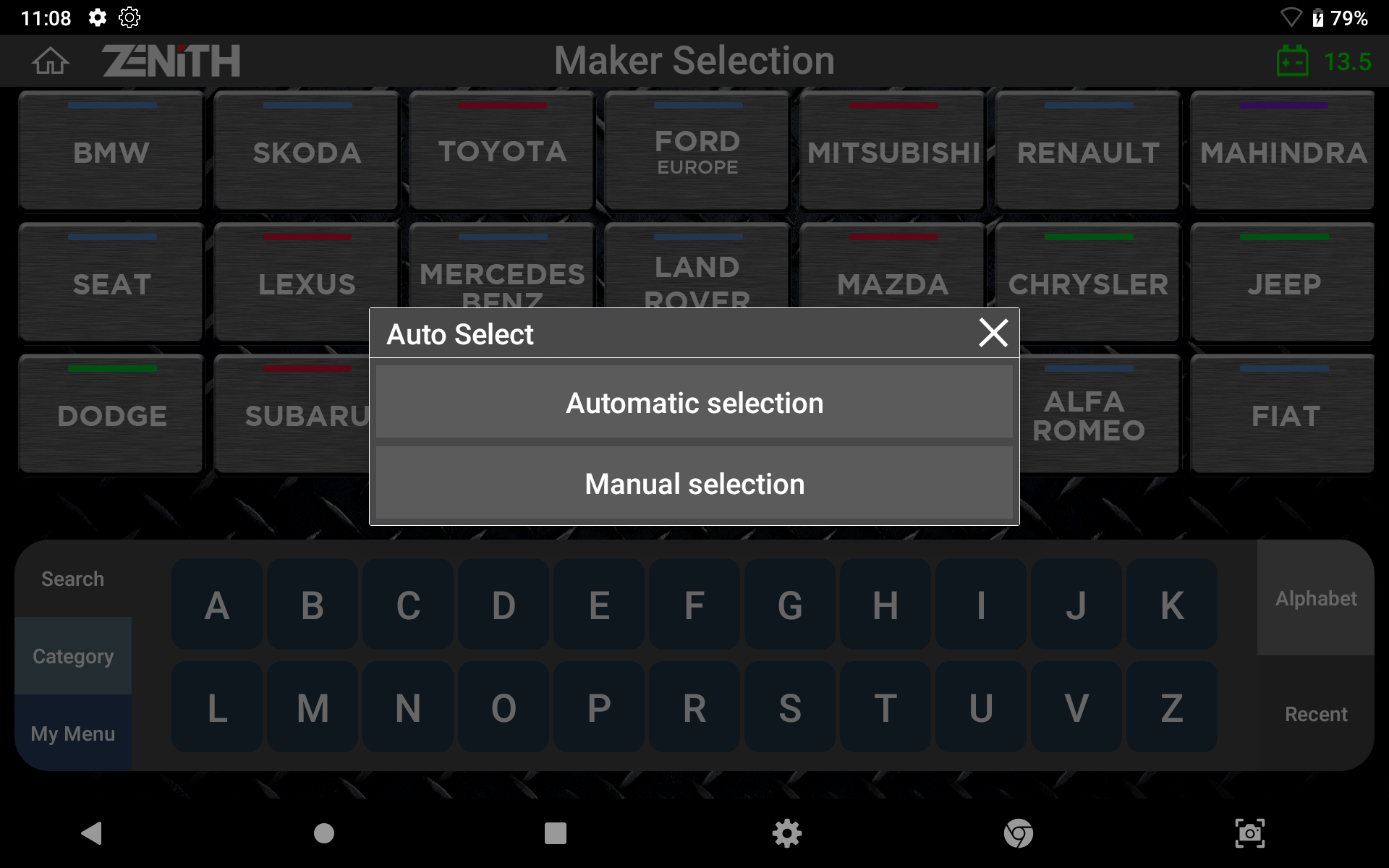

Auto Selection

The Zenith Z5 can automatically detect vehicle information, including the VIN number, model year, model name, engine type, and other essential details.

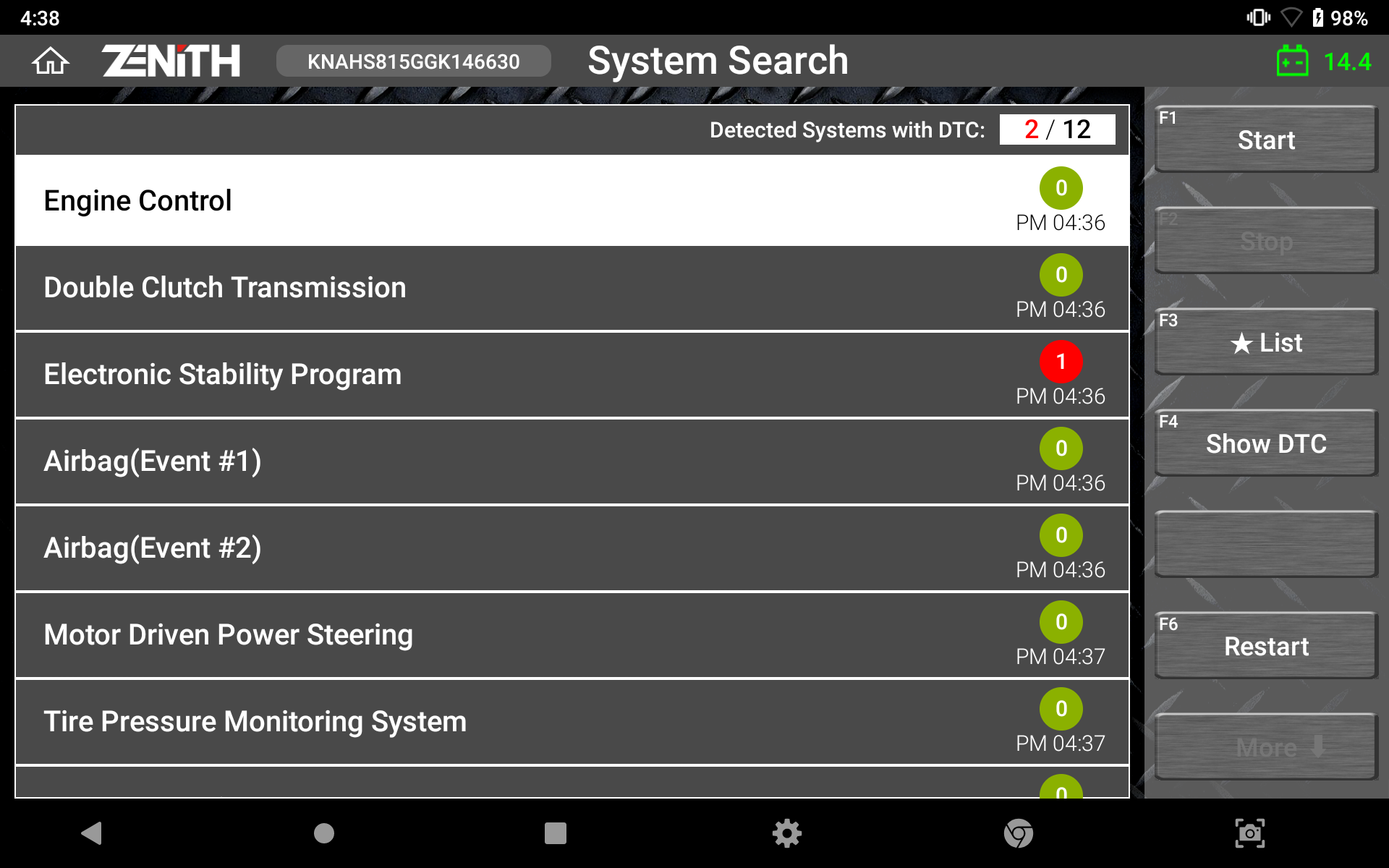

Quick System Search

The 'System Search' feature automatically scans all vehicle systems, reports fault codes, and offers access to advanced diagnostic functions for each detected system.

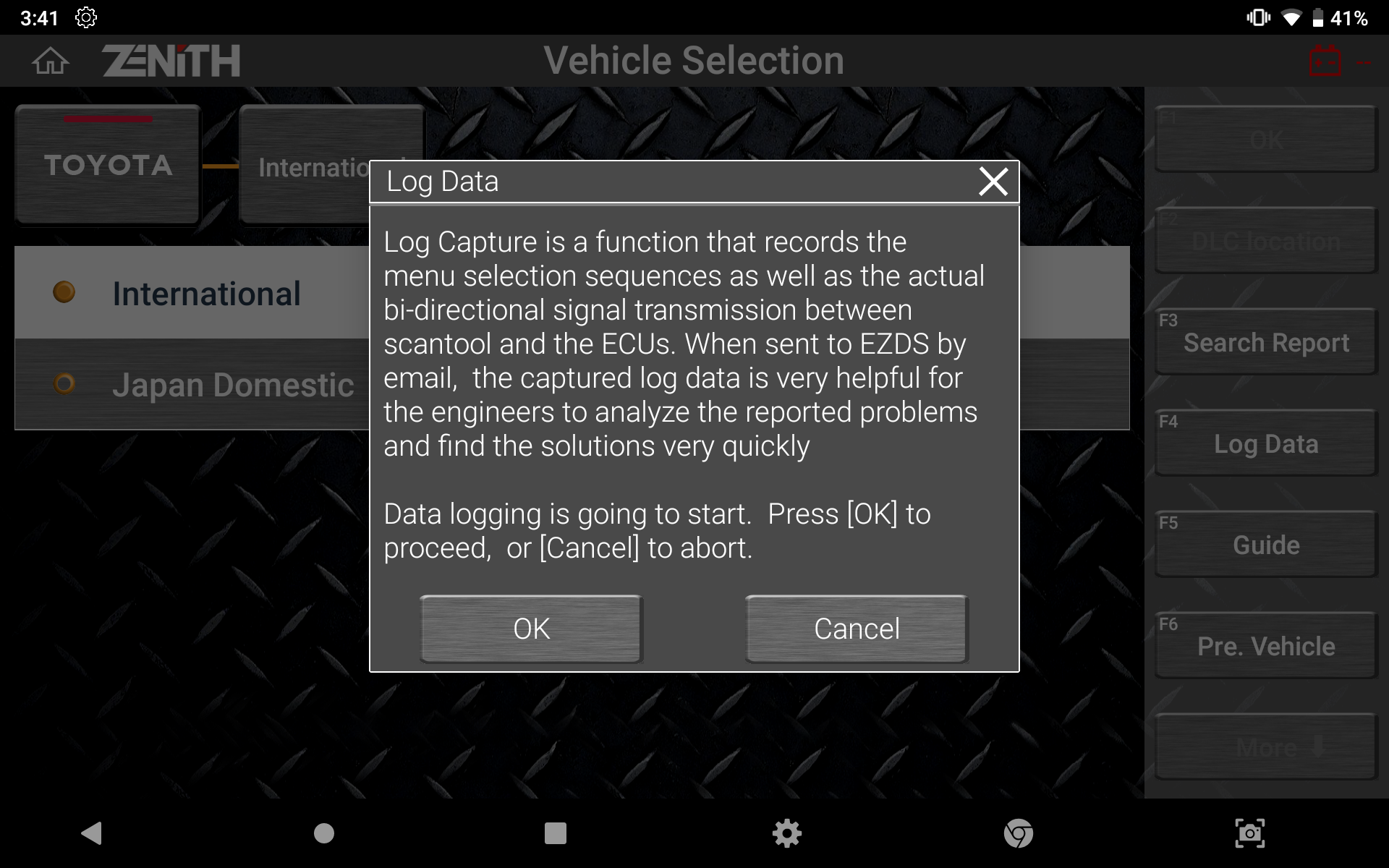

Data Log & Feedback System

In the event of a communication or function error, users can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the software development team using the log capture and transfer function. The received data log files will be analyzed, feedback will be provided, and if necessary, a patch file update will be delivered, often within 24 hours during working days (exceptions may apply).

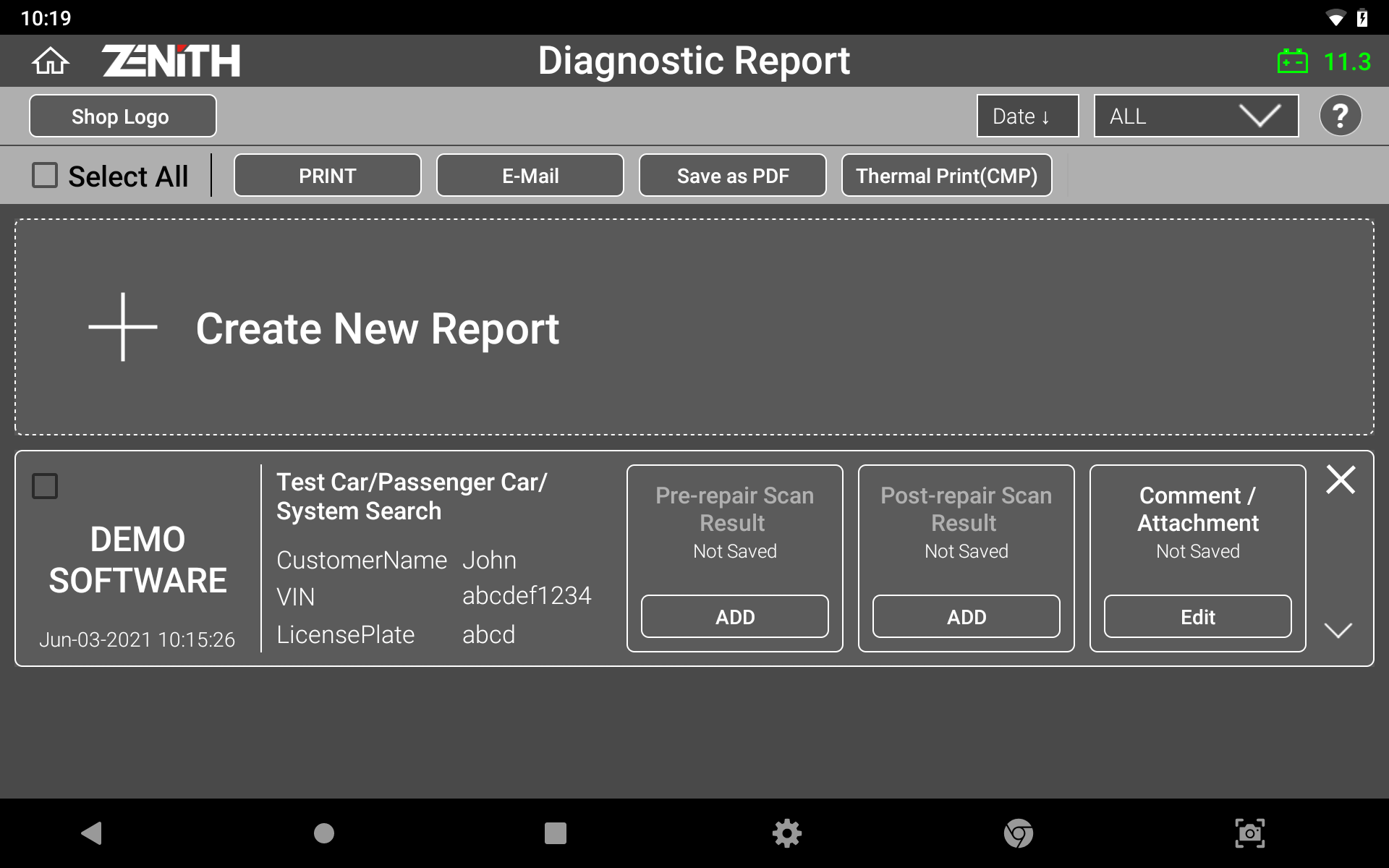

Pre & Post Diagnostic Report

The Z5 simplifies the creation of diagnostic reports with pre-scan and post-scan results. You can save these reports as PDF files on internal or external memory, and with its advanced network connectivity, you can print them directly to a wireless printer or send them to a desired email address.

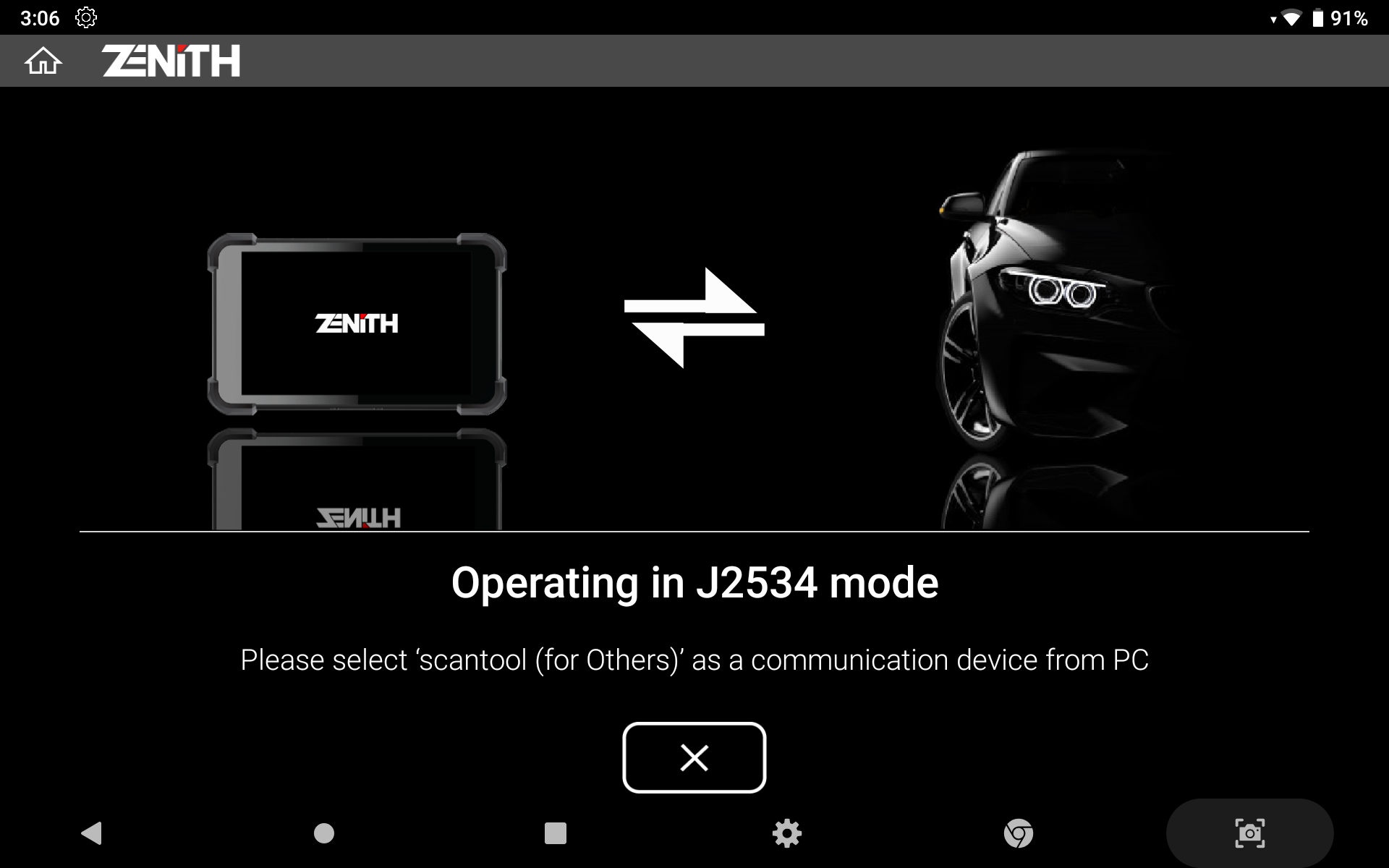

J2534 Pass-thru

The Zenith Z5 functions as a J2534 Pass-Thru device for various vehicle lines, supporting CAN-Bus, KWP2000, and ISO9141 protocols. It facilitates J2534 programming and diagnostics (with some exceptions).

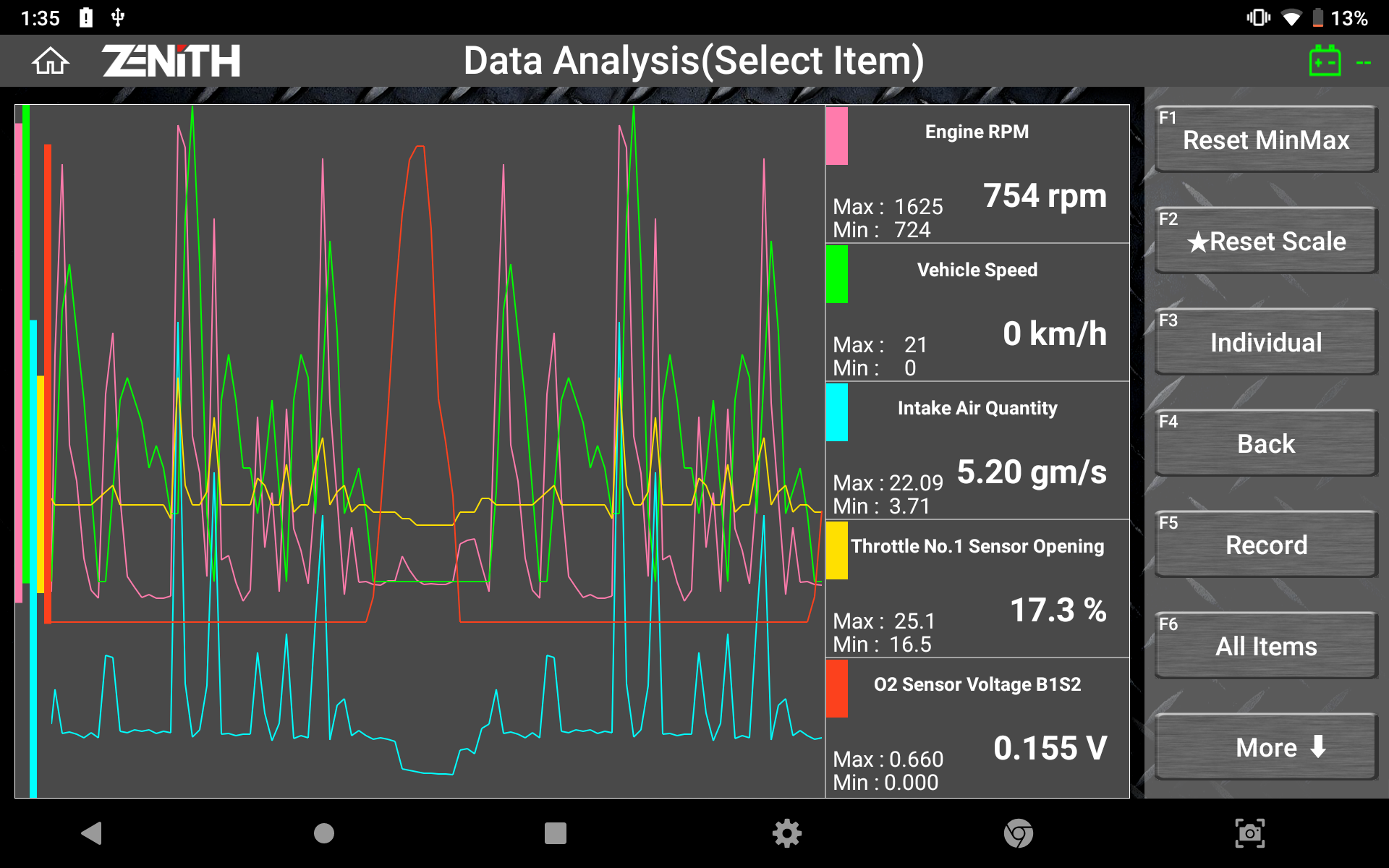

Fast & Responsive Graphing Mode

The Z5 features a quick and user-friendly graphing mode that automatically adjusts the maximum and minimum scale, allowing users to observe and compare live data more efficiently.

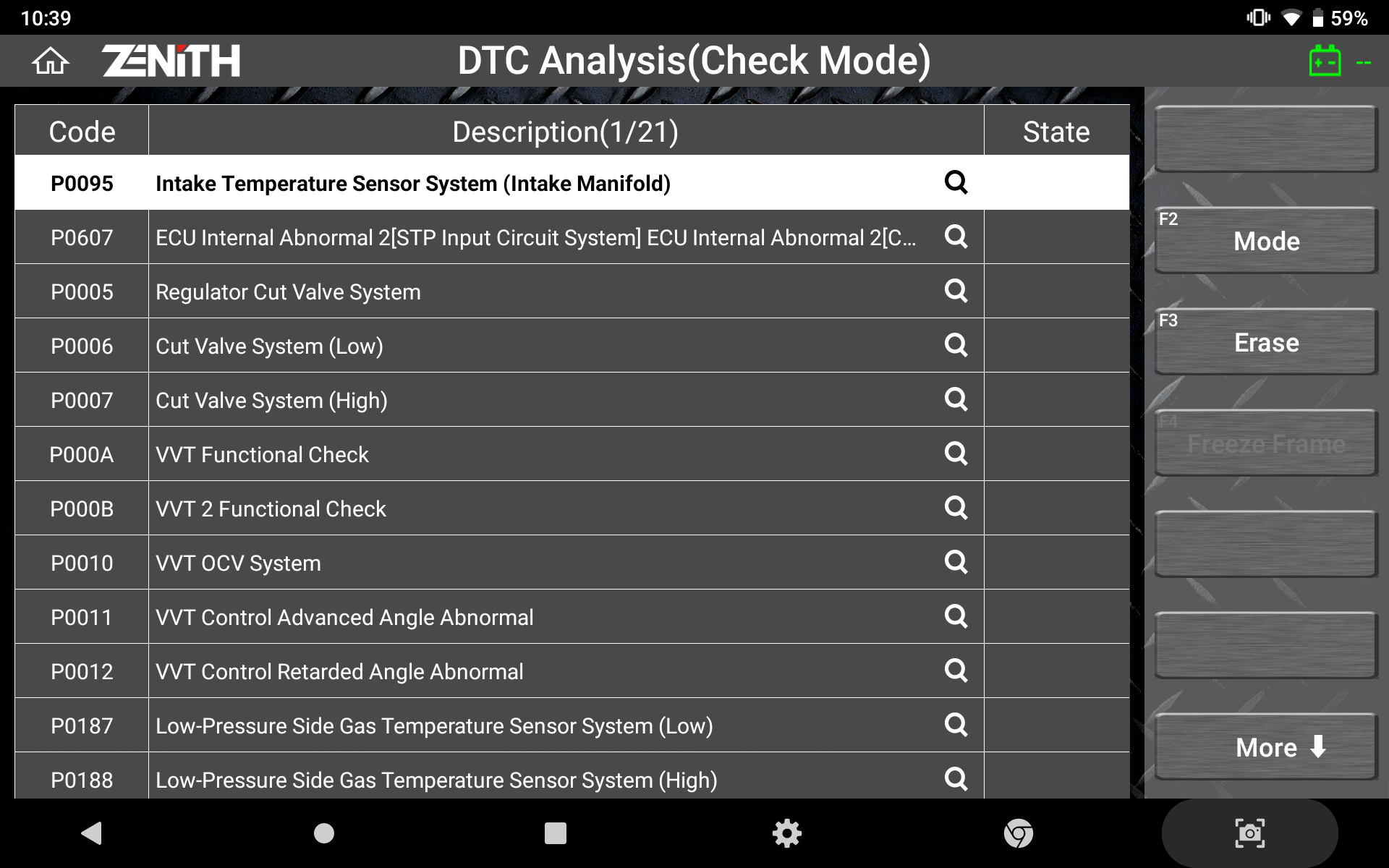

Full Text Description

No more acronyms or truncated text. The Z5 provides full-screen, detailed DTC descriptions, ensuring you have all the information you need.

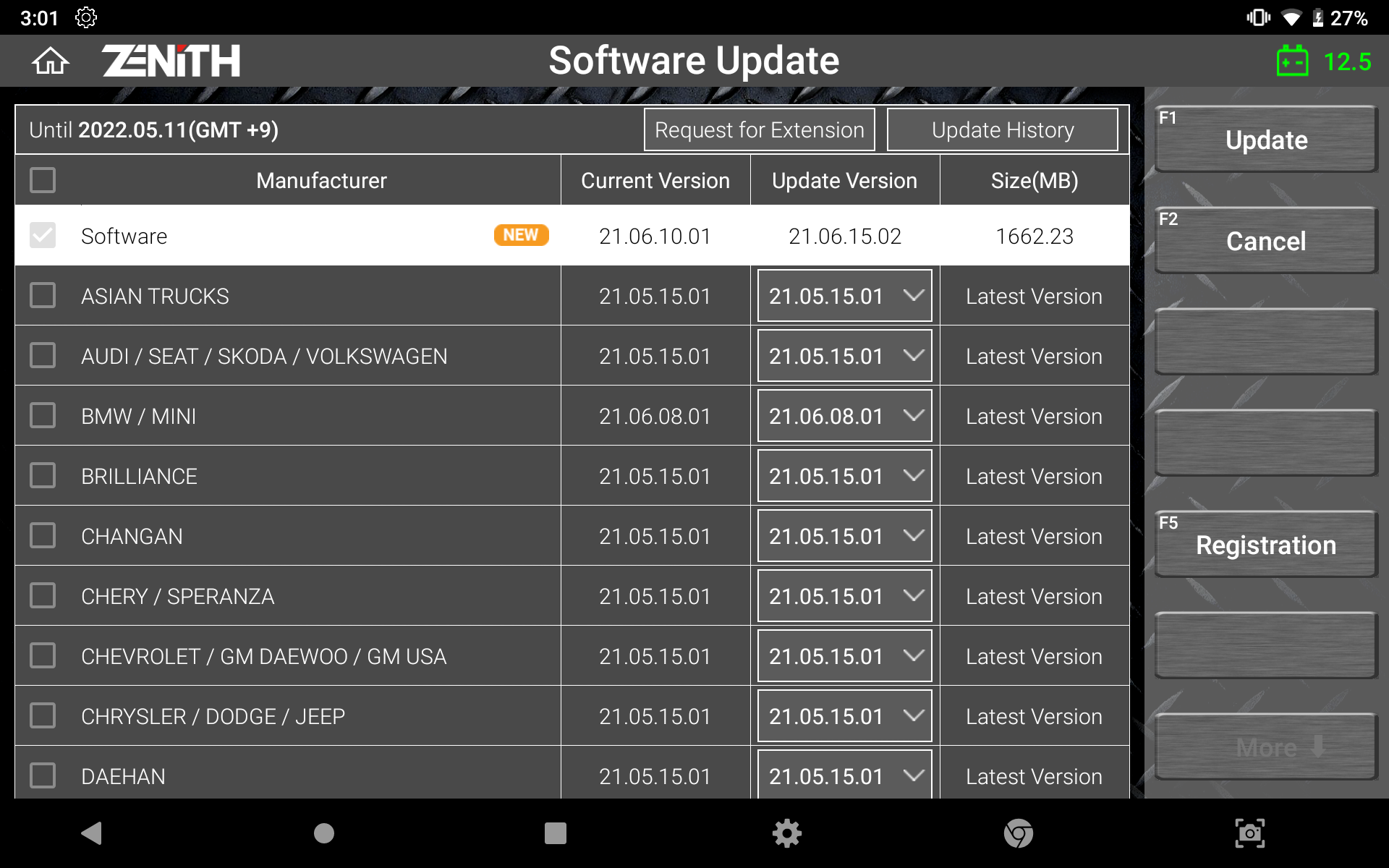

Smart Update

The Z5 provides a fast and straightforward software update process thanks to its robust network connectivity. Users can easily download previous or latest software versions for each carline directly from the server, based on their preference.

With the Zenith-Z5 Basic Kit at your disposal, there are no boundaries to what you can accomplish. Let precision guide you and excellence be your goal as you embark on a path of mastery and discovery. Enter a realm where craftsmanship merges with innovation, and experience peak performance with the Zenith-Z5 Basic Kit.
